104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety

104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety

Large Image :  104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Model Number: 104*123*25
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $12.00/pieces 20-199 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 200000 Piece/Pieces per Year
Contact Now

104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety

Description
Color: Red Material: Aluminium+PC
Application: Road Warning Product Name: LED Solar Road Stud
Name: LED Road Stud Size: 104*123*23mm
Type: Road Cone Sign Feature: High Reflection
Keywords: Road Safety Stud LED Color: Red, Blue, Yellow, White, Green
Port: Qingdao, Tianjin Port, China

Products Description
Road studs are traffic reflectors for the highway, they are also known as raised road signs.
They are a kind of traffic safety product that is mainly installed in the middle of the road marking line or the middle of the
double yellow line to remind the driver to drive according to the lane through its reverse reflection performance. The
specifications of the spike are generally 136mm*50mm.

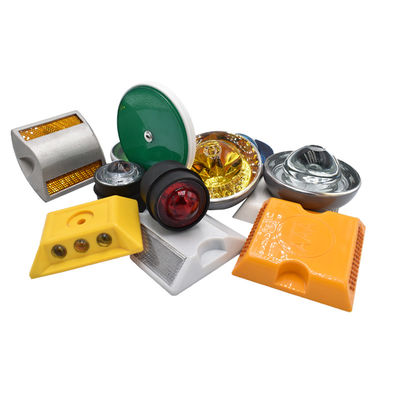

There are a variety of reflectors, studs, reflective beads, LED light, reflective film and so on.
According to the material they are made with they can be divided into:
1. Cast aluminum road studs;
2. Plastic road studs;
3. Glass road studs;
5. Solar road studs;
Solar studs are widely used for controlling traffic flow with a wide number of different applications. There are a number of well known and widely accepted colors, with lights in particular orientations to make the message to a driver clear and univocal, thereby improving the traffic flow of the road and enhancing safety aspects. The new designed and patent solar stud could stand the pressure of 30 Tons allowing cars to drive on the solar led marker lights directly.
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 0
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 1
Solar road stud is a kind of stud, which is set along the road surface and used at night or in rain or fog to indicate the direction of the road. It is composed of reverse reflection material, shell, solar panel, LED and control device. It is a visual induction facility with active luminescence and passive reflection performance, which is usually used in combination with the marking line. The working principle of solar energy road stud is that the solar panels absorb sunlight during the day, the solar energy is converted into electrical energy, and it is then stored in the storage devices (batteries or capacitors). In the evening, the electricity is automatically converted into light energy (through the photoelectric switch control), through the LED light path outline which induce the driver's line of sight.
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 2
Details Images
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 3
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 4
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 5

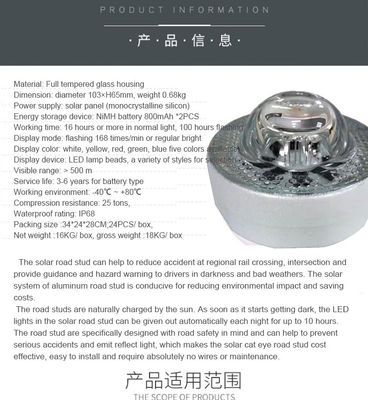

Product Paramenters
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 6
Specification parameters:
Size: 100 * 62 mm, 0.7kg/piece
Technical parameters:
 1. Energy storage element: Rechargeable battery 1.2V/ 600mAh Ni-MH high-temperature battery charge and discharge times >1000 times, the capacity is not easy to drop, the battery life is three years;
2. Solar cell: (monocrystalline silicon) 2.5V/ 120mAh
3. Working time: Under standard light intensity, it can work continuously for more than 240 hours for 30 hours at a time;
4. Display mode: flashing (default: 2Hz, customizable), or straight bright, one side or two sides;
5. Display device:Φ5 ultra bright anti-fog LED, LED lamp bead color can be customized
6. Display colors: red, yellow, white, blue and green, etc. Visual distance: greater than 500M;
7. Material: Tempered glass
8. Starting light intensity: positive light is less than 500Lux;
9. Working environment: -20℃ ~ 70℃;
10. The installation is embedded/ buried lamp.
11. Water proof grade: IP68
LED road stud is an active road safety device fixed on the road for marking and depicting night visibility. It is a
separate device module with solar energy, batteries, LEDs and electronics designed to switch between dusk and flash automatically on all night to provide drivers with sufficient vision and advance warning on the road. Unlike passive reflective cat's eyes, the effectiveness of LED cat's eyes does not depend on the intensity and range of the vehicle's headlights. Instead, free solar energy is used to operate leds that flash all night, providing remote visibility and providing guidance and warning to road users to improve road driving safety.
Product packaging
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 7
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 8
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 9
Why Choose Us
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 10
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 11
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 12
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 13
Company Profile
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 14
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 15
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 16
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.
Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.
Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 17
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 18
Installation Instructions
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 19
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 20
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 21
104*123*23mm Road Cone Sign Solar LED Road Stud for Glass Cat Eye Road Safety 22
FAQ
1.Q:Are you a factory or trading company?
A:We are factory which has been in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples. Please send a sample inquiry and leave us your email address, then we will send you more information about the samples for your reference.

4.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
