High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning

High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning

Large Image :  High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Model Number: 104*123*25
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $15.00/pieces 200-1999 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 200000 Piece/Pieces per Year
Contact Now

High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning

Description
Material: Aluminium+PC Color: Red
Application: Road Warning Product Name: LED Solar Road Stud
Type: Road Cone Sign Name: LED Road Stud
Size: 104*123*23mm Keywords: Road Safety Stud
Feature: High Reflection LED Color: Red, Blue, Yellow, White, Green
Highlight:

cast reflection solar stud

,

aluminum reflection solar road stud

,

reflection solar road stud

Products Description
Road studs are traffic reflectors for the highway, they are also known as raised road signs.
They are a kind of traffic safety product that is mainly installed in the middle of the road marking line or the middle of the
double yellow line to remind the driver to drive according to the lane through its reverse reflection performance. The
specifications of the spike are generally 136mm*50mm.

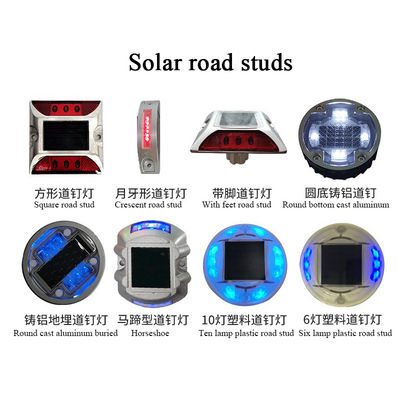

There are a variety of reflectors, studs, reflective beads, LED light, reflective film and so on.
According to the material they are made with they can be divided into:
1. Cast aluminum road studs;
2. Plastic road studs;
3. Glass road studs;
5. Solar road studs;
Solar studs are widely used for controlling traffic flow with a wide number of different applications. There are a number of well known and widely accepted colors, with lights in particular orientations to make the message to a driver clear and univocal, thereby improving the traffic flow of the road and enhancing safety aspects. The new designed and patent solar stud could stand the pressure of 30 Tons allowing cars to drive on the solar led marker lights directly.
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 0
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 1
Solar road stud is a kind of stud, which is set along the road surface and used at night or in rain or fog to indicate the direction of the road. It is composed of reverse reflection material, shell, solar panel, LED and control device. It is a visual induction facility with active luminescence and passive reflection performance, which is usually used in combination with the marking line. The working principle of solar energy road stud is that the solar panels absorb sunlight during the day, the solar energy is converted into electrical energy, and it is then stored in the storage devices (batteries or capacitors). In the evening, the electricity is automatically converted into light energy (through the photoelectric switch control), through the LED light path outline which induce the driver's line of sight.
This cast aluminum reflective solar road stud battery has a life span of more than 10 years. The IP68, has a larger solar panel charging area, it has a 30% higher charging efficiency. It is more suitable to in bed it in the road stone such as vehicle pressure does not fall.
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 2
Details Images
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 3
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 4
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 5
Product Paramenters
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 6
Specification parameters:
Size: 136 * 50 mm
Technical parameters:
1. Energy storage element: Rechargeable battery 1.2V/ 600mAh Ni-MH high-temperature battery charge and discharge times >1000 times, the capacity is not easy to drop, the battery life is three years;
2. Solar cell: (monocrystalline silicon) 2.5V/ 120mAh
3. Working time: Under standard light intensity, it can work continuously for more than 72 hours for 8 hours at a time;
4. Display mode: flashing (default: 2Hz, customizable), or straight bright, one side or two sides;
5. Display device:Φ5 ultra bright anti-fog LED, LED lamp bead color can be customized

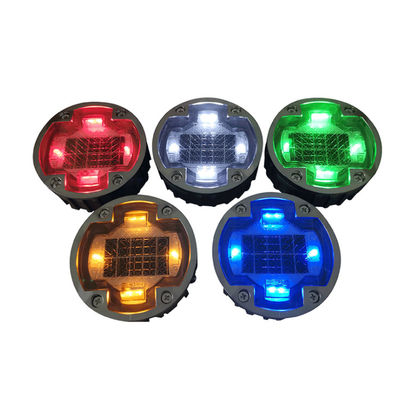

6. Display colors: red, yellow, white, blue and green, etc. Visual distance: greater than 1000M;
7. Material: cast aluminum alloy shell + bulletproof PC
8. Starting light intensity: positive light is less than 500Lux;
9. Working environment: -20℃ ~ 70℃;
10. The installation is embedded/ buried lamp.
LED road stud is an active road safety device fixed on the road for marking and depicting night visibility. It is a
separate device module with solar energy, batteries, LEDs and electronics designed to switch between dusk and flash automatically on all night to provide drivers with sufficient vision and advance warning on the road. Unlike passive reflective cat's eyes, the effectiveness of LED cat's eyes does not depend on the intensity and range of the vehicle's headlights. Instead, free solar energy is used to operate leds that flash all night, providing remote visibility and providing guidance and warning to road users to improve road driving safety.
Product Features:
Cast aluminum alloy shell refers to the internal filling material which the shell it is made of. The cost of such a spike is lower than all cast aluminum, but at the same time the compressive strength is not so high. It is generally known as cast aluminum spike or cast aluminum filled road stud.
The stud formed has a carrying capacity of more than 20 tons.
Charged continuous flicker for 200H or constant brightness for 40H.
it has strong waterproof ability, solar panels, electronic components and LED through special technology sealed in the shell, long-term water road can be used normally.
Efficient import of monocrystalline silicon solar panels, the conversion rate can be as high as 17%.
Service life: 3-5 years.
It is easy to install by embedding.


Product packaging
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 7
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 8
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 9
Why Choose Us
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 10
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 11
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 12
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 13
Company Profile
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 14
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 15
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 16
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 17
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 18
Installation Instructions
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 19
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 20
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 21
High Reflection Solar Road Stud Cast Aluminum Embedded For Road Warning 22
FAQ
1.Q:Are you a factory or trading company?
A:We are factory which has been in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples. Please send a sample inquiry and leave us your email address, then we will send you more information about the samples for your reference.

4.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
