Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety

Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety

Large Image :  Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $50.00/pieces 20-199 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 12000 Piece/Pieces per Year
Contact Now

Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety

Description

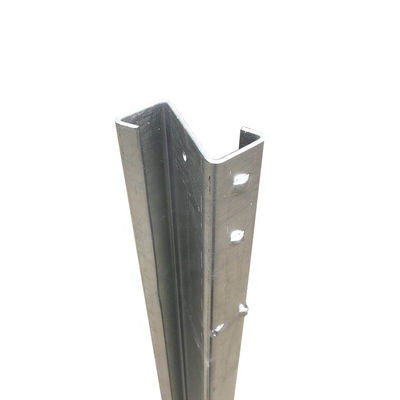

Product Name: Z Post Of Guardrail Material: Q235(SJ235R)
Application: Roadway Safety Surface Treatment: Outdoor Security
Certificate: Hot Dipped Galvanized Feature: Z Post
Keyword: High Durable Standard: Highway Guardrail Post
Packing: ISO9001:2000 Usage: AASHTO M-180
Port: Qingdao, Tianjin Port, China

Products Description

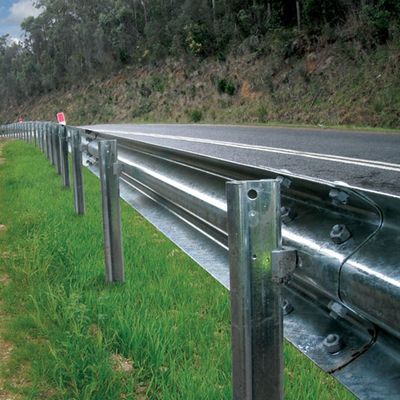

Z guardrail post is is commonly used in Australia

Introducing Z guardrail post, a member of the highway guardrail family, the next generation steel guardrail barrier providing superior motorist safety and more metres of barrier for your dollar.
Z guardrail post is crash tested to the latest performance standard distinguishing it from the existing Australian public domain guardrail barriers. The Z-post profile shields post edges from vulnerable road users and provides sectional strength when driving through difficult conditions.

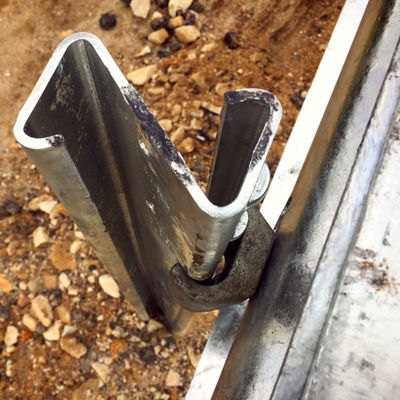

An Ezy-Carriage is used to secure the w-beam rails to the posts eliminating the requirement for blocking pieces and rail
stiffening plates. This unique connection provides a soft ride-down for the occupants and smooth vehicle containment and redirection.
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 0
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 1
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 2
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 3
Ezy-Guard Smart rails and Z-posts are manufactured from hot-rolled steel flat products in accordance with AS/NZS 1594. These items are hot dip galvanized in accordance with AS/NZS 4680 after fabrication leaving no surface untreated.
Vulnerable road users include motorcyclists, pedestrians, cyclists and other road users. Ezy-Guard Smart has been designed to provide consideration to vulnerable road users as follows:

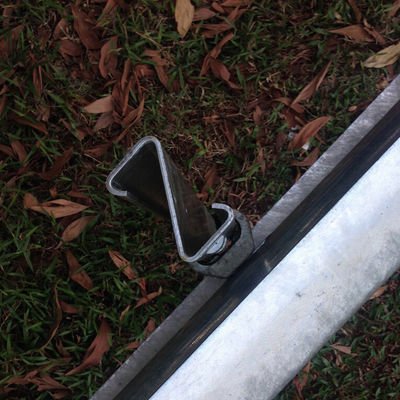

Rounded Post Corners. The Z-post contains smooth, rounded post edges and corners mitigating the risk and severity of fractures and/ or contusions. Energy Absorbing, Ductile Z-Posts. Unlike traditional guardrail posts, the Z-posts are designed to yield by bending near ground level. This bending action absorbs impact energy reducing the potential for post fracturing. A fractured or split guardrail post presents a significant laceration hazard to vulnerable road users. The Ezy-Guard Smart design does not contain any elements that become projectiles and there are no aggressive edges. Shielded Posts.
The revolutionary design of Ezy-Guard Smart shields the top of the supporting Z-posts by positioning the top of the rail above the posts. This eliminates dangerous snag points, reducing the potential for the barrier to dismount motorcyclists or cyclists. This is a significant safety benefit compared to all guardrail and cable barrier designs currently used within Australia.
Details Images
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 4
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 5
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 6
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 7
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 8
Manufacturing Technique
EzyGuard Smart is the next generation of steel guardrail barriers featuring a smart design, rapid installation and driver
confidence. EzyGuard Smart has been fully crash tested and evaluated according to the specifications for Test Level 3 (TL-3) of the AASHTO Manual for Assessing Safety Hardware (MASH). Using up to 40% less steel than conventional guardrail barriers, the EzyGuard Smart design features specially engineered Z-posts and EzyGuard sliders.

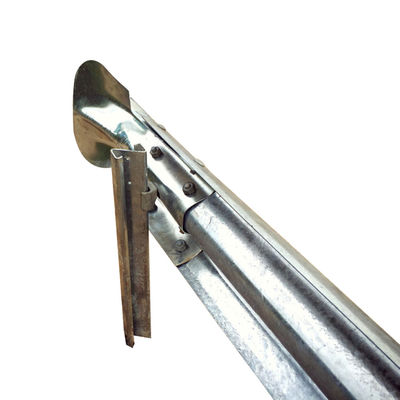

The Z-posts are manufactured from galvanised cold rolled steel, keeping their manufacturing very simple and cost competitive with traditional barrier systems. EzyGuard sliders are used to secure the W-beam rails to the Z-posts and eliminate the requirement for blocking pieces and rail stiffening plates. This unique connection provides a soft ride-down for vehicle occupants and smooth vehicle containment and redirection.
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 9
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 10
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 11
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 12
Advantages
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 13
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 14
◆High performing, low cost system
◆Compact footprint system: only 200mm
◆Very low part count, no blockouts are required
◆ Exceptional post-impact vehicle control and behaviour
◆Light system which allows for efficient handling and transport
◆Compatible with standard guardrail components, many transitions available to Terminal Ends and other barrier systems
◆width Proprietary steel post allows for “Driven” installation without predrilling, accelerating installation and impact repair process
◆ Patented post design allows the guardrail to dynamically adjust the rail height during impact compensating for different vehicle sizes and trajectories

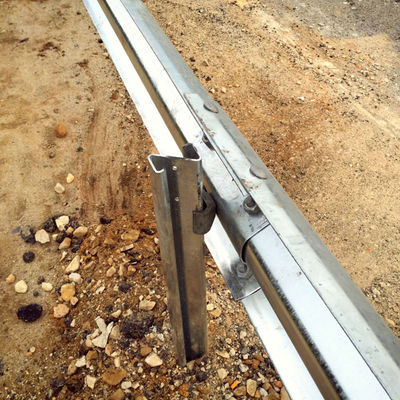

The Construction Site
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 15
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 16
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 17
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 18
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 19
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 20
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 21
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 22
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 23
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 24
Recommend Products
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 25
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 26
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 27
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 28
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 29
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 30
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 31
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 32
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 33
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 34
Q235 AASHTO M-180 Galvanized Highway Guardrail Part Barrier Z Post for Traffic Safety 35
FAQ
1.Are you a trader or factory?
Yes,our factory is in Shandong, China.

2.How can i get a sample if i want to test the quality?
Yes, we would offer the samples. If you want to test the quality,please let me know and i would arrange you the samples.

3.How long is your delivery time?
We would offer you a best delivery time.we have a big factory, and our output would be more than 8 thousand tons per month.

4.What is your payment terms?
We accept T/T, L/C at sight and Alibaba Trade Assurance.
