ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway

ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway

Large Image :  ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $15.00/pieces 20-199 pieces
Contact Now

ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway

Description
Material: Q235 Q345 Product Name: Highway Guardrail
Surface Treatment: Galvanized + Powder Coated Application: Roadway Safety
Color: Customized Keyword: Safety Barrier Guard Rail
Type: W-beam Usage: Outdoor Security
Certificate: ISO9001:2000 Name: Galvanized Highway Guardrail

Products Description
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 0

Guardrail Terminal End —— The Best Protection Against Impact

The ”end“ of the highway guardrail is found at the end of the road guardrail or at the joint section, which is composed of an "end“, this is because the road conditions differ and therefor the road guardrail end is divided into a variety of styles to accommodate different types of roads. Depending on the guardrail design, the guardrail end is generally divided into the following types:
1. Fishtail End,
2. Buffer End,
3. Round End(bullnose end),
4. Ground anchor end,
5. Bridge End,
6. Extruded guardrail end, etc.

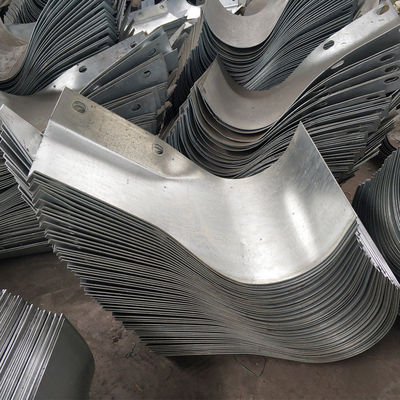

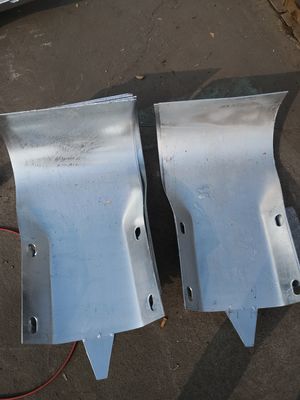

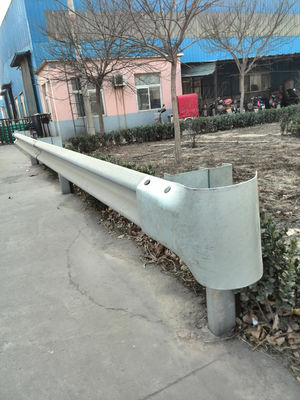

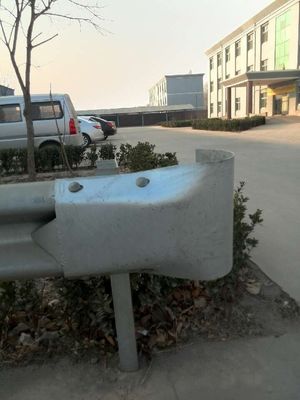

The Highway Guardrail Terminal End fixes both sides of the guardrail in order to prevent damage to pedestrians and vehicles. There is normally two pieces needed for every 1000 meters. Rounded guardrail end, is also known as the bullnose end, it is a kind of guardrail end, which is similar in shape to a question mark"?". This type of guardrail end is generally used at the end of the road, it plays the role of a guidance and impact prevention mechanism. It is made of strip steel stamping. After it undergoes hot dip galvanization or hot spray treatment, it's surface corrosion resistance is strong, it is also simple to install and construction is convenient. The bullnose end is widely used because it is easy to manufacture and install, and it has better guiding function in the case of small collision Angle.
Poorly designed guardrail terminal ends can lead to the penetration of errant vehicles, which can be extremely dangerous. Therefore, the design is very important for the reduction of damage to the vehicle and occupants. After a series of tests, our guardrail terminal ends, and our well-designed road safety products by our company, are proven to effectively minimize impacts and avoid vehicles from being speared by the terminal ends.
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 1
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 2
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 3
Details Images
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 4
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 5
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 6
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 7
Product Paramenters
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 8
Title goes here.

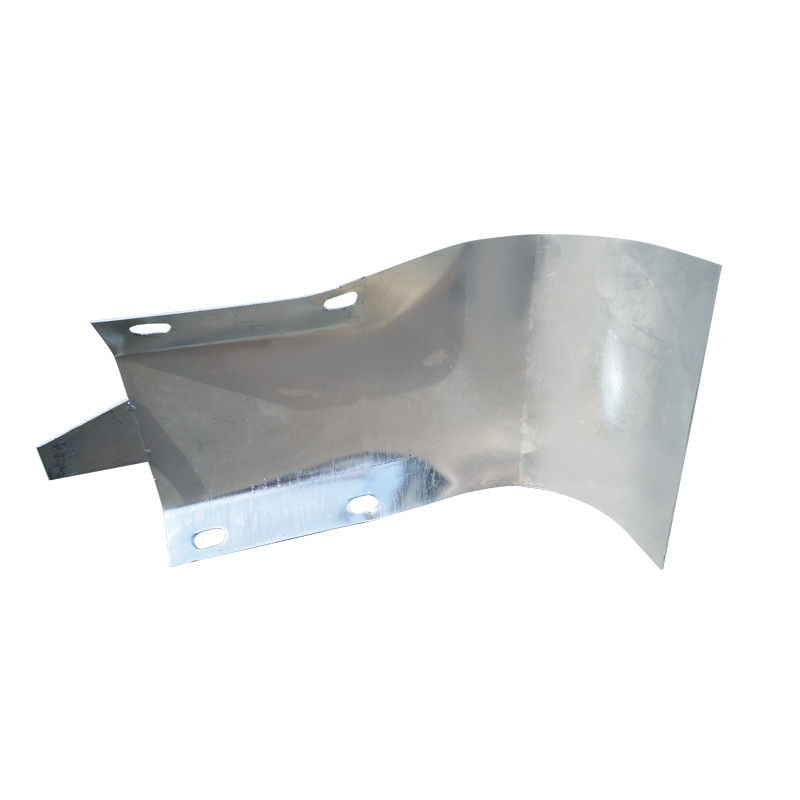

Item: RoundedTerminal End/Bullnose End
Size: R160(320)
Wave Width: 310, 506,460mm
Wave Height: 83,85mm
Thickness: 2.75mm,2.85mm,3.85mm,4mm
Zinc coating: 550g/m2 (80µ)Surface
Surface treatment:
Hot dip galvanized or powder coated.
Standard:
AASHTO M180, EN ISO 1461, Chinese National Standard
Purpose:
For the end of the section of the road, and for the protection and aesthetic effect of the end of the fence panels guardrail fish tail end
Can tailor-make according to customer's requirements
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 9
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 10
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 11
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 12
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 13
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 14
Company Profile
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 15
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 16
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 17
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.
Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.
Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 18
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 19
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 20
Recommend Products
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 21
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 22
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 23
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 24
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 25
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 26
Product packaging
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 27
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 28
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 29
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 30
ISO9001 2000 Certified W-beam Galvanized Guardrail Rounded Terminal End for Highway 31
FAQ
Q1: What's your MOQ (minimum order quantity) for guardrails?
A: 4 km or Two full containers of guardrails.

Q2: Are you trade company or guardrail factory?
A: We are guardrail factory, self making and self marketing.

Q3: What's your payment terms for guardrail order?
A: We supply our guardrail by below payment terms:
1) 30% in advance by T/T ,70% by L/C; or
2) 100% by L/C; or
3) Negotiate according to the order status.

Q4: Which delivery terms do you do for guardrails?
A: FOB China port is recommended for guardrails,but CNF/CIF destination port is also acceptable.

Q5: What is the delivery time for guardrails?
A: Normal production time for guardrail sets will be about 35 days, and the final delivery time will be confirmed according to the
guardrail order items and quantities.

Q6: Can you do the official test for the guardrail order, which authoritative organization is recommend?
A: Yes, the test for guardrail order can be arranged as per requirement, SGS test is recommended, and we could even do the test
report in the name of customers' company.

Q7: Can you provide guardrail samples?
A: Yes, we could provide guardrail samples for free, and you just need to pay the postage fee.
