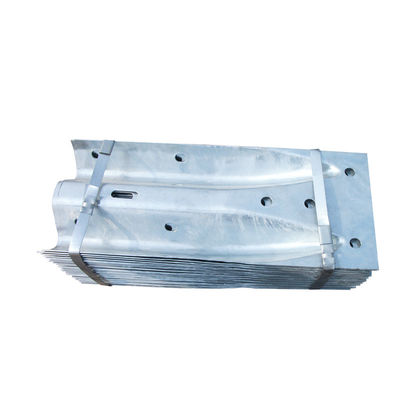

Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End

Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End

Large Image :  Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Model Number: 100*50
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $10.00/pieces 200-1999 pieces
Contact Now

Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End

Description
Material: Q235 Q345 Color: Customized
Application: Roadway Safety Product Name: Highway Guardrail
Zinc Coating: 550-600g/㎡,Customized Certificate: CE/BV/ISO 9001/ISO14001/ISO 18001
Surface Treatment: Galvanized ,Powder Coated Standard: AASHTO M-180
Usage: Outdoor Security Technology: Hot Galvanized+cold Rolled
Highlight:

galvanized bridge guardrail

,

terminals bridge guardrail

,

end bridge guardrail

Product Overview

BRIDGE END

The ”end“ of the highway guardrail is found at the end of the road guardrail or at the
joint section, which is composed of an "end“, this is because the road conditions differ and therefor the road guardrail end is divided into a variety of styles to accommodate different types of roads. Depending on the guardrail design, the guardrail end is generally divided into the following types:
1. Fishtail End,
2. Buffer End,
3. Round End(bullnose end),
4. Ground anchor end,
5. Bridge End,
6. Extruded guardrail end, etc.
The Highway Guardrail Terminal End fixes both sides of the guardrail in order to prevent damage to pedestrians and vehicles. There is normally two pieces needed for every 1000 meters. Poorly designed guardrail terminal ends can lead to the penetration of errant vehicles, which can be extremely dangerous. Therefore, the design is very important for the reduction of damage to the vehicle and occupants. After a series of tests, our guardrail terminal ends, and our well-designed road safety products by our company, are proven to effectively minimize impacts and avoid vehicles from being speared by the terminal ends.
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 0

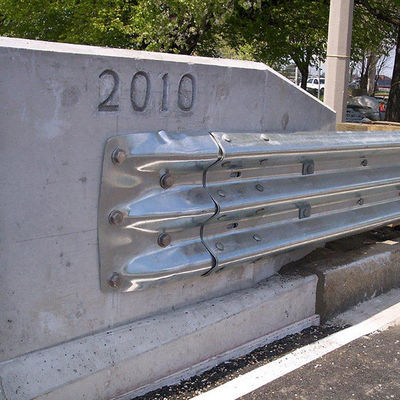

The bridge end for thrie beam guardrail.
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 1

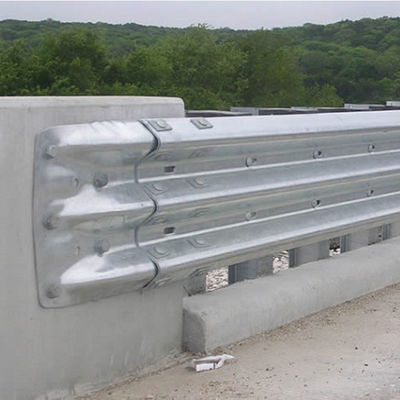

The bridge end for w beam guardrail.
FEATURES AT A GLANCE
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 2
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 3
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 4

Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 5

PRODUCT SPECIFICATIONS
SPECIFICAIONS
Data
Material
Steel(Q235 or Q345 Grade)
Length
700,710,730 mm or customized
Wave Width
310, 510mm or customized
Wave Height
83,85,310mm or customized
Thickness
2.75mm,3mm,4mm or customized
Zinc Coating
350- 550g/m2
Surface treatment
Hot dipped Galvanized or powder coating
Display colors
red, yellow, white, blue and green
Features
Great corrosion resistant, high intensity, long and durable
Manufacturing Technique
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 6
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 7
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 8
SIMILAR PRODUCTS
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 9
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 10
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 11
Company Profile
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 12
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 13
Hot Galvanized cold Rolled Technology Customized Highway Guardrail Bridge Terminals End 14
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.
Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.
Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
FAQ
1.Q:Are you a factory or trading company?
A:We are factory which has been in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to
visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples. Please send a sample inquiry and leave us your email address, then we will send you more
information about the samples for your reference.

4.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the
very end. Our factory has gained ISO 9001 and SGS authentication.
