Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard

Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard

Large Image :  Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $50.00/pieces 20-199 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 250000 Ton/Tons per Year
Contact Now

Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard

Description
Application: Roadway Safety Product Name: Z Post Of Guardrail
Surface Treatment: Hot Dippe Galvanized Material: Q235(SJ235R)
Usage: Outdoor Security Type: Z Post
Feature: High Durable Keyword: Highway Guardrail Post
Certificate: ISO9001:2000 Standard: AASHTO M-180
Port: Qingdao, Tianjin Port, China

Products Description

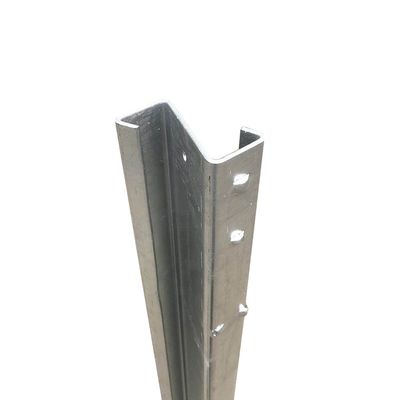

Z GUARDRAIL POST

The ”end“ of the highway guardrail is found at the end of the road guardrail or at the joint section, which is composed of an "end“, this is because the road conditions differ and therefor the road guardrail end is divided into a variety of styles to accommodate different types of roads. Depending on the guardrail design, the guardrail end is generally divided into the following types:
1. Fishtail End,
2. Buffer End,
3. Round End(bullnose end),
4. Ground anchor end,
5. Bridge End,
6. Extruded guardrail end, etc.
Introducing Z guardrail post, a member of the highway guardrail family, the next generation steel guardrail barrier providing superior motorist safety and more metres of barrier for your dollar.
Z guardrail post is crash tested to the latest performance standard distinguishing it from the existing Australian public domain guardrail barriers. The Z-post profile shields post edges from vulnerable road users and provides sectional strength when driving through difficult conditions.

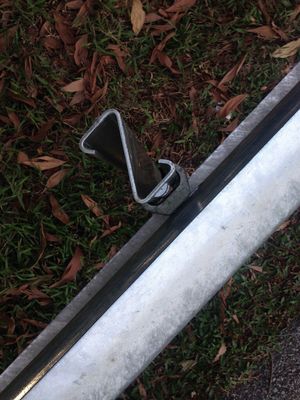

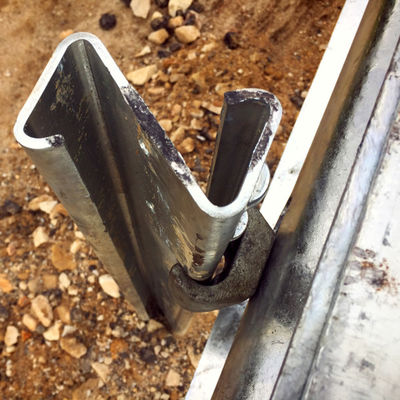

An Ezy-Carriage is used to secure the w-beam rails to the posts eliminating the requirement for blocking pieces and rail
stiffening plates. This unique connection provides a soft ride-down for the occupants and smooth vehicle containment and redirection.
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 0
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 1
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 2
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 3
Ezy-Guard Smart rails and Z-posts are manufactured from hot-rolled steel flat products in accordance with AS/NZS 1594. These items are hot dip galvanized in accordance with AS/NZS 4680 after fabrication leaving no surface untreated.
Vulnerable road users include motorcyclists, pedestrians, cyclists and other road users. Ezy-Guard Smart has been designed to provide consideration to vulnerable road users as follows:
Rounded Post Corners. The Z-post contains smooth, rounded post edges and corners mitigating the risk and severity of fractures and/ or contusions. Energy Absorbing, Ductile Z-Posts. Unlike traditional guardrail posts, the Z-posts are designed to yield by bending near ground level. This bending action absorbs impact energy reducing the potential for post fracturing. A fractured or split guardrail post presents a significant laceration hazard to vulnerable road users. The Ezy-Guard Smart design does not contain any elements that become projectiles and there are no aggressive edges. Shielded Posts.
The revolutionary design of Ezy-Guard Smart shields the top of the supporting Z-posts by positioning the top of the rail above the posts. This eliminates dangerous snag points, reducing the potential for the barrier to dismount motorcyclists or cyclists. This is a significant safety benefit compared to all guardrail and cable barrier designs currently used within Australia.
Details Images
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 4
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 5
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 6
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 7
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 8
Manufacturing Technique
EzyGuard Smart is the next generation of steel guardrail barriers featuring a smart design, rapid installation and driver
confidence. EzyGuard Smart has been fully crash tested and evaluated according to the specifications for Test Level 3 (TL-3) of the AASHTO Manual for Assessing Safety Hardware (MASH). Using up to 40% less steel than conventional guardrail barriers, the EzyGuard Smart design features specially engineered Z-posts and EzyGuard sliders.

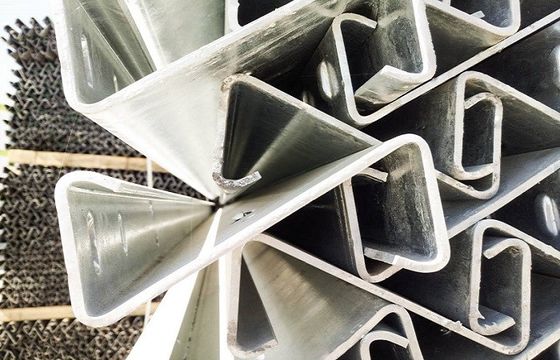

The Z-posts are manufactured from galvanised cold rolled steel, keeping their manufacturing very simple and cost competitive with traditional barrier systems. EzyGuard sliders are used to secure the W-beam rails to the Z-posts and eliminate the requirement for blocking pieces and rail stiffening plates. This unique connection provides a soft ride-down for vehicle occupants and smooth vehicle containment and redirection.
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 9
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 10
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 11
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 12
Advantages
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 13
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 14
◆High performing, low cost
◆Compact footprint system: only 200mm
◆Very low part count, no blockouts are required
◆ Exceptional post-impact vehicle control and behaviour
◆Light system which allows for efficient handling and transport
◆Compatible with standard guardrail components, many transitions available to Terminal Ends and other barrier systems
◆width Proprietary steel post allows for “Driven” installation without predrilling, accelerating installation and impact repair process
◆ Patented post design allows the guardrail to dynamically adjust the rail height during impact compensating for different vehicle sizes and trajectories

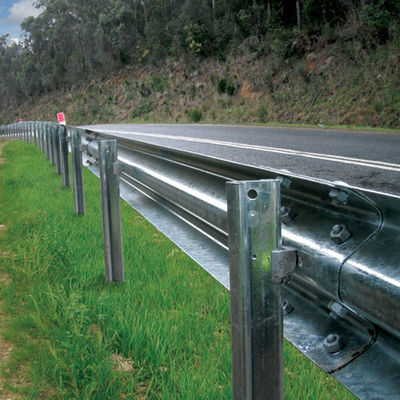

The Construction Site
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 15
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 16
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 17
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 18
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 19
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 20
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 21
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 22
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 23
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 24
Recommend Products
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 25
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 26
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 27
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 28
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 29
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 30
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 31
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 32
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 33
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 34
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 35
Company Profile
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 36
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 37
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 38
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in
Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.
Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.
Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 39
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 40
Maximize Highway Guardrail Safety with Ezy-Guard Smart Post in AASHTO M-180 Standard 41
FAQ
1.Are you a trader or factory?
Yes,our factory is in Shandong, China.

2.How can i get a sample if i want to test the quality?
Yes, we would offer the samples. If you want to test the quality,please let me know and i would arrange you the samples.

3.How long is your delivery time?
We would offer you a best delivery time.we have a big factory, and our output would be more than 8 thousand tons per month.

4.What is your payment terms?
We accept T/T, L/C at sight and Alibaba Trade Assurance.
