Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security

Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security

Large Image :  Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 25 tons
Price: $850.00/tons 25-199 tons
Packaging Details: Export standard bundle or as clients request
Supply Ability: 250000 Ton/Tons per Year
Contact Now

Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security

Description
Product Name: Z Post Of Guardrail Application: Roadway Safety
Material: Q235(SJ235R) Surface Treatment: Hot Dippe Galvanized
Usage: Outdoor Security Type: Z Post
Keyword: Highway Guardrail Post Feature: High Durable
Standard: AASHTO M-180 Certificate: ISO9001:2000
Port: Qingdao, Tianjin Port, China

Products Description

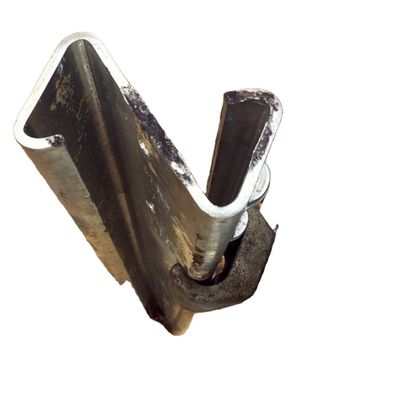

Z GUARDRAIL POST

The ”end“ of the highway guardrail is found at the end of the road guardrail or at the joint section, which is composed of an "end“, this is because the road conditions differ and therefor the road guardrail end is divided into a variety of styles to accommodate different types of roads. Depending on the guardrail design, the guardrail end is generally divided into the following types:
1. Fishtail End,
2. Buffer End,
3. Round End(bullnose end),
4. Ground anchor end,
5. Bridge End,
6. Extruded guardrail end, etc.

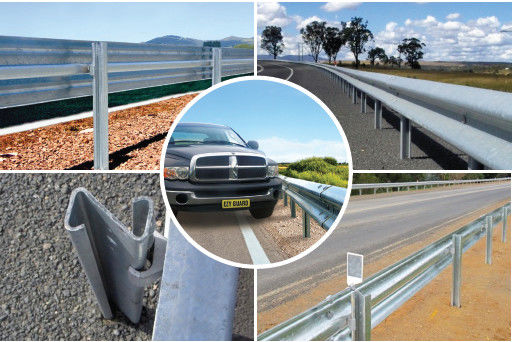

Introducing Z guardrail post, a member of the highway guardrail family, the next generation steel guardrail barrier providing superior motorist safety and more metres of barrier for your dollar.
Z guardrail post is crash tested to the latest performance standard distinguishing it from the existing Australian public domain guardrail barriers. The Z-post profile shields post edges from vulnerable road users and provides sectional strength when driving through difficult conditions.
An Ezy-Carriage is used to secure the w-beam rails to the posts eliminating the requirement for blocking pieces and rail
stiffening plates. This unique connection provides a soft ride-down for the occupants and smooth vehicle containment and redirection.
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 0
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 1
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 2
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 3
Ezy-Guard Smart rails and Z-posts are manufactured from hot-rolled steel flat products in accordance with AS/NZS 1594. These items are hot dip galvanized in accordance with AS/NZS 4680 after fabrication leaving no surface untreated.
Vulnerable road users include motorcyclists, pedestrians, cyclists and other road users. Ezy-Guard Smart has been designed to provide consideration to vulnerable road users as follows:

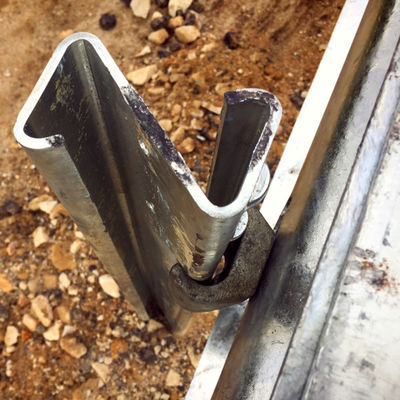

Rounded Post Corners. The Z-post contains smooth, rounded post edges and corners mitigating the risk and severity of fractures and/ or contusions. Energy Absorbing, Ductile Z-Posts. Unlike traditional guardrail posts, the Z-posts are designed to yield by bending near ground level. This bending action absorbs impact energy reducing the potential for post fracturing. A fractured or split guardrail post presents a significant laceration hazard to vulnerable road users. The Ezy-Guard Smart design does not contain any elements that become projectiles and there are no aggressive edges. Shielded Posts.
The revolutionary design of Ezy-Guard Smart shields the top of the supporting Z-posts by positioning the top of the rail above the posts. This eliminates dangerous snag points, reducing the potential for the barrier to dismount motorcyclists or cyclists. This is a significant safety benefit compared to all guardrail and cable barrier designs currently used within Australia.
Details Images
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 4
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 5
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 6
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 7
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 8

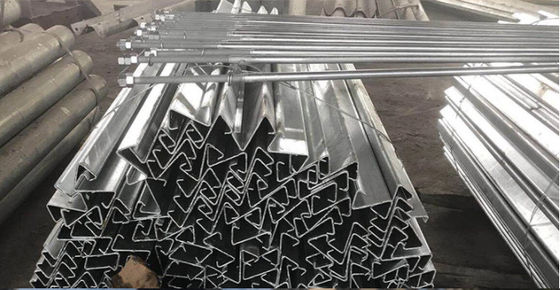

Manufacturing Technique
EzyGuard Smart is the next generation of steel guardrail barriers featuring a smart design, rapid installation and driver
confidence. EzyGuard Smart has been fully crash tested and evaluated according to the specifications for Test Level 3 (TL-3) of the AASHTO Manual for Assessing Safety Hardware (MASH). Using up to 40% less steel than conventional guardrail barriers, the EzyGuard Smart design features specially engineered Z-posts and EzyGuard sliders.
The Z-posts are manufactured from galvanised cold rolled steel, keeping their manufacturing very simple and cost competitive with traditional barrier systems. EzyGuard sliders are used to secure the W-beam rails to the Z-posts and eliminate the requirement for blocking pieces and rail stiffening plates. This unique connection provides a soft ride-down for vehicle occupants and smooth vehicle containment and redirection.
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 9
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 10
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 11
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 12
Advantages
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 13
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 14
◆High performing, low cost
◆Compact footprint system: only 200mm
◆Very low part count, no blockouts are required
◆ Exceptional post-impact vehicle control and behaviour
◆Light system which allows for efficient handling and transport
◆Compatible with standard guardrail components, many transitions available to Terminal Ends and other barrier systems
◆width Proprietary steel post allows for “Driven” installation without predrilling, accelerating installation and impact repair process
◆ Patented post design allows the guardrail to dynamically adjust the rail height during impact compensating for different vehicle sizes and trajectories

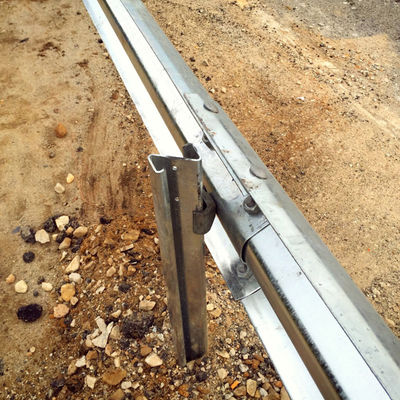

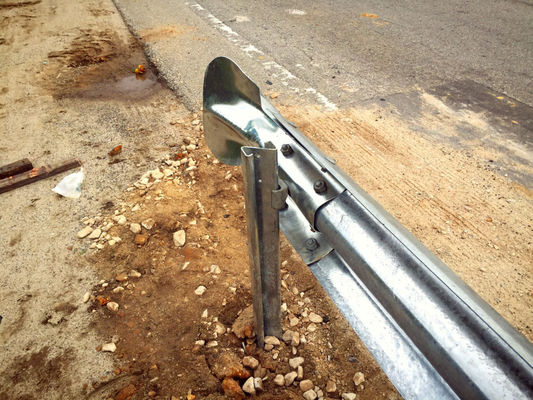

The Construction Site
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 15
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 16
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 17
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 18
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 19
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 20
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 21
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 22
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 23
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 24
Recommend Products
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 25
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 26
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 27
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 28
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 29
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 30
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 31
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 32
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 33
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 34
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 35
Company Profile
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 36
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 37
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 38
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in
Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.
Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.
Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 39
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 40
Ezy-Guard Smart Highway Guardrail Post Standard AASHTO M-180 for Outdoor Security 41
FAQ
1.Are you a trader or factory?
Yes,our factory is in Shandong, China.

2.How can i get a sample if i want to test the quality?
Yes, we would offer the samples. If you want to test the quality,please let me know and i would arrange you the samples.

3.How long is your delivery time?
We would offer you a best delivery time.we have a big factory, and our output would be more than 8 thousand tons per month.

4.What is your payment terms?
We accept T/T, L/C at sight and Alibaba Trade Assurance.
