Highway Guardrail Anti Glare Board Facilities flexible Warning Posts

Highway Guardrail Anti Glare Board Facilities flexible Warning Posts
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts Highway Guardrail Anti Glare Board Facilities flexible Warning Posts Highway Guardrail Anti Glare Board Facilities flexible Warning Posts Highway Guardrail Anti Glare Board Facilities flexible Warning Posts Highway Guardrail Anti Glare Board Facilities flexible Warning Posts Highway Guardrail Anti Glare Board Facilities flexible Warning Posts

Large Image :  Highway Guardrail Anti Glare Board Facilities flexible Warning Posts

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $10.00 - $25.00/pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 20000 Piece/Pieces per Year
Contact Now

Highway Guardrail Anti Glare Board Facilities flexible Warning Posts

Description
Material: FRP Product Name: Anti-glare Board
Color: Green Application: Road Facilities
Usage: Road Traffic Safety Name: Flexible Warning Posts
Feature: Durable Keywords: Fiberglass Reinforced PLASTIC Road Plate
Port: Qingdao, Tianjin Port, China
Highlight:

highway guardrail anti glare board

,

road facilities anti glare board

,

anti glare flexible warning posts



Highway anti-glare panel
Anti-glare plate is a kind of traffic safety product which is installed in the central separation belt of expressway in order to solve the glare of opposite headlights. Most of them are set on the guardrail or the middle guardrail of the central separation belt of the expressway. Some of them are also set on the central opening activity guardrail. From the material, they are divided into steel anti-dazzle board, plastic anti-dazzle board and fiberglass anti-dazzle board. From the appearance of classification, common plain, anti - S - shaped, relief relief anti - glare plate, such as highway landscape anti - glare plate.
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 0
The anti-glare board is mostly set up on the concrete guardrail of the central separation belt of the expressway, and some high speed is set up on the activity guardrail of the central opening. From the material classification: SMC anti - dazzle board, fiberglass anti - dazzle board, iron anti - dazzle board. From the appearance of classification: there are common straight board, reverse S shape, leaf shape, highway landscape anti-dazzle board, imitation relief anti-dazzle board, banana leaf shape, herringbone and so on. From the functional classification: common anti-dazzle board, functional anti-dazzle board, anti-ultraviolet anti-dazzle board, self-cleaning anti-dazzle board, landscape anti-dazzle board.
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 1
Details Images

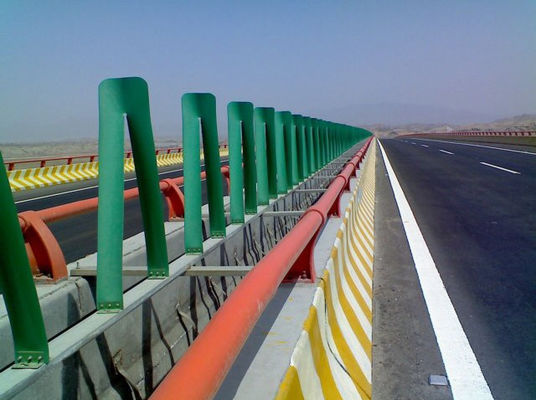

The anti-glare board and the central divider guardrail can be arranged in the following three ways in the structural treatment. (1) Anti-dazzle plate and concrete guardrail combined, which depends on the embedded parts on the concrete top to achieve, generally using welding. (2) anti-glare plate and corrugated beam guardrail combined, can be added on the guardrail column beam (channel steel), anti-glare plate fixed in channel steel, can also be fixed on the composite guardrail column anti-glare plate. (3) Anti-dazzle board separately erected column will be buried in the central separation belt. Anti-dazzle plate should be a certain length of independent structure section for manufacturing and installation units, the length of this structure is generally in 4 ~ 12m, depending on the materials used, the process.
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 2
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 3
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 4
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 5
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 6
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 7
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 8
Features of frp anti-dazzle plate:
1. It contains special materials and effectively resists ultraviolet rays.
2. The organic color and inorganic color are mixed to make it not easy to fade and change color.
3. High strength fiberglass with fiberglass inside, resistant to wind load 6m/s, and good aging resistance.
4. The surface is provided with two reinforcing bars, which are firm and durable.
5. Unique anti-s shape design can not only increase the intensity and reduce the air pressure, but also can limit the blocking of the light in the opposite direction.
6. Salt-alkali corrosion resistance and sand abrasion resistance.
7. Green design can effectively reduce driving fatigue.
8. Operating temperature range: - 40 ℃ to + 70 ℃
Product Paramenters
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 9
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 10
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 11
Sepecification of frp anti-dazzle plate:

S shape, 850x200mm, 700g
Leaf shape, 900x220mm, 900g
Ashape (New), 1000x200mm, 650g
S shape, 850x200mm, 700g
Leaf shape, 900x220mm, 900g
A shape, 1000x200mm, 650g
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 12
Advantages
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 13
Advantage of frp anti-dazzle plate:
1. Light weight, high intensity.
2. Can supply various size and shape on request.
3. High temperature and pressure forming, stable structure.
4. Good weather resistance, long service life under heavy weather.
5. Good anti-corrosion property. Stable chemical property, not react with acids and bases.
6. Good anti-glare effect, matt finishing surface, soft in vision, reduce the light reflect.
7. Aesthetic appearance and color, the ideal functional freeway decoration.
8. Anti-dazzling board is used for highway to avoid eyes dazzled when driving,especially at night.
9. Anti-dazzling board is used formunicipal engineering as a kind of good material.
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 14
Installation Instructions
The anti-glare board is a kind of traffic safety product installed on the freeway central separation belt for the purpose of
solving the glare of the opposing headlights. This product is made of fiberglass material, by high temperature and pressure of mold. Good verticality, no skewed, 2 years no fading, with excellent anti-glare effect and weather resistance performance. This product structure designed equitable, wind resistance small, no snow covered, easily installation, aesthetic and economic, effectively reduced the psychological burden of driver and driving fatigue.
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 15
Why Choose Us
Highway Guardrail Anti Glare Board Facilities flexible Warning Posts 16
1.Competitive price and quality from our own factory
2. Approved by ISO9001, CE, SGS every year
3. Best service with 24 hour`s reply
4. Flexible payment with T/T,L/C, etc
5. Smooth production ability(50000tons/month)
6. Quick delivery and standard exporting package
7. OEM/ODM
FAQ
Q:Can i get a sample before bulk order ? how can i get it ?
A:Sample is free ,but freight collect.
You may tell us your express account No. Also you could prepay the freight cost by Western union, we will send out sample asap once getting your payment.

Q:Can you do customers’ styles?
A:Yes ,just send us the drawing ,then we could open a new mould for you to produce it as your request

Q:Is this retail product?
A:sorry , it is wholesale product .

Q:Can we visit your factory ?
A:Certainly.welcome your visit.

Q: How to ensure the cargo quality?
A:We will supply bulk sample before shipping.They can represent the cargo quality.

Q: What’s the payment method?
A:T/T: Accept USD, EUR. Western Union: Quickly to the account, Priority in delivery Behalf Paying: Your Chinese friends or your Chinese agent can pay for in RMB
