Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology

Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology

Large Image :  Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $30.00/pieces 20-199 pieces
Contact Now

Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology

Description
Product Name: Highway Guardrail Material: Q235 Q345
Zinc Coating: 550-600g/㎡,Customized Color: Customized
Technology: Hot Galvanized+cold Rolled Standard: AASHTO M-180
Surface Treatment: Galvanized ,Powder Coated Application: Roadway Safety
Certificate: CE/BV/ISO 9001/ISO14001/ISO 18001 Usage: Outdoor Security
Highlight:

custom traffic barrier

,

posts traffic barriers

,

w beam traffic barrier

Products Description

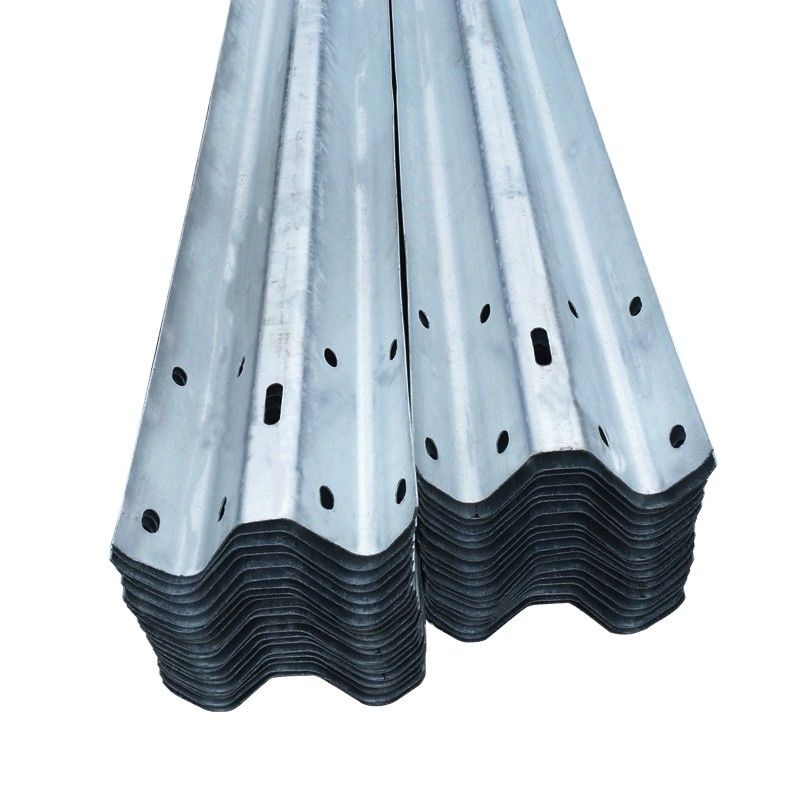

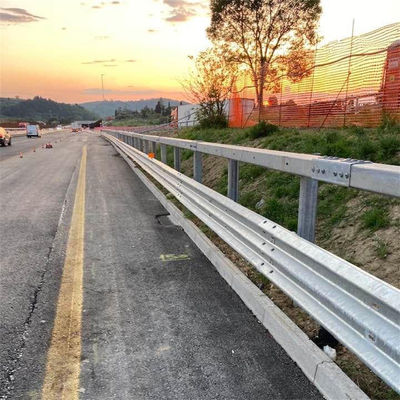

Steel beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited. All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards, AASHTO M180 Standard, SANA 1350 Standard and etc.
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 0
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 1
Product Paramenters
American  AASHTO-M180 Technical Standard W-beam highway guardrail
TYPE
Overall Length
(mm)
Effection Length
 (mm)
Norminal Uncoated Thickness
 (mm)
TYPE Ⅰ
4130
3810
2.67
TYPE Ⅱ
4320
4000
2.67

MECHANICAL PROPERTIES
◆Material grade: S355JR
◆Yield Point, minimum, 345Mpa (50000psi);
◆Tensile Strength, minimum 483Mpa (70000psi); and
◆Elongation, in 50mm (2 in.),minimum, 12 percent.

NOTES
●Thickness of Zinc coating: 550g/㎡ or1100g/㎡;
●The beams may galvantzed before or after fabrication;
●We can customize the length and thickness according to customer requirements.


Manufacturing Technique
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 2
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 3
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 4
Details Images
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 5
C POST+BOX SPACER
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 6
CHANNEL POST+CHANNEL SAPCER
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 7
C POST+C SPACER
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 8
U POST+U SPACER
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 9
H POST+ BRACKET
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 10
C POST+TRAPEZOIDAL SPACER
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 11
SIGMA POST+ BRACKET
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 12
H POST+H SPACER
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 13
Z POST+STEEL CLIP
Company Profile
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 14
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 15
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 16
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.
Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.
Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 17
BENDING MACHINE
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 18
DECOILER
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 19
PUNCHING MACHINE
Recommend Products
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 20
C POST FOR GUARDRAIL
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 21
H POST FOR GUARDRAIL
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 22
U POST FOR GUARDRAIL
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 23
Z POST FOR GUARDRAIL
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 24
BOX SPACER FOR GUARDRAIL
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 25
FISHTAIL END FOR GUARDRAIL
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 26
TERMINAL CONNECTOR
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 27
BEND GUARDRAIL
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 28
RADIAN GUARDRAIL
Product packaging
Focusing on the transportation facilities, the company has a variety of packaging for container loading. Among them, the guardrail plate is packed with steel wire rope, the post is transported by pallet, and the spacer and other guardrail accessories are shipped in ton package. This assembly method ensures that the products arrive at the destination port and is convenient for loading and unloading.
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 29
The packing of guardrail adopts bundling method, which is convenient for loading and unloading. It can also keep the balance of containers and facilitate transportation.
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 30
The packing of guardrail post adopts the well shaped binding method, which has strong firmness and is easy to be loaded and unloaded by forklift.
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 31
We use ton bags or simple wooden cases for packing accessories of guardrail, which is convenient for loading and unloading, and installation after arrival.
Our Advantages
Highway Guardrail and Posts AASHTO M-180 Standard Hot Galvanized cold Rolled Technology 32
◆Professional manufacturers and suppliers of safety protection products;
◆The company has many years of export experience, the export share is about 50%; ◆According to customer requirements, design, research and development, customized products; ◆Provide one-to-one online installation guidance and 24-hour service hotline : + 86-635-7070701;
