Highway Guardrail Flange Post with Stainless Steel Material in with Standard

Highway Guardrail Flange Post with Stainless Steel Material in with Standard
Highway Guardrail Flange Post with Stainless Steel Material in with Standard Highway Guardrail Flange Post with Stainless Steel Material in with Standard Highway Guardrail Flange Post with Stainless Steel Material in with Standard Highway Guardrail Flange Post with Stainless Steel Material in with Standard Highway Guardrail Flange Post with Stainless Steel Material in with Standard Highway Guardrail Flange Post with Stainless Steel Material in with Standard

Large Image :  Highway Guardrail Flange Post with Stainless Steel Material in with Standard

Product Details:
Place of Origin: Shandong, China
Brand Name: safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $10.00/pieces 200-1999 pieces
Contact Now

Highway Guardrail Flange Post with Stainless Steel Material in with Standard

Description
Product Name: Highway Guardrail Post Material: Stainless Steel
Color: Customized Application: Roadway Safety
Usage: Road Traffic Safety Feature: Anti-corrosion
Surface Treatment: Galvanized + Powder Coated Keyword: Traffic Road Steel Barrier
Certificate: ISO9001:2008 Packing: Carton
Highlight:

sale metal guardrails

,

traffic metal guardrails

,

traffic metal guardrail

Products Description
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 0

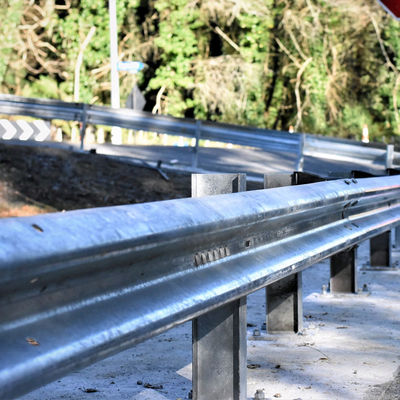

Guardrail Post —— the component supporting the road safety barrier system
Guardrail post, as a holder of highway guardrails, generally determines the barrier's performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235, Q345 and Q255 or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters.
In the assembly of high-speed guardrail, the post plays the role of connecting the top and the bottom, that is to say, one end of the post is connected with the spacer and guardrail, and the other end is firmly fixed on the ground, so as to support the whole guardrail component and protect vehicles and pedestrians to deviate from the track due to impact on the guardrail.
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 1

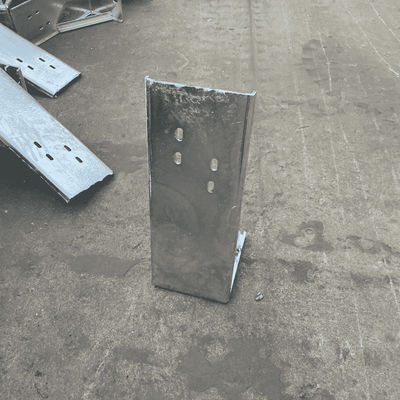

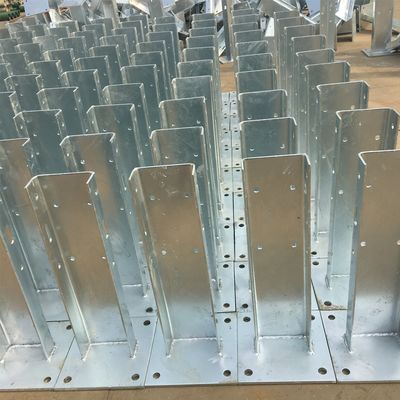

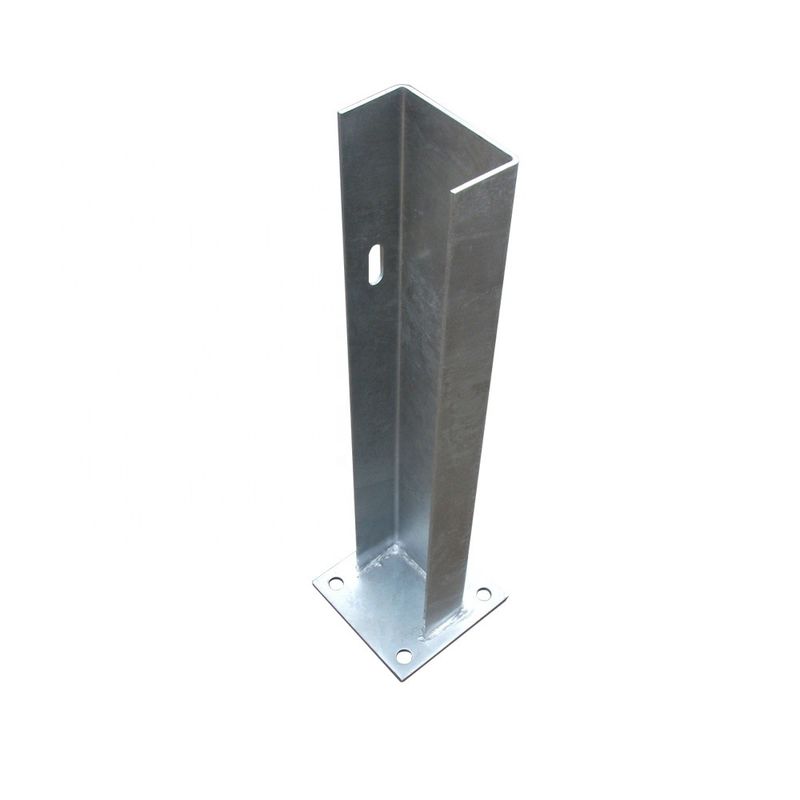

Flange Post is the most widely used column on the road guardrail
Flange post is the simplest structure in the road security guardrail and the most commonly used post in the international market. It is generally made of Q235 strip steel or higher grade strip steel according to the requirements of customers through punching machine and then through hydraulic bending machine forming.
One end of it is connected to the Flange spacer and the guardrail by bolts, and the other end is buried in the earth by a pile driver or fastened on the cement road surface by flannel, thus playing a supporting role for the whole guardrail and preventing vehicles or pedestrians from rushing out and causing secondary damage due to traffic accidents.
The surface of Flange post is generally treated by hot-dip galvanizing process. This surface treatment method can effectively prevent corrosion, withstand high temperature and have a long life. Meanwhile, its appearance is simple and easy to assemble and replace accessories.
Product Paramenters
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 2
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 3
Name
Flange Post for highway guardrail
Material
 Q235B ( S235JR )
 Q345 (S355JR )
Surface treatment
Hot Dipped Galvanized
Thickness
4.0/5.0/5.5/6.0mm
Specifications
100*55 /150*75 /150*100 /178*76
Zinc coating
70-85μm
Standard
AASHTO M180  EN ISO 1461
 Chinese National Standard
Application
Highway/road safey barriers part
Certificate
SGS/ISO 9001
MOQ
20MT
Details Images
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 4
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 5
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 6
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 7
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 8
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 9
Manufacturing Technique
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 10
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 11
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 12
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 13
Advantages
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 14
◆Great corrosion resistant
◆high intensity
◆long and durable
◆good impact resistance
◆low cost
◆long life
◆higher security
◆environmental protection
Recommend Products
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 15
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 16
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 17
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 18
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 19
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 20
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 21
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 22
Highway Guardrail Flange Post with Stainless Steel Material in with Standard 23
FAQ
Q1: Are you trade company or guardrail factory?
A: We are guardrail factory, self making and self marketing.

Q2: What's your payment terms for guardrail order?
A: We supply our guardrail by below payment terms:
1) 30% in advance by T/T ,70% by L/C;
2) 100% by L/C;
3) Negotiate according to the order status.

Q3: Which delivery terms do you do for guardrails?
A: FOB China port is recommended for guardrails, but CNF/CIF destination port is also acceptable.

Q4: What is the delivery time for guardrails?
A: Normal production time for guardrail sets will be about 35 days, and the final delivery time will be confirmed according to the
guardrail order items and quantities.

Q5: Can you do the official test for the guardrail order, which authoritative organization is recommend?
A: Yes, the test for guardrail order can be arranged as per requirement, SGS test is recommended, and we could even do the test
report in the name of customers' company.

Q6: Can you provide guardrail samples?
A: Yes, we could provide sample service.
