Product Details:
|
Product Name: | Highway Guardrail | Material: | Stainless Steel |
---|---|---|---|
Color: | Customized | Application: | Roadway Safety |
Usage: | Road Traffic Safety | Feature: | Anti-corrosion |
Surface Treatment: | Galvanized + Powder Coated | Keyword: | Traffic Road Steel Barrier |
Certificate: | ISO9001:2008 | Packing: | Carton |
Port: | Qingdao, Tianjin Port, China | ||
Highlight: | sale safety barrier,road traffic barriers,road traffic safety barriers |

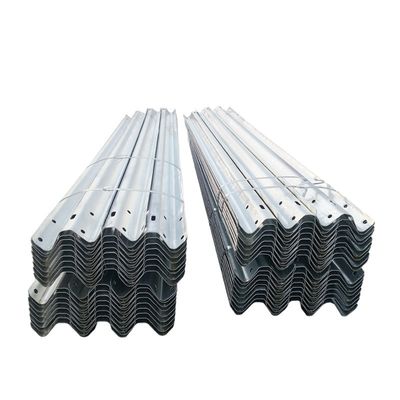

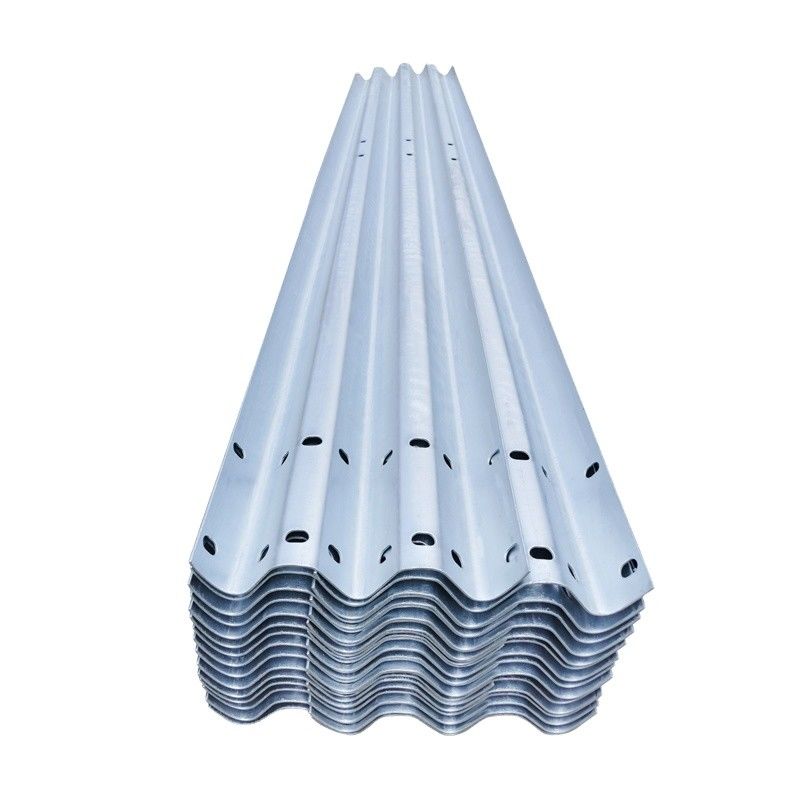

American AASHTO-M180 Technical Standard W-beam highway guardrail | ||||||||
TYPE | Overall Length (mm) | Effection Length (mm) | Norminal Uncoated Thickness (mm) | |||||
TYPE Ⅰ | 4130 | 3810 | 2.67 | |||||
TYPE Ⅱ | 4320 | 4000 | 2.67 | |||||
MECHANICAL PROPERTIES | ◆Material grade: S355JR ◆Yield Point, minimum, 345Mpa (50000psi); ◆Tensile Strength, minimum 483Mpa (70000psi); and ◆Elongation, in 50mm (2 in.),minimum, 12 percent. | |||||||
NOTES | ●Thickness of Zinc coating: 550g/㎡ or1100g/㎡; ●The beams may galvantzed before or after fabrication; ●We can customize the length and thickness according to customer requirements. |
