ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature

ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature

Large Image :  ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature

Product Details:
Place of Origin: Shandong, China
Brand Name: safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $10.00/pieces 200-1999 pieces
Contact Now

ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature

Description
Product Name: Highway Guardrail Post Material: Stainless Steel
Application: Roadway Safety Usage: Road Traffic Safety
Feature: Anti-corrosion Surface Treatment: Galvanized + Powder Coated
Keyword: Traffic Road Steel Barrier Packing: Carton
Standard: AASHTO M-180 Certificate: ISO9001:2008
Highlight:

traffic safety metal guardrails

,

h post steel guardrail

,

sale metal guardrails

Products Description
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 0

High strength hot dip galvanizing H post for highway guardrail

H-beam is a kind of economical section with more optimized section area distribution and more reasonable strength-weight ratio. It is named because its section is the same as the English letter "H". Due to the right-angle arrangement of all parts of H-beam, h-beam has been widely used for its strong bending resistance, simple construction, cost saving and light structural weight in all directions. An economic section shaped like a capital Latin letter H, also known as universal steel beam, wide flange (edge) I-steel or parallel flange I-steel.
The cross-section of h-beam steel usually consists of a web and a flange, also known as the waist and the side. The flange of h-beam is parallel or close to the plane, flange ends are at right angles, hence the name of the parallel flange
I-steel. The web thickness of H-beam is smaller than the ordinary I-steel with the same height of the web, and the flange width is larger than the ordinary I-steel with the same height of the web, so it is also named wide flange I-steel.
Determined by the shape, the section modulus, moment of inertia and corresponding strength of H-beam are obviously superior to ordinary I-beam with the same single weight. When used in different metal structures with different requirements, it shows its superior performance no matter under bending moment, pressure load and eccentric load, and can greatly improve the bearing capacity compared with ordinary I-steel, saving 10%~ 40% of the metal.
H-beam has wide flange, thin web, many specifications and flexible use, which can save 15% ~ 20% of metal in all kinds of truss structures. Because the flange inside and outside is parallel, the edge end is a right Angle, easy to assemble and combine into various components, thus can save about 25% of the workload of welding, riveting, can greatly accelerate the construction speed of the project, shorten the construction period.
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 1
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 2

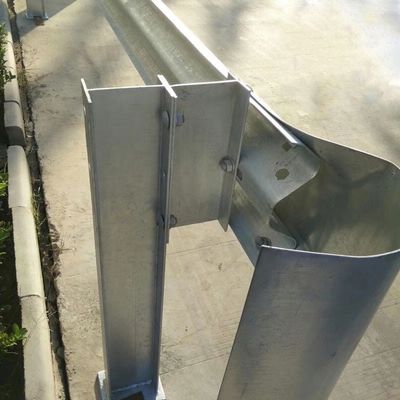

With H post is to use a guardrail according to customer's demand, h-beam manufactured after cutting, punching, this kind of barrier post of simple structure, convenient installation, whether under bending moment, pressure load and eccentric load are show its superior performance, can effectively prevent the moving vehicles are not out, reduce the happening of the accident.

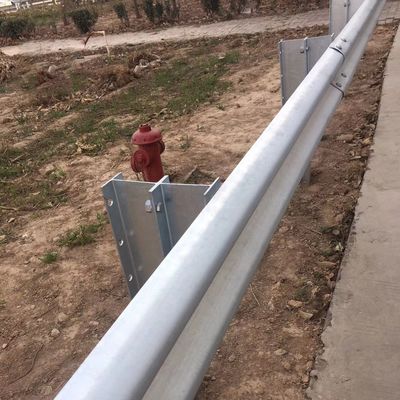

One end of the H-shaped post is fastened with bolts and connecting pieces and guardrail, and the other end is buried in the earth, which plays a supporting role in road guardrail and can effectively prevent vehicles from rushing out.

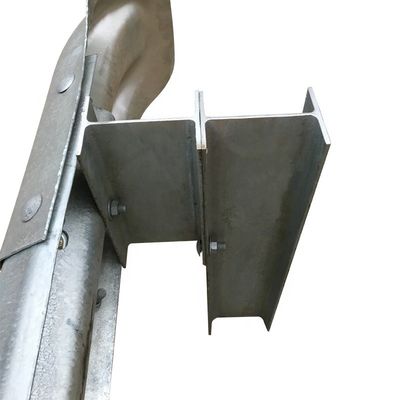

H-type post is generally used in conjunction with H-type block, U-type block, brackets, etc. It is simple in structure and easy to install. Formed by hot rolling, high strength, high hardness, at the same time the surface generally do hot galvanizing treatment, corrosion resistance, long life.
Details Images

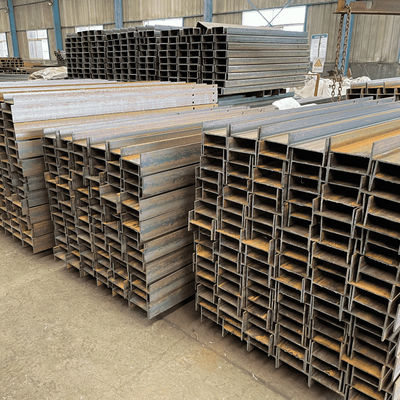

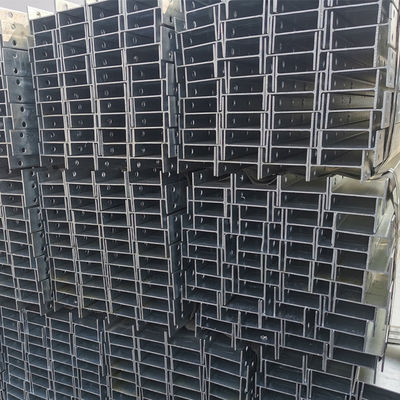

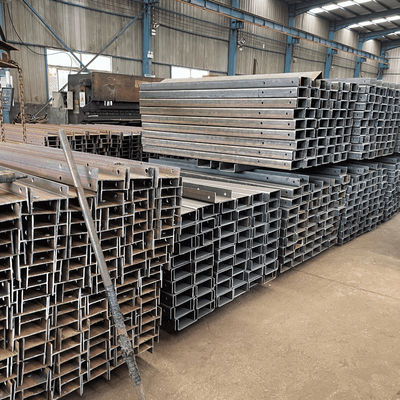

ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 3
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 4
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 5
Product Paramenters
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 6
Name
H Post for highway guardrail
Material
Q235B/Q345B
Surface Treatment
Hot Dipped Galvanized
zinc Coating
70-85μm
specifications
120*55*7.0*9.0
150*100*4.3*5.5
Standard
JT/T281/AASHTO M180
Process
Hot rolled steel
MOQ
20MT
Advantages of H channel galvanized steel posts for highway guardrail:
* Fully hot dip galvanized to AS/NZS4680.
* Superior performance, High strength, high hardness
* Easy transportation, storage and handling
* Long life and durability
* Simple design
* Cost effective
Installation Instructions
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 7
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 8
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 9
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 10
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 11
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 12
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 13
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 14
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 15
Company Profile
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 16
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 17
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 18
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 19
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 20
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 21
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 22
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 23
Recommend Products
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 24
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 25
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 26
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 27
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 28
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 29
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 30
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 31
ISO9001 2008 Approved Metal Steel Highway Guardrail H Post with Anti-corrosion Feature 32
FAQ
1. How can I get a quotation from you ?
You can leave us message, and we will reply every message in time. Or we can text with each other by Email , Trademanager,
Whatsapp, Skype etc.
And you can also find our contact information on contact page.

2.Can I get samples before order ?
Yes.Usually our samples are free. we can produce by your samples or technical drawings. We can build the molds and fixtures.

3. What is your delivery time ?
The time of delivery is usually around 1 month(1*40FT as usual).
We can send out in 2 days, if it has stock.

4.What is your payment terms?
Our usual payment term is 30% deposit, and rest against B/L. L/C is also acceptable.Trade terms are EXW,FOB,CFR,CIF,DDU.

5. How can you guarantee what I got will be good ?
We are factory with 100% predelivery inspection which garantee the quality.
And as golden supplier on Alibaba. Alibaba assurance will make garantee,which means alibaba will pay your money back in advance if
there is any problem with the products.

6 How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.
