U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material

U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material

Large Image :  U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material

Product Details:
Place of Origin: Shandong, China
Brand Name: safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $10.00/pieces 200-1999 pieces
Supply Ability: 200000 Piece/Pieces per Year
Contact Now

U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material

Description
Product Name: Highway Guardrail Material: Stainless Steel
Color: Customized Application: Roadway Safety
Usage: Road Traffic Safety Feature: Anti-corrosion
Surface Treatment: Galvanized + Powder Coated Keyword: Traffic Road Steel Barrier
Certificate: ISO9001:2008 Packing: Standard Packing
Highlight:

channel guardrail post

,

anti-collision guardrail post

,

sale guardrail post

Products Description
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 0
Guardrail Post —— the component supporting the road safety barrier system
Guardrail post, as a holder of highway guardrails, generally determines the barrier's performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235, Q345 and Q255 or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters.

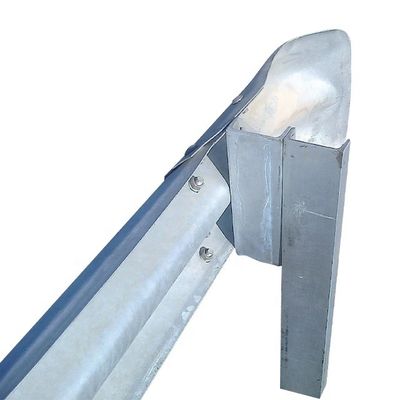

In the assembly of high-speed guardrail, the post plays the role of connecting the top and the bottom, that is to say, one end of the post is connected with the spacer and guardrail, and the other end is firmly fixed on the ground, so as to support the whole guardrail component and protect vehicles and pedestrians to deviate from the track due to impact on the guardrail.
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 1

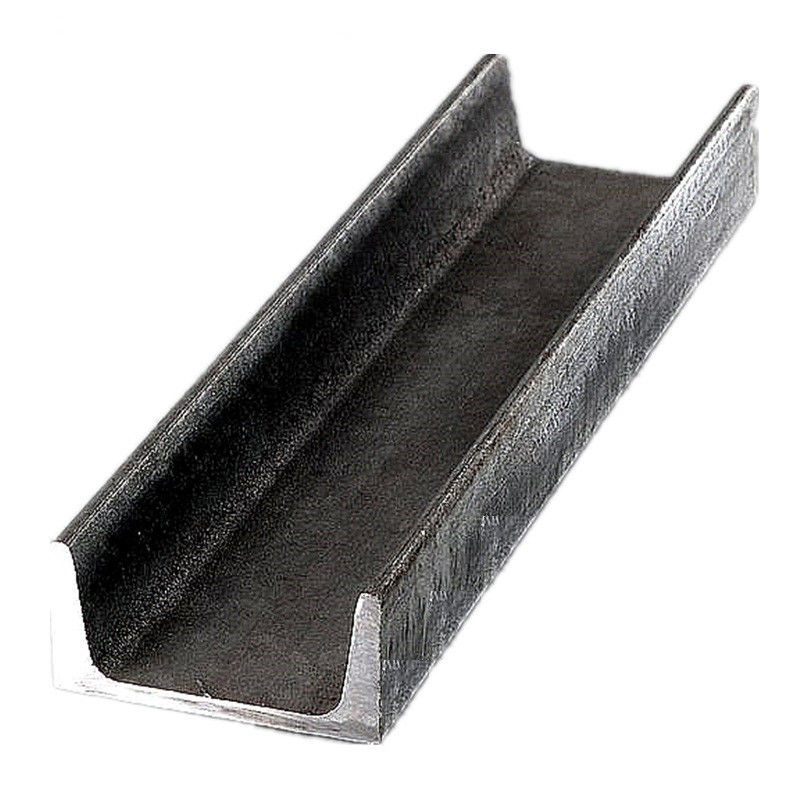

U channel Post is the most widely used column on the road guardrail
U channel post is the simplest structure in the road security guardrail and the most commonly used post in the international market. It is generally made of Q235 strip steel or higher grade strip steel according to the requirements of customers through punching machine and then through hydraulic bending machine forming.
One end of it is connected to the U channel spacer and the guardrail by bolts, and the other end is buried in the earth by a pile driver or fastened on the cement road surface by flannel, thus playing a supporting role for the whole guardrail and preventing vehicles or pedestrians from rushing out and causing secondary damage due to traffic accidents.
The surface of U channel post is generally treated by hot-dip galvanizing process. This surface treatment method can effectively prevent corrosion, withstand high temperature and have a long life. Meanwhile, its appearance is simple and easy to assemble and replace accessories.
Product Paramenters
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 2
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 3
Name
U channel Post for highway guardrail
Material
 Q235B ( S235JR )
 Q345 (S355JR )
Surface treatment
Hot Dipped Galvanized
Thickness
4.0/5.0/5.5/6.0mm
Specifications
100*55 /150*75 /150*100 /178*76
Zinc coating
70-85μm
Standard
AASHTO M180  EN ISO 1461
 Chinese National Standard
Application
Highway/road safey barriers part
Certificate
SGS/ISO 9001
MOQ
20MT

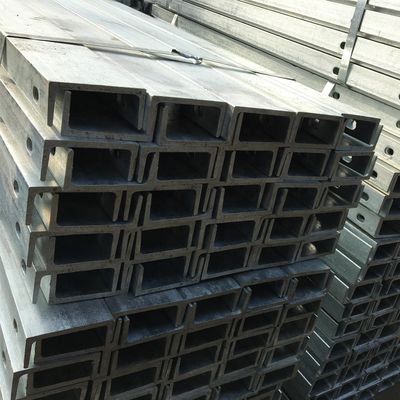

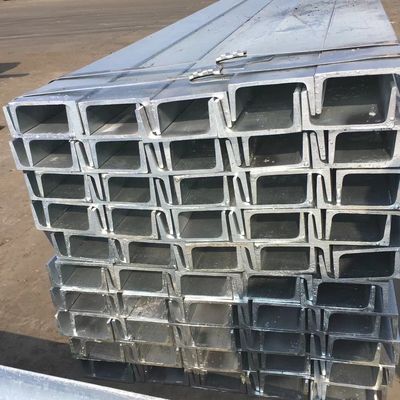

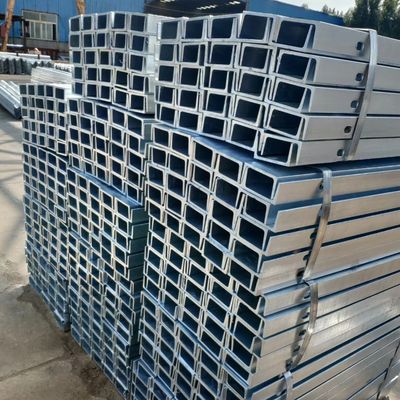

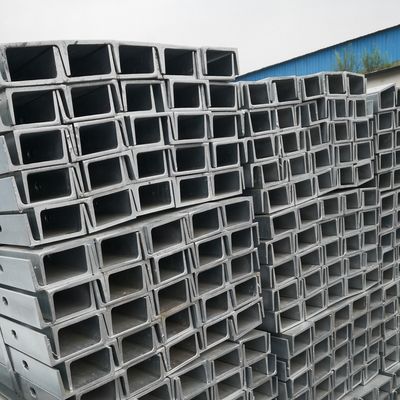

Details Images
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 4
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 5
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 6
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 7
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 8
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 9
Manufacturing Technique
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 10
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 11
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 12
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 13
Advantages
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 14
◆Great corrosion resistant
◆high intensity
◆long and durable
◆good impact resistance
◆low cost
◆long life
◆higher security
◆environmental protection
Recommend Products
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 15
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 16
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 17
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 18
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 19
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 20
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 21
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 22
U Channel Highway Guardrail Post for Traffic Road Safety Stainless Steel Material 23
FAQ
Q1: Are you trade company or guardrail factory?
A: We are guardrail factory, self making and self marketing.

Q2: What's your payment terms for guardrail order?
A: We supply our guardrail by below payment terms:
1) 30% in advance by T/T ,70% by L/C;
2) 100% by L/C;
3) Negotiate according to the order status.

Q3: Which delivery terms do you do for guardrails?
A: FOB China port is recommended for guardrails, but CNF/CIF destination port is also acceptable.

Q4: What is the delivery time for guardrails?
A: Normal production time for guardrail sets will be about 35 days, and the final delivery time will be confirmed according to the
guardrail order items and quantities.

Q5: Can you do the official test for the guardrail order, which authoritative organization is recommend?
A: Yes, the test for guardrail order can be arranged as per requirement, SGS test is recommended, and we could even do the test
report in the name of customers' company.

Q6: Can you provide guardrail samples?
A: Yes, we could provide sample service.
