Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection

Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection

Large Image :  Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 10 tons
Price: $50.00/tons 10-99 tons
Packaging Details: Export standard bundle or as clients request
Supply Ability: 200000 Piece/Pieces per Year
Contact Now

Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection

Description
Product Name: UPN 120 Post For Guardrail Material: Q235 Q345
Application: Roadway Safety Surface Treatment: Hot Dippe Galvanized
Certificate: CE/ISO 9001/ISO14001/ISO 18001 Feature: Easily Assembled
Keyword: Highway Guardrail Post Standard: JT/T281/AASHTO M180
Package: 100pcs/ctn Usage: People Safe
Port: Qingdao, Tianjin Port, China

Products Description

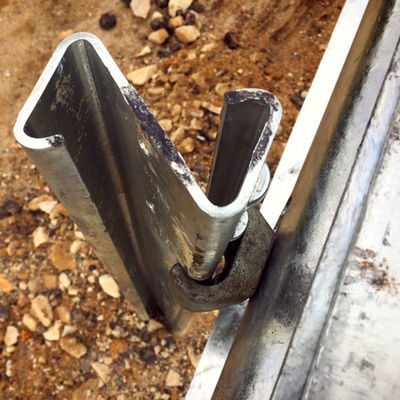

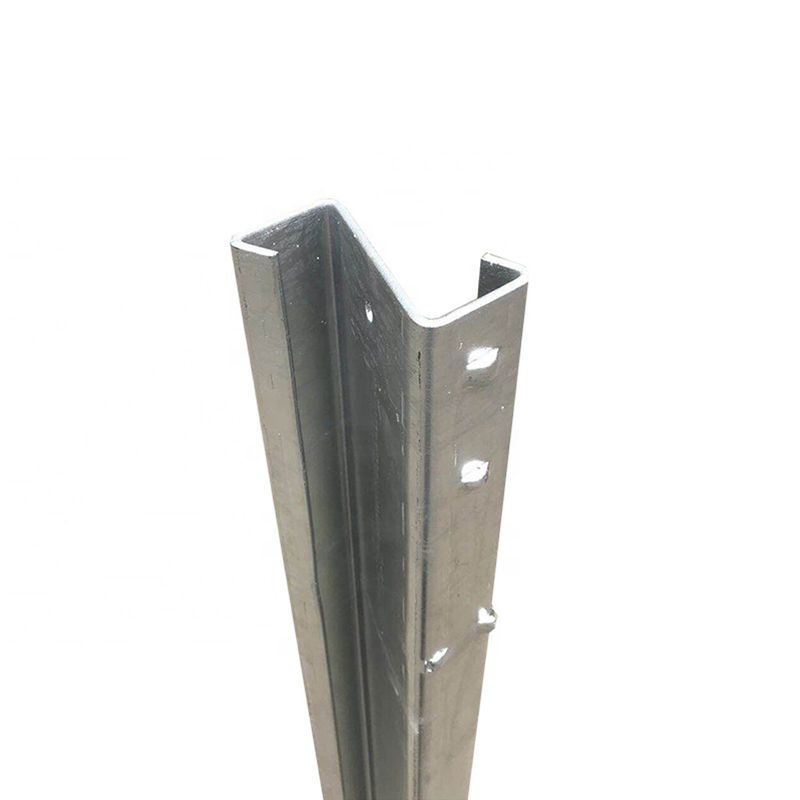

Z guardrail post is is commonly used in Australia

Introducing Z guardrail post, a member of the highway guardrail family, the next generation steel guardrail barrier providing superior motorist safety and more metres of barrier for your dollar.
Z guardrail post is crash tested to the latest performance standard distinguishing it from the existing Australian public domain guardrail barriers. The Z-post profile shields post edges from vulnerable road users and provides sectional strength when driving through difficult conditions.

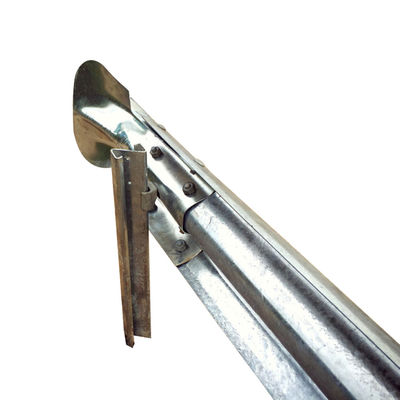

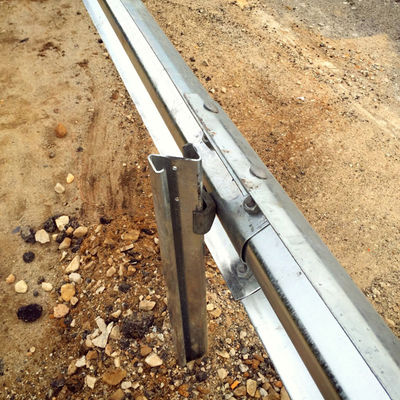

An Ezy-Carriage is used to secure the w-beam rails to the posts eliminating the requirement for blocking pieces and rail
stiffening plates. This unique connection provides a soft ride-down for the occupants and smooth vehicle containment and redirection.
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 0
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 1
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 2
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 3
Ezy-Guard Smart rails and Z-posts are manufactured from hot-rolled steel flat products in accordance with AS/NZS 1594. These items are hot dip galvanized in accordance with AS/NZS 4680 after fabrication leaving no surface untreated.
Vulnerable road users include motorcyclists, pedestrians, cyclists and other road users. Ezy-Guard Smart has been designed to provide consideration to vulnerable road users as follows:
Rounded Post Corners. The Z-post contains smooth, rounded post edges and corners mitigating the risk and severity of fractures and/ or contusions. Energy Absorbing, Ductile Z-Posts. Unlike traditional guardrail posts, the Z-posts are designed to yield by bending near ground level. This bending action absorbs impact energy reducing the potential for post fracturing. A fractured or split guardrail post presents a significant laceration hazard to vulnerable road users. The Ezy-Guard Smart design does not contain any elements that become projectiles and there are no aggressive edges. Shielded Posts.

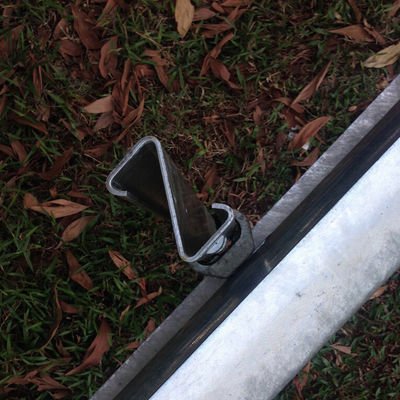

The revolutionary design of Ezy-Guard Smart shields the top of the supporting Z-posts by positioning the top of the rail above the posts. This eliminates dangerous snag points, reducing the potential for the barrier to dismount motorcyclists or cyclists. This is a significant safety benefit compared to all guardrail and cable barrier designs currently used within Australia.
Details Images
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 4
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 5
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 6
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 7
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 8
Manufacturing Technique
EzyGuard Smart is the next generation of steel guardrail barriers featuring a smart design, rapid installation and driver
confidence. EzyGuard Smart has been fully crash tested and evaluated according to the specifications for Test Level 3 (TL-3) of the AASHTO Manual for Assessing Safety Hardware (MASH). Using up to 40% less steel than conventional guardrail barriers, the EzyGuard Smart design features specially engineered Z-posts and EzyGuard sliders.
The Z-posts are manufactured from galvanised cold rolled steel, keeping their manufacturing very simple and cost competitive with traditional barrier systems. EzyGuard sliders are used to secure the W-beam rails to the Z-posts and eliminate the requirement for blocking pieces and rail stiffening plates. This unique connection provides a soft ride-down for vehicle occupants and smooth vehicle containment and redirection.
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 9
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 10
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 11
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 12
Advantages
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 13
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 14
◆High performing, low cost system
◆Compact footprint system: only 200mm
◆Very low part count, no blockouts are required
◆ Exceptional post-impact vehicle control and behaviour
◆Light system which allows for efficient handling and transport
◆Compatible with standard guardrail components, many transitions available to Terminal Ends and other barrier systems
◆width Proprietary steel post allows for “Driven” installation without predrilling, accelerating installation and impact repair process
◆ Patented post design allows the guardrail to dynamically adjust the rail height during impact compensating for different vehicle sizes and trajectories

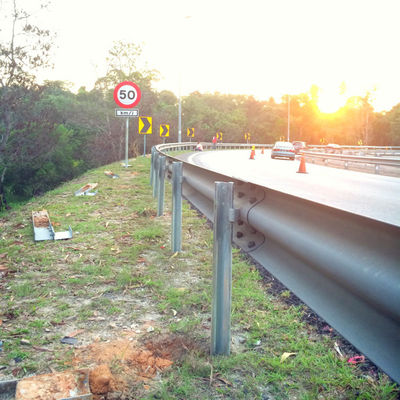

The Construction Site
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 15
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 16
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 17
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 18
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 19
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 20
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 21
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 22
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 23
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 24
Recommend Products
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 25
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 26
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 27
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 28
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 29
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 30
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 31
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 32
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 33
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 34
Easily Assembled Hot Dip Galvanized Highway Guardrail Z Post for Traffic Protection 35
FAQ
1.Are you a trader or factory?
Yes,our factory is in Shandong, China.

2.How can i get a sample if i want to test the quality?
Yes, we would offer the samples. If you want to test the quality,please let me know and i would arrange you the samples.

3.How long is your delivery time?
We would offer you a best delivery time.we have a big factory, and our output would be more than 8 thousand tons per month.

4.What is your payment terms?
We accept T/T, L/C at sight and Alibaba Trade Assurance.
