Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive

Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive

Large Image :  Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 20 tons
Price: $800.00/tons 20-199 tons
Packaging Details: Export standard bundle or as clients request
Supply Ability: 2500 Ton/Tons per Year
Contact Now

Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive

Description
Product Name: H Post For Highway Guardrail Material: Q235 Q345
Application: Roadway Safety Usage: Road Traffic Safe
Surface Treatment: Hot Dippe Galvanized Feature: Anti-corrosion
Keyword: Highway Guardrail Post Certificate: ISO9001:2000
Port: Qingdao, Tianjin Port, China

Products Description
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 0

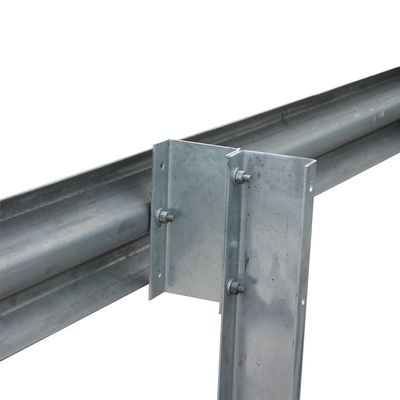

Guardrail Post —— the component supporting the road safety barrier system
Guardrail post, as a holder of highway guardrails, generally determines the barrier's performance during collisions. The guardrail posts we supply are well designed and made of high quality steel, such as Q235, Q345 and Q255 or depend on your needs. Additionally, it features a long service life due to its anti-rust and corrosion resistant characters.
In the assembly of high-speed guardrail, the post plays the role of connecting the top and the bottom, that is to say, one end of the post is connected with the spacer and guardrail, and the other end is firmly fixed on the ground, so as to support the whole guardrail component and protect vehicles and pedestrians to deviate from the track due to impact on the guardrail.
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 1

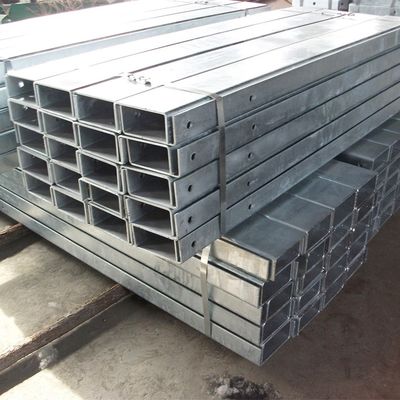

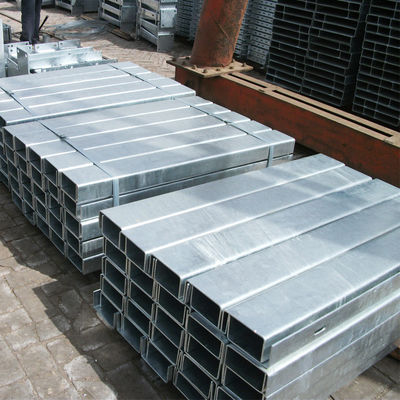

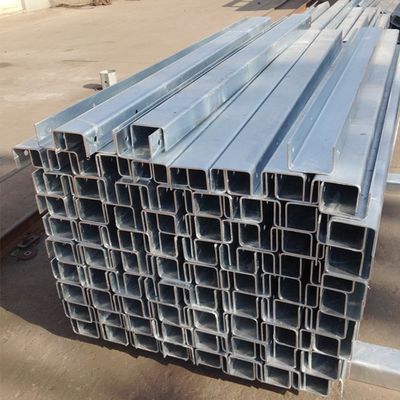

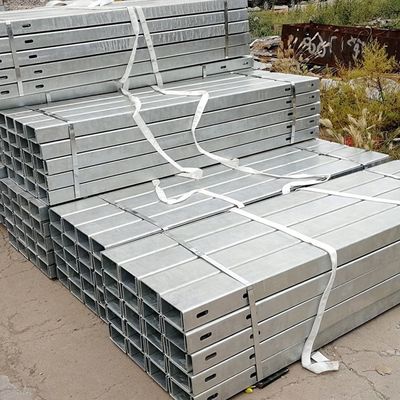

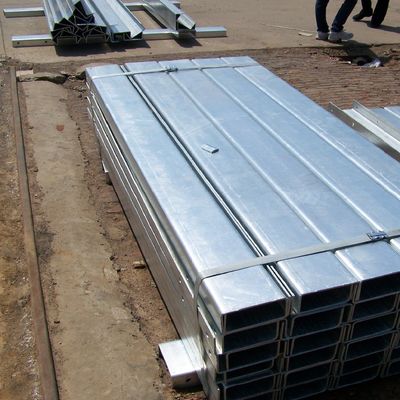

U Post is the most widely used column on the road guardrail
U-shaped post is the simplest structure in the road security guardrail and the most commonly used post in the international market. It is generally made of Q235 strip steel or higher grade strip steel according to the requirements of customers through punching machine and then through hydraulic bending machine forming.
After forming, the U-shaped post is in the shape of U. One end of it is connected to the U-shaped spacer and the guardrail by bolts, and the other end is buried in the earth by a pile driver or fastened on the cement road surface by flannel, thus playing a supporting role for the whole guardrail and preventing vehicles or pedestrians from rushing out and causing secondary damage due to traffic accidents.
The surface of U-shaped post is generally treated by hot-dip galvanizing process. This surface treatment method can effectively prevent corrosion, withstand high temperature and have a long life. Meanwhile, its appearance is simple and easy to assemble and replace accessories.
Product Paramenters
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 2
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 3
Name
U Post for highway guardrail
Material
 Q235B ( S235JR )
 Q345 (S355JR )
Surface treatment
Hot Dipped Galvanized
Thickness
4.0/5.0/5.5/6.0mm
Specifications
100*55 /150*75 /150*100 /178*76
Zinc coating
70-85μm
Standard
AASHTO M180  EN ISO 1461
 Chinese National Standard
Application
Highway/road safey barriers part
Certificate
SGS/ISO 9001
MOQ
20MT
Details Images
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 4
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 5
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 6
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 7
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 8
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 9
Manufacturing Technique
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 10
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 11
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 12
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 13
Advantages
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 14
◆Great corrosion resistant
◆high intensity
◆long and durable
◆good impact resistance
◆low cost
◆long life
◆higher security
◆environmental protection
Recommend Products
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 15
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 16
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 17
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 18
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 19
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 20
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 21
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 22
Anti-corrosion U-shaped Highway Guardrail for Roadway Safety at Competitive 23
FAQ
Q1: Are you trade company or guardrail factory?
A: We are guardrail factory, self making and self marketing.

Q2: What's your payment terms for guardrail order?
A: We supply our guardrail by below payment terms:
1) 30% in advance by T/T ,70% by L/C;
2) 100% by L/C;
3) Negotiate according to the order status.

Q3: Which delivery terms do you do for guardrails?
A: FOB China port is recommended for guardrails, but CNF/CIF destination port is also acceptable.

Q4: What is the delivery time for guardrails?
A: Normal production time for guardrail sets will be about 35 days, and the final delivery time will be confirmed according to the
guardrail order items and quantities.

Q5: Can you do the official test for the guardrail order, which authoritative organization is recommend?
A: Yes, the test for guardrail order can be arranged as per requirement, SGS test is recommended, and we could even do the test
report in the name of customers' company.

Q6: Can you provide guardrail samples?
A: Yes, we could provide sample service.
