Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards

Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards

Large Image :  Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Model Number: 100*50
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $50.00/pieces 20-199 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 12000 Ton/Tons per Month
Contact Now

Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards

Description
Application: Roadway Safety Material: Q235 Q345
Zinc Coating: 550-600g/㎡,Customized Color: Customized
Certificate: CE/BV/ISO 9001/ISO14001/ISO 18001 Product Name: Highway Guardrail
Usage: Outdoor Security Standard: AASHTO M-180
Technology: Hot Galvanized+cold Rolled Surface Treatment: Galvanized ,Powder Coated
Port: Qingdao Tianjin Ningbo Shanghai Port, China
Highlight:

galvanize steel guardrail

,

galvanize steel guardrails

,

safety barrier steel guardrails

HIGHWAY GUARDRAIL
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards 0
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards 1

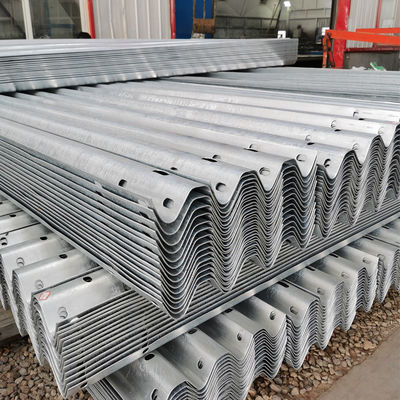

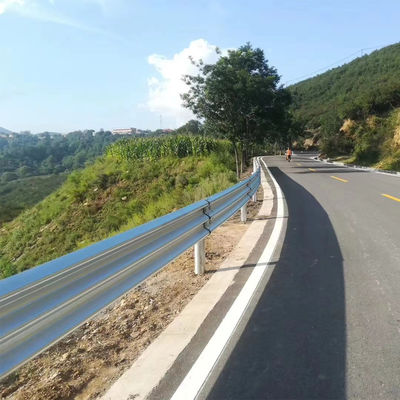

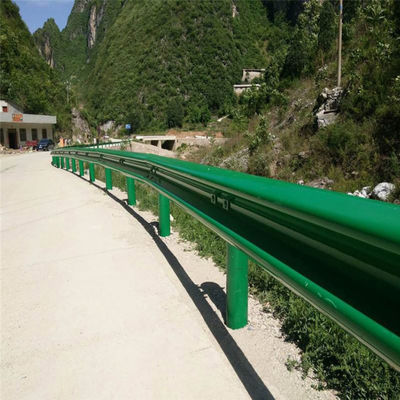

Steel beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects.

So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.

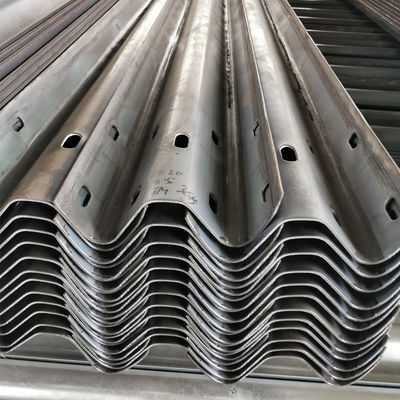

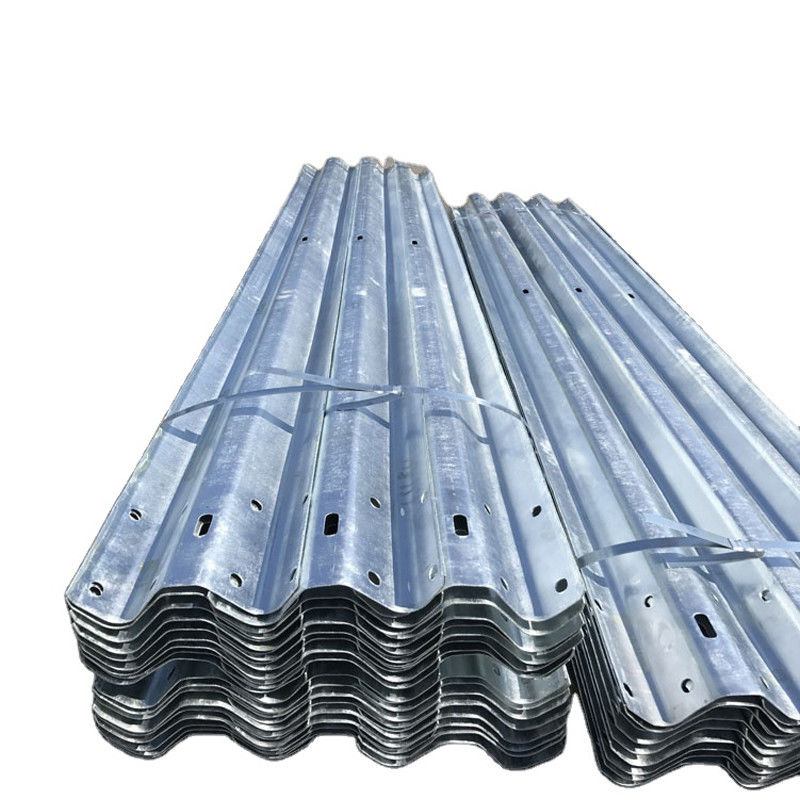

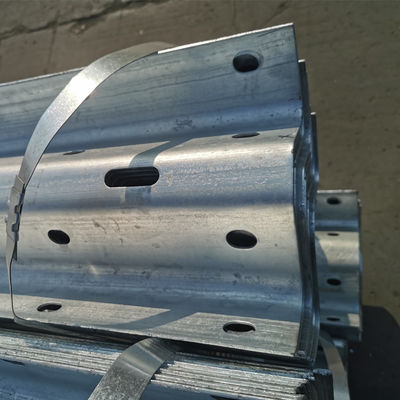

There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited.

All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards, AASHTO M180 Standard, SANA
1350 Standard and etc.
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards 2
American AASHTO-M180 Technical Standard W-beam Highway Guardrail
TYPE
Overall Length
(mm)
Effection Length
(mm)
Norminal Uncoated Thickness
(mm)
TYPE I
4130
3810
2.67
TYPE II
4320
4000
2.67
MECHANICAL
PROPERTIES
◆Material grade: S355JR
◆Yield Point, minimum, 345Mpa (50000psi);
◆Tensile Strength, minimum 483Mpa (70000psi); and
◆Elongation, in 50mm (2 in.),minimum, 12 percent.
NOTES
●Thickness of Zinc coating: 550g/㎡ or1100g/㎡;
●The beams may galvantzed before or after fabrication;
●We can customize the length and thickness according to customer requirements.
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards 3
Item
Data
Solar cell
(monocrystalline silicon) 2.5V/ 120mAh
Working time
72 hours for 8 hours at a time;
Energy storage element
Rechargeable battery 1.2V/ 600mAh
Material
cast aluminum alloy shell + bulletproof PC
Working environment
-20℃ ~ 70℃;
Starting light intensity
positive light is less than 500Lux;
Display colors
red, yellow, white, blue and green
Visual distance
greater than 1000m
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards 4
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards 5
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards 6
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards 7
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China.We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.

Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance,moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors andother road safety products such as road suds.

Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
RECOMMENDED PRODUCTS
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards 8
Glass Road Stud
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards 9
Guardrail Post and Spacer
Galvanized Technology Galvanize Steel Highway Guardrail Road Safety Barrier for Standards 10
Solar Aluminium Road Stud

FAQ

1.Q:Are you a factory or trading company?
A:We are factory which has been in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples. Please send a sample inquiry and leave us your email address, then we will send you more information about the samples for your reference.

4.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
