Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal

Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal
Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal

Large Image :  Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $15.00/pieces 10-99 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 50000 Piece/Pieces per Year
Contact Now

Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal

Description
Material: Q235 Q345 Application: Roadway Safety
Surface Treatment: Galvanized + Powder Coated Product Name: Highway Guardrail
Color: Customized Size: Customized Size
Name: Galvanized Highway Guardrail Feature: Anti-corrosion
Usage: Outdoor Security Type: Wave Shape
Port: Qingdao, Tianjin Port, China
Highlight:

end wings safety barrier

,

steel safety barrier

,

road safety barrier

HIGHWAY GUARDRAIL

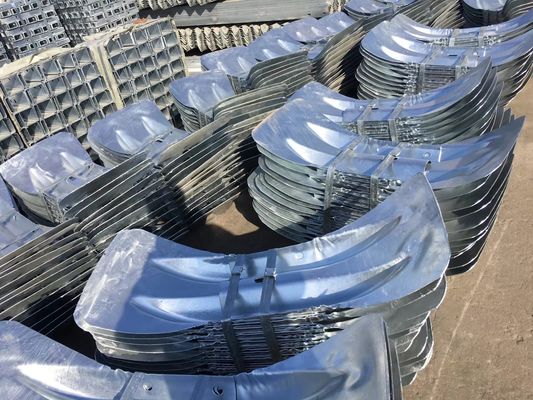

Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 0

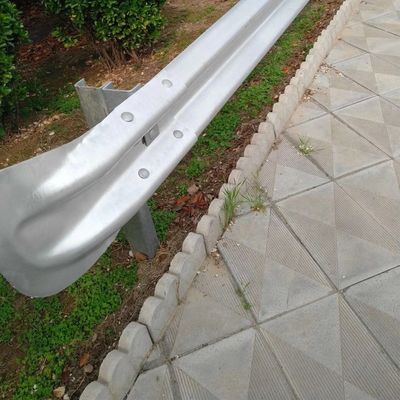

Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 1
The ”end“ of the highway guardrail is found at the end of the road guardrail or at the joint section, which is composed of an "end“, this is because the road conditions differ and therefor the road guardrail end is divided into a variety of styles to
accommodate different types of roads. Depending on the guardrail design, the guardrail end is generally divided into the following types: 1. Fishtail End,
2. Buffer End,
3. Round End(bullnose end),
4. Ground anchor end,
5. Bridge End,
6. Extruded guardrail end, etc.

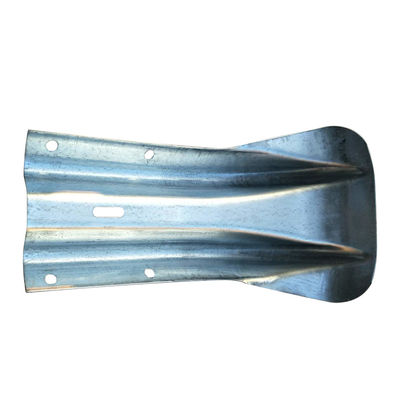

Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 2
The fashtail end, is a European and American countries design concept, it is shaped like a fish's tail, so it is called the fashtail end, it can also be called an endwing. It consists of the strip which is formed after punching and forming a molding.

This product is simple and easy to assemble, and through the surface hot galvanizing processing it undergoes it as gained a strong anti-corrosion ability, it can play a guiding role to the cars on the road, it reduces the effect of collisions and it effectively prevents the vehicle from leaving the road.


The fishtail end is divided into two types of specifications and models with W beam and Thrie beam. W beams are used with a W beam guardrail plate, and Thrie beams are used with a Thrie beam guardrail plate.

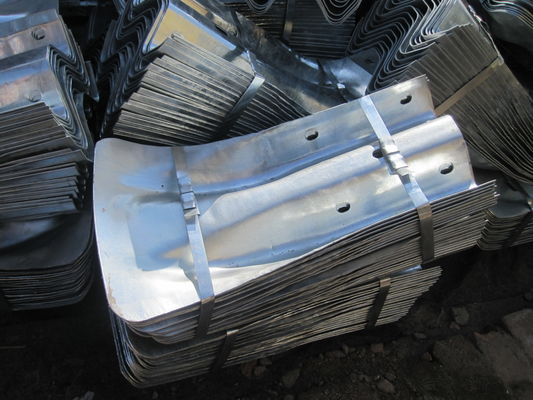

Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 3
Specifications:
Materials: Steel(Q235 or Q345 Grade)
Length: 700,710,730 mm or customized
Wave Width: 310, 506,460mm or customized
Wave Height: 83,85,310mm or customized
Thickness: 2.75mm,3mm,4mm or customized
Zinc Coating: 350- 550g/m2Surface treatment:Hot dipped Galvanized or powder coating
Features:Great corrosion resistant, high intensity, long and durable
American AASHTO-M180 Technical Standard W-beam Highway Guardrail
TYPE
Overall Length
(mm)
Effection Length
(mm)
Norminal Uncoated Thickness
(mm)
TYPE I
4130
3810
2.67
TYPE II
4320
4000
2.67
MECHANICAL
PROPERTIES
◆Material grade: S355JR
◆Yield Point, minimum, 345Mpa (50000psi);
◆Tensile Strength, minimum 483Mpa (70000psi); and
◆Elongation, in 50mm (2 in.),minimum, 12 percent.
NOTES
●Thickness of Zinc coating: 550g/㎡ or1100g/㎡;
●The beams may galvantzed before or after fabrication;
●We can customize the length and thickness according to customer requirements.
Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 4
Item
Data
Solar cell
(monocrystalline silicon) 2.5V/ 120mAh
Working time
72 hours for 8 hours at a time;
Energy storage element
Rechargeable battery 1.2V/ 600mAh
Material
cast aluminum alloy shell + bulletproof PC
Working environment
-20℃ ~ 70℃;
Starting light intensity
positive light is less than 500Lux;
Display colors
red, yellow, white, blue and green
Visual distance
greater than 1000m

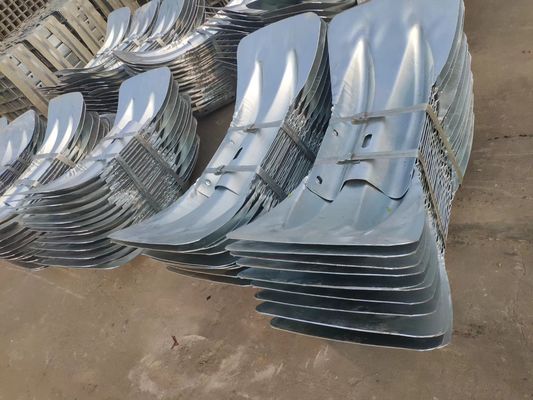

Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 5
Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 6
Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 7
Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 8
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China.We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.

Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance,moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors andother road safety products such as road suds.

Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
RECOMMENDED PRODUCTS
Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 9
Highway guardrail
Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 10
Solar aluminium road stud
Anti-corrosion Road Safety Barrier End Wings with Q235 Q345 Steel Fishtail Terminal 11
Glass road stud

FAQ

1.Q:Are you a factory or trading company?
A:We are factory which has been in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples. Please send a sample inquiry and leave us your email address, then we will send you more information about the samples for your reference.

4.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
