AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End

AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End

Large Image :  AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Model Number: 100*50
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $10.00/pieces 200-1999 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 12000 Ton/Tons per Month
Contact Now

AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End

Description
Color: Customized Material: Q235 Q345
Product Name: Highway Guardrail Application: Roadway Safety
Zinc Coating: 550-600g/㎡,Customized Surface Treatment: Galvanized ,Powder Coated
Certificate: CE/BV/ISO 9001/ISO14001/ISO 18001 Usage: Outdoor Security
Standard: AASHTO M-180 Technology: Hot Galvanized+cold Rolled
Port: Qingdao Tianjin Ningbo Shanghai Port, China

Product Overview

FISHTAIL END

The ”end“ of the highway guardrail is found at the end of the road guardrail or at the joint section, which is composed of an
"end“, this is because the road conditions differ and therefor the road guardrail end is divided into a variety of styles to
accommodate different types of roads. Depending on the guardrail design, the guardrail end is generally divided into the following types:
1. Fishtail End,
2. Buffer End,
3. Round End(bullnose end),
4. Ground anchor end,
5. Bridge End,
6. Extruded guardrail end, etc.
The fashtail end, is a European and American countries design concept, it is shaped like a fish's tail, so it is called the
fashtail end, it can also be called an endwing. It consists of the strip which is formed after punching and forming a molding. This product is simple and easy to assemble, and through the surface hot galvanizing processing it undergoes it as gained a strong anti-corrosion ability, it can play a guiding role to the cars on the road, it reduces the effect of collisions and it effectively prevents the vehicle from leaving the road.
The fishtail end is divided into two types of specifications and models with W beam and Thrie beam. W beams are used with a W beam guardrail plate, and Thrie beams are used with a Thrie beam guardrail plate.
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 0

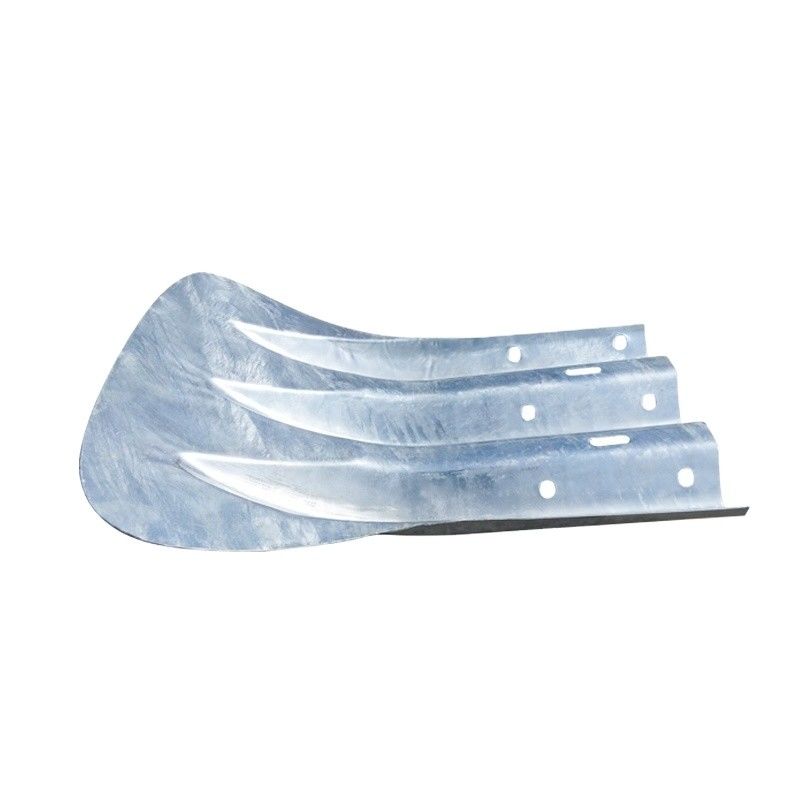

The fishtail end for thrie beam guardrail.
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 1

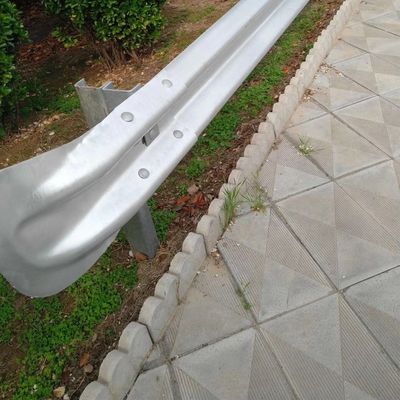

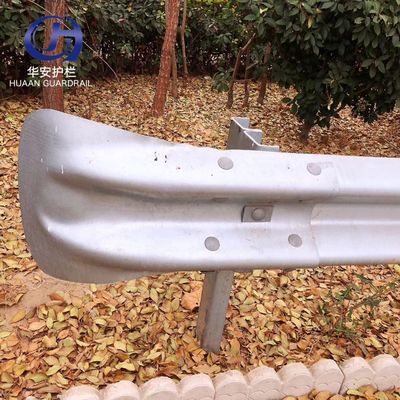

The fishtail end for w beam guardrail.
FEATURES AT A GLANCE
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 2
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 3
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 4

AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 5

PRODUCT SPECIFICATIONS
SPECIFICAIONS
Data
Material
Steel(Q235 or Q345 Grade)
Length
700,710,730 mm or customized
Wave Width
310, 506,460mm or customized
Wave Height
83,85,310mm or customized
Thickness
2.75mm,3mm,4mm or customized
Zinc Coating
350- 550g/m2
Surface treatment
Hot dipped Galvanized or powder coating
Display colors
red, yellow, white, blue and green
Features
Great corrosion resistant, high intensity, long and durable
Manufacturing Technique
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 6
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 7
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 8
SIMILAR PRODUCTS
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 9
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 10
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 11
Company Profile
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 12
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 13
AASHTO M-180 Certified Highway Guardrail Fish Tail End Guardrail Terminals End 14
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.
Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.
Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
FAQ
1.Q:Are you a factory or trading company?
A:We are factory which has been in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to
visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples. Please send a sample inquiry and leave us your email address, then we will send you more
information about the samples for your reference.

4.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the
very end. Our factory has gained ISO 9001 and SGS authentication.
