Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item

Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item

Large Image :  Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 25 tons
Price: $740.00/tons 25-199 tons
Packaging Details: Export standard bundle or as clients request
Supply Ability: 12000 Ton/Tons per Month
Contact Now

Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item

Description
Zinc Coating: 550-600g/㎡,Customized Color: Customized
Material: Q235 Q345 Standard: AASHTO M-180
Product Name: Highway Guardrail Technology: Hot Galvanized+cold Rolled
Usage: Outdoor Security Application: Roadway Safety
Certificate: CE/BV/ISO 9001/ISO14001/ISO 18001 Surface Treatment: Galvanized ,Powder Coated
Port: Qingdao Tianjin Ningbo Shanghai Port, China
Highlight:

traffic barriers 3 beam

,

sale traffic barrier

,

traffic barrier q345

Products Description

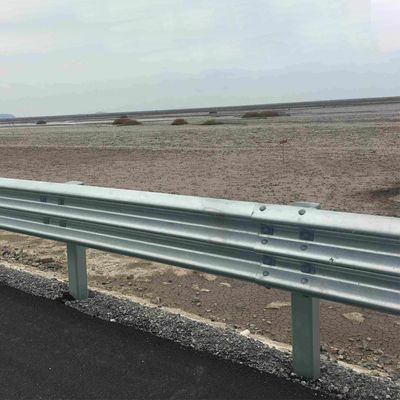

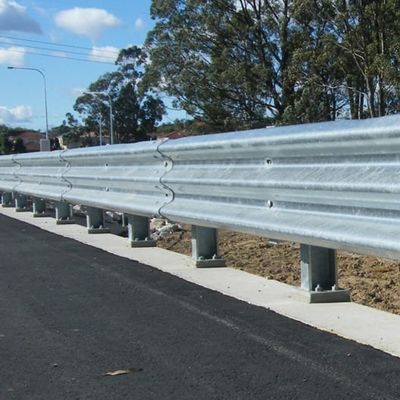

Steel beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.
There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited. All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards, AASHTO M180 Standard, SANA 1350 Standard and etc.
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 0
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 1
Product Paramenters
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 2
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 3
American  AASHTO-M180 Technical Standard W-beam highway guardrail
TYPE
Overall Length
(mm)
Effection Length
 (mm)
Norminal Uncoated Thickness
 (mm)
TYPE Ⅰ
4130
3810
2.67
TYPE Ⅱ
4320
4000
2.67

MECHANICAL PROPERTIES
◆Material grade: S355JR
◆Yield Point, minimum, 345Mpa (50000psi);
◆Tensile Strength, minimum 483Mpa (70000psi); and
◆Elongation, in 50mm (2 in.),minimum, 12 percent.

NOTES
●Thickness of Zinc coating: 550g/㎡ or1100g/㎡;
●The beams may galvantzed before or after fabrication;
●We can customize the length and thickness according to customer requirements.


Manufacturing Technique
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 4
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 5
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 6
Details Images
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 7
C POST+BOX SPACER
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 8
CHANNEL POST+CHANNEL SAPCER
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 9
C POST+C SPACER
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 10
U POST+U SPACER
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 11
H POST+ BRACKET
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 12
C POST+TRAPEZOIDAL SPACER
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 13
SIGMA POST+ BRACKET
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 14
H POST+H SPACER
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 15
Z POST+STEEL CLIP
Company Profile
Established in 2015, Shandong Safebuild Traffic Facilities Co., Ltd. is located in Economic Development Zone of guan County, Liaocheng City, Shandong Province, China, which is near by jiguan Highway. specialized in manufacturing and exporting Highway Guardrail and accessories. Safebuild Traffic Facilities Co., Ltd. covers an area about 7,000 square meters, has 120 employees and 8 senior engineers. With an annual production capacity of 200,000 tons, Safebuild company has continuously invested in two Hot-dip galvanizing lines, two hot-dip aluminum production lines,two electrostatic spray production lines and one hot-dip coated production line.
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 16
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 17
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 18
The company has advanced guardrail plate forming machine, which can realize the strip head removal, smoothing, punching, cutting, forming, leveling and other working procedure, so that the guardrail has good consistency, high processingaccuracy, low production cost, which is widely recognized by the market.
The company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the differentconstruction environment, corresponding surface treatment can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance.
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 19
BENDING MACHINE
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 20
DECOILER
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 21
PUNCHING MACHINE
We are spreaded to 8,000 km since it is established around China and successfully exported to other countries, like Russia and Malaysia, Algeria, Singapore, South Africa, Mozambique, Ghana, Brazil, etc. We have been holding a scientific, rigorous, normative and standardized pragmatic style , and developing impeccable inspection organization to to make sure all of our products quality are in line with national standards, industry standards and enterprise standards. Safebuild people, with our professional, whole-hearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients, create brilliant!
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 22
RAW MATERIAL WAREHOUSE
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 23
PRODUCTS WAREHOUSE
Recommend Products
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 24
C POST FOR GUARDRAIL
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 25
H POST FOR GUARDRAIL
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 26
U POST FOR GUARDRAIL
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 27
Z POST FOR GUARDRAIL
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 28
BOX SPACER FOR GUARDRAIL
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 29
FISHTAIL END FOR GUARDRAIL
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 30
TERMINAL CONNECTOR
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 31
BEND GUARDRAIL
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 32
RADIAN GUARDRAIL
Product packaging
Focusing on the export business of transportation facilities, the company has rich packing and packing experience for container loading. Among them, the guardrail plate is packed with steel wire rope, the post is transported by pallet, and the spacer and other guardrail accessories are shipped in ton package. This assembly method ensures that the products arrive at the destination port and is convenient for loading and unloading.
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 33
The packing of guardrail adopts bundling method, which is convenient for loading and unloading. It can also keep the balance of containers and facilitate transportation.
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 34
The packing of guardrail post adopts the well shaped binding method, which has strong firmness and is easy to be loaded and unloaded by forklift.
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 35
We use ton bags or simple wooden cases for packing accessories of guardrail, which is convenient for loading and unloading, and installation after arrival.
Our Advantages
Customized Galvanized 3 Beam Traffic Barrier for Q235 Q345 Highway Guardrail Hot Item 36
◆Professional manufacturers and suppliers of safety protection products;
◆The company has many years of export experience, the export share is about 50%; ◆According to customer requirements, design, research and development, customized products; ◆Provide one-to-one online installation guidance and 24-hour service hotline : + 86-635-7070701;
