Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management

Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management

Large Image :  Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $60.00/pieces 200-1999 pieces
Contact Now

Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management

Description
Zinc Coating: 550-600g/㎡,Customized Color: Customized
Standard: AASHTO M-180 Material: Q235 Q345
Product Name: Highway Guardrail Technology: Hot Galvanized+cold Rolled
Application: Roadway Safety Usage: Outdoor Security
Certificate: CE/BV/ISO 9001/ISO14001/ISO 18001 Surface Treatment: Galvanized ,Powder Coated
Highlight:

q235 traffic barrier

,

sale traffic barrier

,

w beam traffic barriers

Products Description

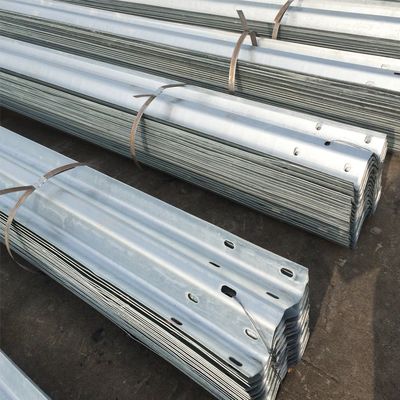

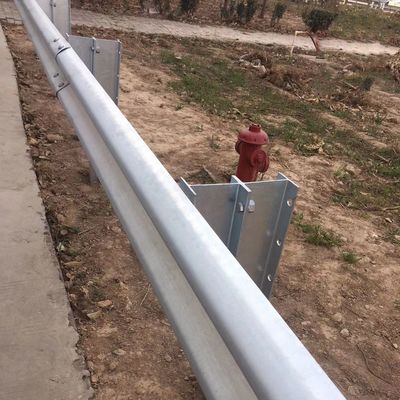

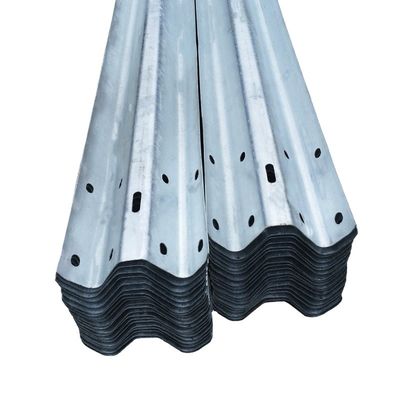

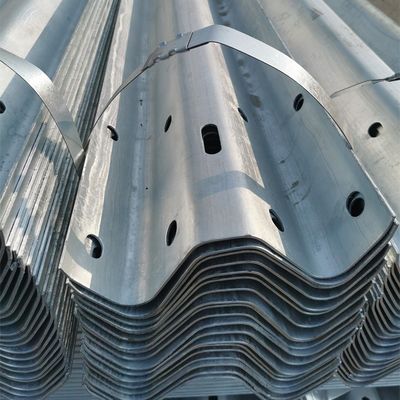

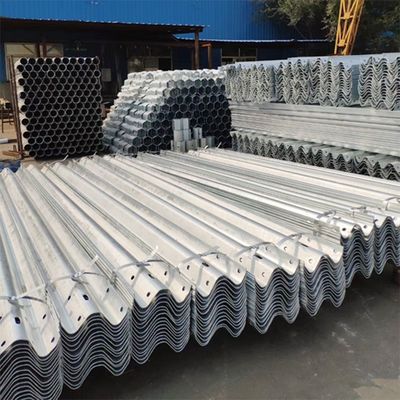

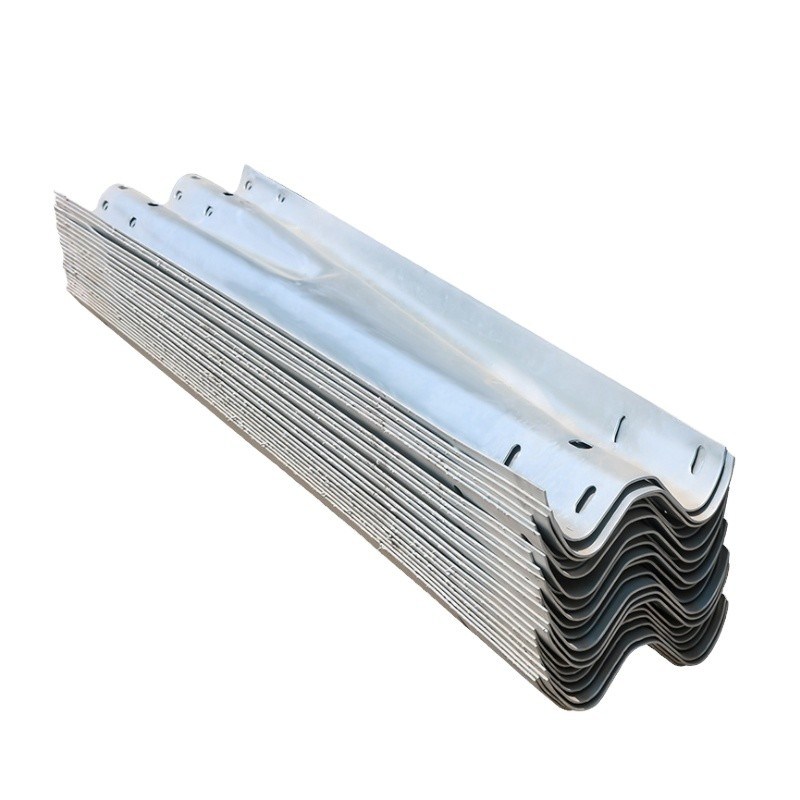

Steel beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.
There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited. All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards, AASHTO M180 Standard, SANA 1350 Standard and etc.
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 0
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 1
Product Paramenters
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 2
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 3
American  AASHTO-M180 Technical Standard W-beam highway guardrail
TYPE
Overall Length
(mm)
Effection Length
 (mm)
Norminal Uncoated Thickness
 (mm)
TYPE Ⅰ
4130
3810
2.67
TYPE Ⅱ
4320
4000
2.67

MECHANICAL PROPERTIES
◆Material grade: S355JR
◆Yield Point, minimum, 345Mpa (50000psi);
◆Tensile Strength, minimum 483Mpa (70000psi); and
◆Elongation, in 50mm (2 in.),minimum, 12 percent.

NOTES
●Thickness of Zinc coating: 550g/㎡ or1100g/㎡;
●The beams may galvantzed before or after fabrication;
●We can customize the length and thickness according to customer requirements.


Manufacturing Technique
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 4
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 5
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 6
Details Images
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 7
C POST+BOX SPACER
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 8
CHANNEL POST+CHANNEL SAPCER
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 9
C POST+C SPACER
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 10
U POST+U SPACER
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 11
H POST+ BRACKET
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 12
C POST+TRAPEZOIDAL SPACER
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 13
SIGMA POST+ BRACKET
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 14
H POST+H SPACER
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 15
Z POST+STEEL CLIP
Company Profile
Established in 2015, Shandong Safebuild Traffic Facilities Co., Ltd. is located in Economic Development Zone of guan County, Liaocheng City, Shandong Province, China, which is near by jiguan Highway. specialized in manufacturing and exporting Highway Guardrail and accessories. Safebuild Traffic Facilities Co., Ltd. covers an area about 7,000 square meters, has 120 employees and 8 senior engineers. With an annual production capacity of 200,000 tons, Safebuild company has continuously invested in two Hot-dip galvanizing lines, two hot-dip aluminum production lines,two electrostatic spray production lines and one hot-dip coated production line.
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 16
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 17
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 18
The company has advanced guardrail plate forming machine, which can realize the strip head removal, smoothing, punching, cutting, forming, leveling and other working procedure, so that the guardrail has good consistency, high processingaccuracy, low production cost, which is widely recognized by the market.
The company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the differentconstruction environment, corresponding surface treatment can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance.
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 19
BENDING MACHINE
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 20
DECOILER
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 21
PUNCHING MACHINE
We are spreaded to 8,000 km since it is established around China and successfully exported to other countries, like Russia and Malaysia, Algeria, Singapore, South Africa, Mozambique, Ghana, Brazil, etc. We have been holding a scientific, rigorous, normative and standardized pragmatic style , and developing impeccable inspection organization to to make sure all of our products quality are in line with national standards, industry standards and enterprise standards. Safebuild people, with our professional, whole-hearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients, create brilliant!
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 22
RAW MATERIAL WAREHOUSE
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 23
PRODUCTS WAREHOUSE
Recommend Products
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 24
C POST FOR GUARDRAIL
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 25
H POST FOR GUARDRAIL
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 26
U POST FOR GUARDRAIL
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 27
Z POST FOR GUARDRAIL
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 28
BOX SPACER FOR GUARDRAIL
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 29
FISHTAIL END FOR GUARDRAIL
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 30
TERMINAL CONNECTOR
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 31
BEND GUARDRAIL
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 32
RADIAN GUARDRAIL
Product packaging
Focusing on the export business of transportation facilities, the company has rich packing and packing experience for container loading. Among them, the guardrail plate is packed with steel wire rope, the post is transported by pallet, and the spacer and other guardrail accessories are shipped in ton package. This assembly method ensures that the products arrive at the destination port and is convenient for loading and unloading.
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 33
The packing of guardrail adopts bundling method, which is convenient for loading and unloading. It can also keep the balance of containers and facilitate transportation.
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 34
The packing of guardrail post adopts the well shaped binding method, which has strong firmness and is easy to be loaded and unloaded by forklift.
Q235 Q345 W Beam Highway Guardrail for Roadway Safety and Traffic Management 35
We use ton bags or simple wooden cases for packing accessories of guardrail, which is convenient for loading and unloading, and installation after arrival.
