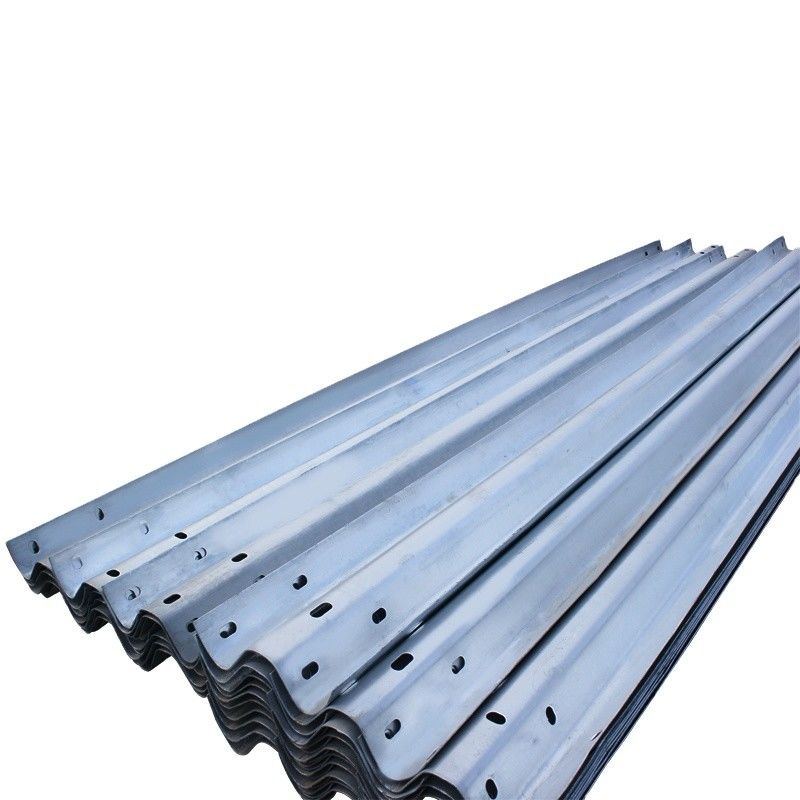

Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail

Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail

Large Image :  Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $60.00/pieces 200-1999 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 50000 Piece/Pieces per Year
Contact Now

Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail

Description
Product Name: H Spacer Of Highway Guardrail Material: Q235 Q345
Application: Roadway Safety Surface Treatment: Galvanized + Powder Coated
Usage: Outdoor Security Feature: Strong
Certificate: ISO9001:2000 Keyword: Highway Guardrail Spacer
Port: Qingdao, Tianjin Port, China
Highlight:

metal highway guardrail

,

metal w corrugated beam

,

highway guardrail w corrugated beam

HIGHWAY GUARDRAIL
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 0

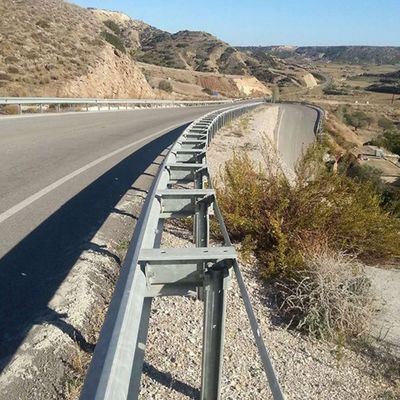

Steel beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding
out of the roads and impacting the roadside buildings or other objects.
So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection
against run-off-road collisions.
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 1
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 2

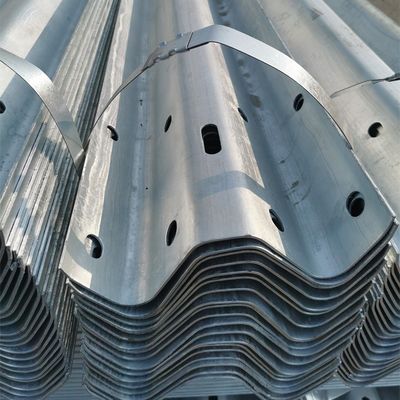

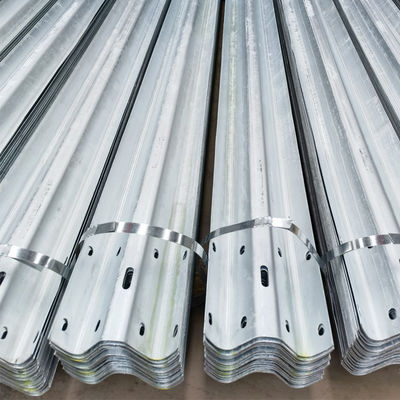

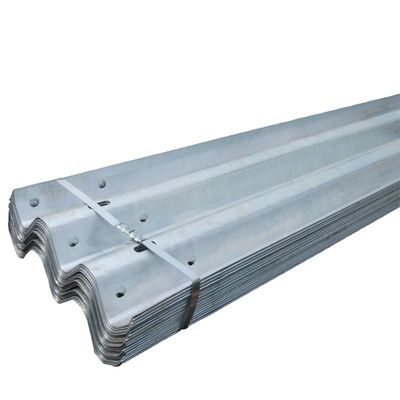

There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from
Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited.

All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards,
AASHTO M180 Standard, SANA 1350 Standard and etc.
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 3
American AASHTO-M180 Technical Standard W-beam Highway Guardrail



TYPE
Overall Length
(mm)
Effection Length
(mm)
Norminal Uncoated Thickness
(mm)
TYPE I
4130
3810
2.67
TYPE II
4320
4000
2.67
MECHANICAL
PROPERTIES
◆Material grade: S355JR
◆Yield Point, minimum, 345Mpa (50000psi);
◆Tensile Strength, minimum 483Mpa (70000psi); and
◆Elongation, in 50mm (2 in.),minimum, 12 percent.


NOTES
●Thickness of Zinc coating: 550g/㎡ or1100g/㎡;
●The beams may galvantzed before or after fabrication;
●We can customize the length and thickness according to customer requirements.


Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 4
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 5
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 6
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 7

Item
Data
Solar cell
(monocrystalline silicon) 2.5V/ 120mAh
Working time
72 hours for 8 hours at a time;
Energy storage element
Rechargeable battery 1.2V/ 600mAh
Material
cast aluminum alloy shell + bulletproof PC
Working environment
-20℃ ~ 70℃;
Starting light intensity
positive light is less than 500Lux;
Display colors
red, yellow, white, blue and green
Visual distance
greater than 1000m
Product Use
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 8
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 9
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 10
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 11
Company Profile
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 12
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 13
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 14
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 15
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China.We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.

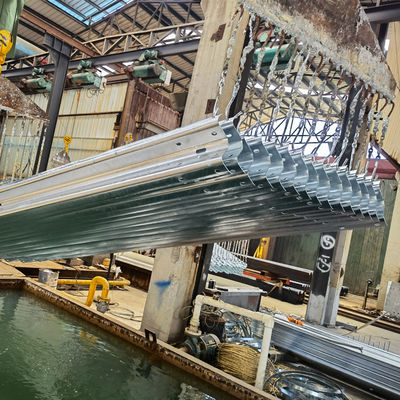

Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance,moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors andother road safety products such as road suds.

Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
RECOMMENDED PRODUCTS
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 16
Glass Road Stud
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 17
Guardrail Post and Spacer
Galvanized Q235 Q345 W Corrugated Beam Metal Highway Guardrail 18
Solar Aluminium Road Stud



FAQ
1.Q:Are you a factory or trading company?
A:We are factory which has been in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples. Please send a sample inquiry and leave us your email address, then we will send you more information about the samples for your reference.

4.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
