Hot Dipped Galvanized Q235 SJ235R Z Post for Road Steel Highway Guardrail Affordable

Large Image : Hot Dipped Galvanized Q235 SJ235R Z Post for Road Steel Highway Guardrail Affordable

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Safebuild

Payment & Shipping Terms:

Minimum Order Quantity:	20 tons
Price:	$705.00/tons 20-199 tons
Packaging Details:	Export standard bundle or as clients request
Supply Ability:	250000 Ton/Tons per Year

Contact Now

Hot Dipped Galvanized Q235 SJ235R Z Post for Road Steel Highway Guardrail Affordable

Description

Product Name:	Z Post Of Guardrail	Material:	Q235(SJ235R)
Application:	Roadway Safety	Usage:	Outdoor Security
Surface Treatment:	Hot Dippe Galvanized	Type:	Z Post
Feature:	High Durable	Keyword:	Highway Guardrail Post
Certificate:	ISO9001:2000	Standard:	AASHTO M-180
Port:	Qingdao, Tianjin Port, China
Highlight:	z post steel guardrails , hot dipped steel guardrails , galvanized steel guardrail

Products Description

Z guardrail post is is commonly used in Australia

Introducing Z guardrail post, a member of the highway guardrail family, the next generation steel guardrail barrier providing superior motorist safety and more metres of barrier for your dollar.
Z guardrail post is crash tested to the latest performance standard distinguishing it from the existing Australian public domain guardrail barriers. The Z-post profile shields post edges from vulnerable road users and provides sectional strength when driving through difficult conditions.
An Ezy-Carriage is used to secure the w-beam rails to the posts eliminating the requirement for blocking pieces and rail
stiffening plates. This unique connection provides a soft ride-down for the occupants and smooth vehicle containment and redirection.

Ezy-Guard Smart rails and Z-posts are manufactured from hot-rolled steel flat products in accordance with AS/NZS 1594. These items are hot dip galvanized in accordance with AS/NZS 4680 after fabrication leaving no surface untreated.

Vulnerable road users include motorcyclists, pedestrians, cyclists and other road users. Ezy-Guard Smart has been designed to provide consideration to vulnerable road users as follows:
Rounded Post Corners. The Z-post contains smooth, rounded post edges and corners mitigating the risk and severity of fractures and/ or contusions. Energy Absorbing, Ductile Z-Posts. Unlike traditional guardrail posts, the Z-posts are designed to yield by bending near ground level. This bending action absorbs impact energy reducing the potential for post fracturing. A fractured or split guardrail post presents a significant laceration hazard to vulnerable road users. The Ezy-Guard Smart design does not contain any elements that become projectiles and there are no aggressive edges. Shielded Posts.
The revolutionary design of Ezy-Guard Smart shields the top of the supporting Z-posts by positioning the top of the rail above the posts. This eliminates dangerous snag points, reducing the potential for the barrier to dismount motorcyclists or cyclists. This is a significant safety benefit compared to all guardrail and cable barrier designs currently used within Australia.

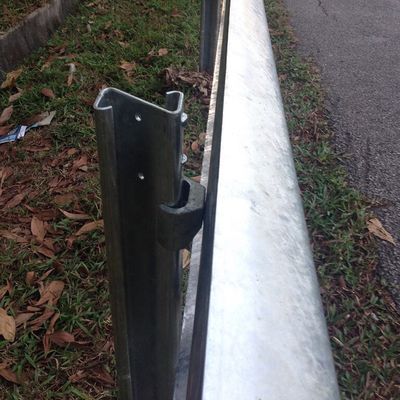

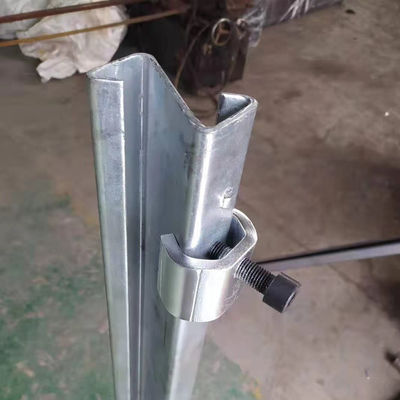

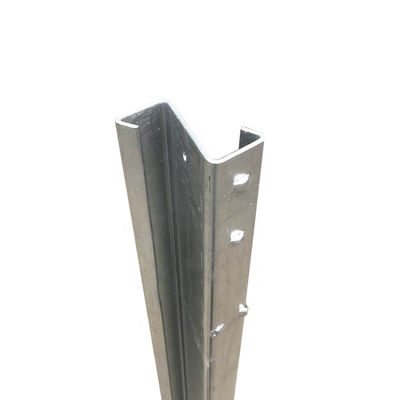

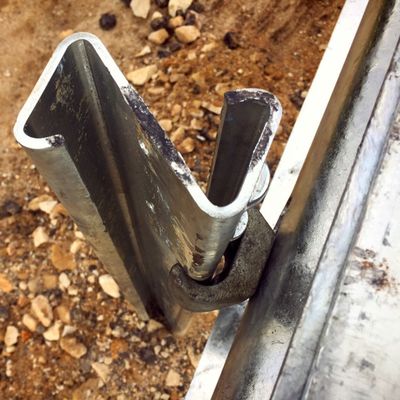

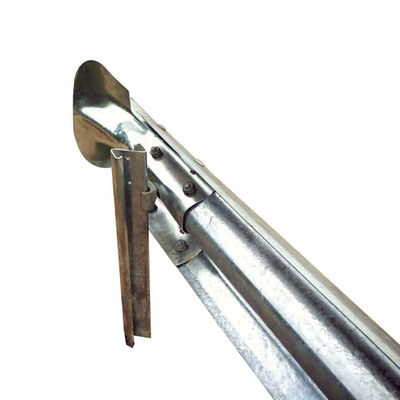

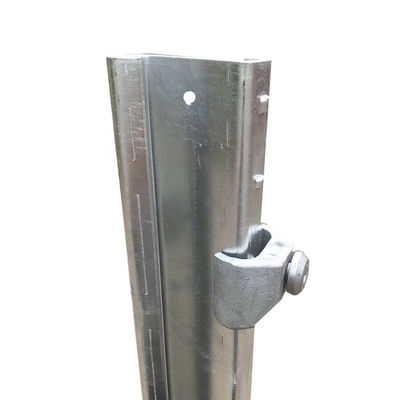

Details Images

Manufacturing Technique

EzyGuard Smart is the next generation of steel guardrail barriers featuring a smart design, rapid installation and driver
confidence. EzyGuard Smart has been fully crash tested and evaluated according to the specifications for Test Level 3 (TL-3) of the AASHTO Manual for Assessing Safety Hardware (MASH). Using up to 40% less steel than conventional guardrail barriers, the EzyGuard Smart design features specially engineered Z-posts and EzyGuard sliders.

The Z-posts are manufactured from galvanised cold rolled steel, keeping their manufacturing very simple and cost competitive with traditional barrier systems. EzyGuard sliders are used to secure the W-beam rails to the Z-posts and eliminate the requirement for blocking pieces and rail stiffening plates. This unique connection provides a soft ride-down for vehicle occupants and smooth vehicle containment and redirection.

Advantages

◆High performing, low cost system

◆Compact footprint system: only 200mm

◆Very low part count, no blockouts are required

◆ Exceptional post-impact vehicle control and behaviour

◆Light system which allows for efficient handling and transport

◆Compatible with standard guardrail components, many transitions available to Terminal Ends and other barrier systems

◆width Proprietary steel post allows for “Driven” installation without predrilling, accelerating installation and impact repair process

◆ Patented post design allows the guardrail to dynamically adjust the rail height during impact compensating for different vehicle sizes and trajectories

The Construction Site

Recommend Products

FAQ

1.Are you a trader or factory?
Yes,our factory is in Shandong, China.

2.How can i get a sample if i want to test the quality?
Yes, we would offer the samples. If you want to test the quality,please let me know and i would arrange you the samples.

3.How long is your delivery time?
We would offer you a best delivery time.we have a big factory, and our output would be more than 8 thousand tons per month.

4.What is your payment terms?
We accept T/T, L/C at sight and Alibaba Trade Assurance.
