Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design

Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design

Large Image :  Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 20 tons
Price: $500.00/tons 20-219 tons
Packaging Details: Export standard bundle or as clients request
Supply Ability: 20000 Ton/Tons per Year
Contact Now

Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design

Description
Product Name: Sigma Post For Guardrail Material: Q235(SJ235R)
Color: Customized Application: Roadway Safety
Usage: Road Traffic Safe Type: Straight Barrier
Surface Treatment: Hot Dippe Galvanized Feature: Anti-corrosion
Certificate: ISO9001:2008 Keyword: Highway Guardrail Post

Products Description

Highway guardrail is a device to protect vehicles and pedestrians

Highway crash guardrail is the main form of semi-steel guardrail. It is a continuous structure with corrugated steel guardrail plate joined together and supported by the main post. It uses the deformation of soil foundation, post, beam to absorb collision energy, and force the out-of-control vehicle to change direction, return to the normal driving direction, prevent the vehicle from rushing out of the road, in order to protect the vehicle and passengers, reduce the loss caused by the accident. Corrugated beam guardrail steel is soft and has strong ability to absorb collision energy, good line of sight induction function, can be coordinated with road line shape, beautiful appearance, can be used in small radius of the curve, the damage is easy to replace. Composite corrugated beam guardrails can be used on narrow central dividers.
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 0

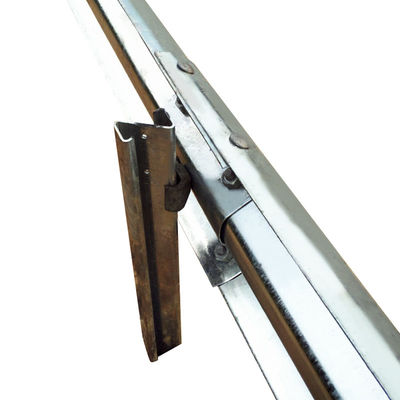

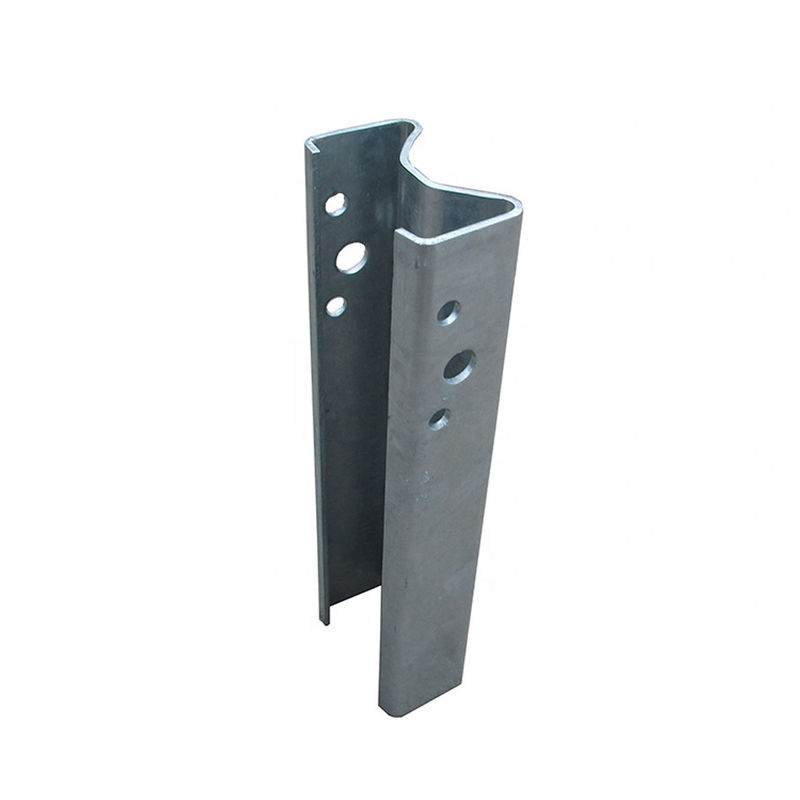

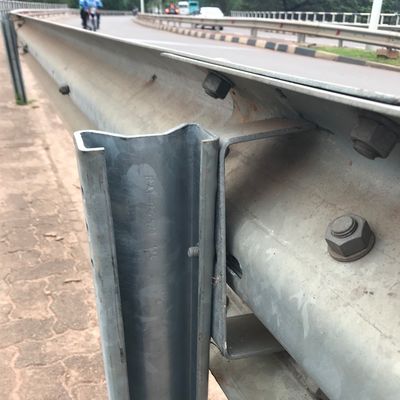

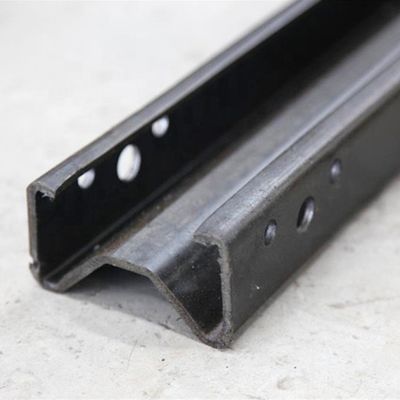

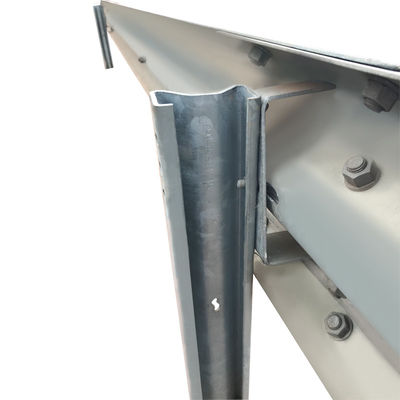

Sigma road guardrail post is commonly used abroad, it is composed of steel strip cold rolling forming, due to the shape like the Greek letter "Σ", the so called sigma post. Sigma psot than U /C post, material ductility is stronger, the support area is larger, higher strength, it is mainly connected with special-shaped block, have the effect of holding the guardrail components, to prevent the vehicles and pedestrians out, it is suitable for the relatively narrow roads or corner, can effectively ensure the safety of the pedestrians and vehicles on the road, to prevent accidents.
Sigma post is generally made of Q235B or Q345B strip steel hot-rolled and formed. The process is relatively simple, the cost is lower, and the maintenance is convenient in the later period. The surface is hot-dip galvanized, with strong anti-corrosion ability, cold and hot weather resistance, long life and great strength.
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 1
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 2
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 3
Details Images
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 4
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 5
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 6
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 7
Product Paramenters
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 8
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 9
Name
Sigma Post for highway guardrail

Raw Material
 Q235B/Q355B (equivalent to S235JR/S355JR)
All steel materials are from Tang Steel, the No.1 steel factory in China,
to guarantee the quality of curved guardrail.
Normal Sizes
100*55*16*4
Length
1500/1900/2300/2500
Surface Treatment

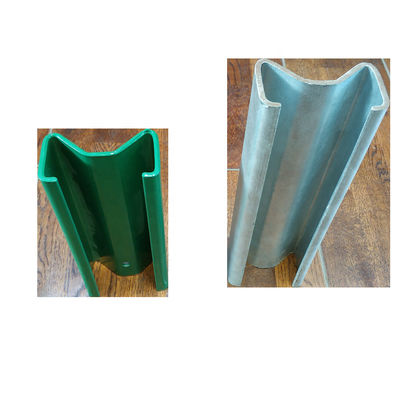

Hot dipped galvanized or powder/plastic sprayed coating
The Thickness of Galvanized
(Double Sides)
 550 g/m2 (1.80 oz/ft2 ) minimum single-spot.
1100 g/m2 (3.60 oz/ft2 ) minimum single-spot.

Features
Great corrosion resistant, high intensity, long and durable,
with good impact resistance, low cost, long life, higher
security,environmental protection, we have plasma cutting machine, punching machine to make the accurate holes, lead to easy installation.
Packing Details
Standard Export Package
We could package the products according to customers' request.
MOQ
20tons or one 20 feet container
Payment Terms
T/T; L/C at sight
Manufacturing Technique
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 10
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 11
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 12
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 13
Company Profile
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 14
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 15
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 16
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 17
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 18
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 19
Recommend Products
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 20
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 21
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 22
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 23
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 24
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 25
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 26
Product packaging
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 27
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 28
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 29
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 30
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 31
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 32
FAQ
Q: Are you trade company or guardrail factory?
A: We are guardrail manufacturer with 2 big factories 2 office area.

Q: Does your guardrail meet EN 1317 Standard ?
A: Yes, we can not only supply guardrail conforming with EN 1317 Standard, but also AASHTO Standard, AS 1594 Standard, and Chinese National Standard etc.

Q: Can you do the official test for the guardrail order, which authoritative organization is recommend?
A: Yes, the test for guardrail order can be arranged as per requirement, SGS test is recommended, and we could even do the test in the name of your company.

Q: Can you send us samples before we place the guardrail order, and how to charge it ?
A: Yes, we could send you guardrail samples for free, you just need to pay the postage fee.

Q: What is the delivery time for guardrails?
A: Normal production time for guardrail sets will be about 5-35 days, the final delivery time will be confirmed according to the guardrail order items and quantities.
Galvanized Q235 SJ235R Steel Highway Guardrail Sigma Post with Customized Design 33
