Roadway Safety Hot Dip Galvanized Highway Guardrail Dimensions for Road Traffic Safe

Large Image : Roadway Safety Hot Dip Galvanized Highway Guardrail Dimensions for Road Traffic Safe

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Safebuild

Payment & Shipping Terms:

Minimum Order Quantity:	20 tons
Price:	$800.00/tons 20-199 tons
Packaging Details:	Export standard packaging or customer requirements
Supply Ability:	10000 Ton/Tons per Month

Contact Now

Roadway Safety Hot Dip Galvanized Highway Guardrail Dimensions for Road Traffic Safe

Description

Product Name:	Thrie Beam Guardrail	Material:	Q345(SJ345R)
Application:	Roadway Safety	Color:	Customized Color
Surface Treatment:	Hot Dippe Galvanized	Certificate:	ISO9001/TUV/ BV/CE
Packing:	Standard Package	Standard:	AASHTO M-180
Raw Material:	Q345 Strip Steels	Usage:	Road Traffic Safe
Port:	Qingdao Tianjin Ningbo Shanghai Port, China

Products Description

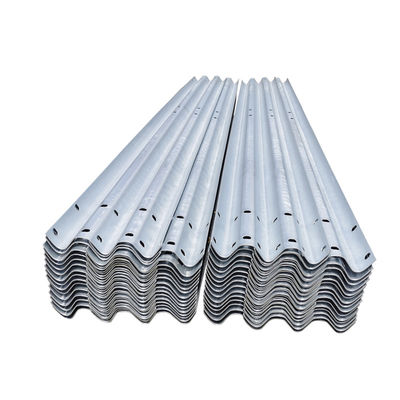

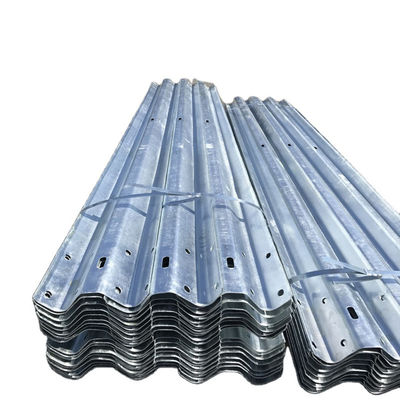

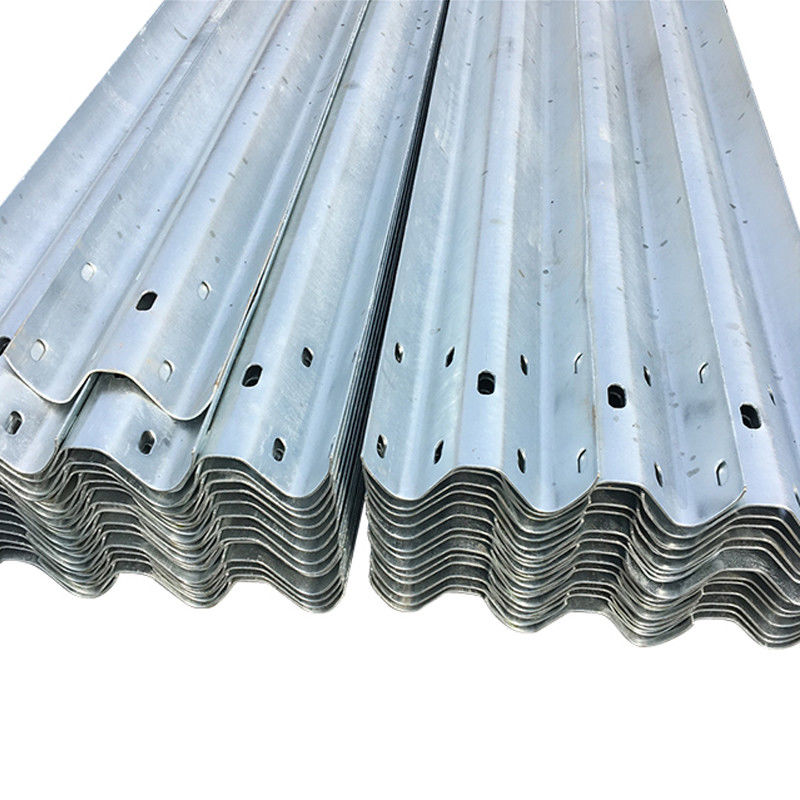

Thrie beam guardrail

Thrie beam guardrail features its shape of three waves, which has an added corrugation on the basic of traditional W-beam. Compared to two-wave shape products, this one has a stronger construction and higher impact endurance. It has been successfully impact-tested by a heavy truck and has showed its remarkable resistance against the crash force.

It is a perfect combination of high quality material (including Q235, Q345, etc.) and excellent anti-rust zinc or PVC coating. All of these make it outstanding at long-term corrosion and rust resistance. Meanwhile, it costs effectively and is widely used as a visual and physical barrier for protection against run-off road collision. Additionally, it is often used as a specific signs for a transition to high speed roadways, bridges, etc.

Manufacturing Technique

American AASHTO-M180 Technical Standard Thrie-beam highway guardrail
TYPE	Overall Length (mm)	Effection Length (mm)	Norminal Uncoated Thickness (mm)
TYPEⅠ	4130	3810	2.67-4.0
TYPE Ⅱ	4320	4000	2.67-4.0
MECHANICAL PROPERTIES	◆Material grade: S355JR ◆Yield Point, minimum, 345Mpa (50000psi); ◆Tensile Strength, minimum 483Mpa (70000psi); and ◆Elongation, in 50mm (2 in.),minimum, 12 percent.
NOTES	●Thickness of Zinc coating: 550g/㎡ or1100g/㎡; ●The beams may galvantzed before or after fabrication; ●We can customize the length and thickness according to customer requirements.

Recommend Products

Thrie Beam Guardrail Advantages

* No offset block required
* Higher durability and strength than W-beam guardrails
* Absorb maximum energy of the impact force
* Redirect the mobile equipment as fast as it can
* Visual remand of the transition to highways or bridges
* Preventing the pedestrians from walking across highways ignoring the running cars
* Protect the vehicles against skidding off roads, especially mountain roads and bridges.

Company Profile

Professional manufacturer of guardrail

Established in 2015, Shandong Safebuild Traffic Facilities Co., Ltd. is located in Economic Development Zone of guan County, Liaocheng City, Shandong Province, China, which is near by jiguan Highway. specialized in manufacturing and exporting Highway Guardrail and accessories.

Safebuild Traffic Facilities Co., Ltd. covers an area about 7,000 square meters, has 120 employees and 8 senior engineers. With an annual production capacity of 200,000 tons, Safebuild company has continuously invested in two Hot-dip galvanizing lines, two hot-dip aluminum production lines,two electrostatic spray production lines and one hot-dip coated production line.

Thrie beam guardrail forming machine

After the formation of raw materials, punching, truncation, forming a three - beam guardrail

Three wave guardrail forming roller

After being rolled by this roller, the strip becomes a three-wave guardrail for road safety

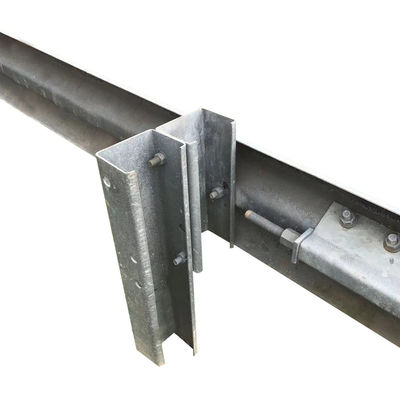

A punch press for bollards

The post is perforated and equipped with a guardrail to prevent vehicles and pedestrians from drifting off the road

Our Advantages

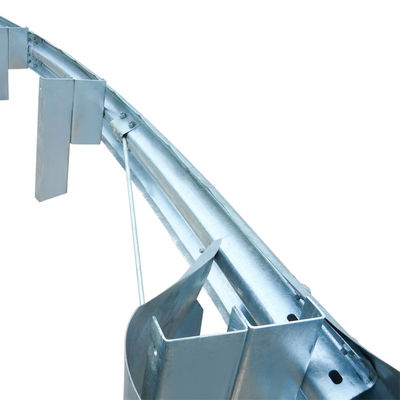

According to the surface treatment, we can classify our thrie beam guardrails into two types: hot dip galvanized and PVC coating as shown in the following pictures. But when it comes to shapes and sizes of thrie beam guardrail, it must be manufactured in accordance with the specific applications. To satisfy the need of highway barrier market, our products includes the straight thrie and curved thrie beam guardrails in various sizes as your requirements. Furthermore, the connecting part that secures a smooth transition from W-beam to thrie beam guardrail is also available as follow:

Details:
* Shape: Three waves
* Material: Q235 (equivalent to S235JR / DIN EN10025 and Gr.D / ASTM A283M), Q345 (S355JR / ASTM A529M 1994), Q255JR, etc.
* Surface: hot dipped galvanized or powder coating
* Standard: AASHTO M-180, EN1317, RAL-RG620, JT/T 281-1995, JT/T 281-2007, JT/T 457-2007, SPS98S, EU, USA, AS/NZS, or any other International Standards.
* Certificate: GB/T9001-2000, ISO 9001-2000.

Product packaging

Focusing on the export business of transportation facilities, the company has rich packing and packing experience for container loading. Among them, the guardrail plate is packed with steel wire rope, the post is transported by pallet, and the spacer and other guardrail accessories are shipped in ton package. This assembly method ensures that the products arrive at the destination port and is convenient for loading and unloading.

FAQ

●Are you a trader or factory?
Yes, our factory is in Shandong,China.

●How can i get a sample if i want to test the quality?
Yes, we would offer the samples. If you want to test the quality,please let me know and i would arrange you the samples.

●How long is your delivery time?
We would offer you a best delivery time. we have a big factory, and our output would be more than 8 thousand tons per month.

●What is your payment terms?
We accept T/T, L/C at sight and Alibaba Trade Assurance.

◆Professional manufacturers and suppliers of safety protection products;

◆The company has many years of export experience, the export share is about 50%;

◆According to customer requirements, design, research and development, customized products;

◆Provide one-to-one online installation guidance and 24-hour service hotline : +86-635-7070701;
