Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway

Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway

Large Image :  Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 25 tons
Price: $850.00/tons 25-199 tons
Packaging Details: Export standard bundle or as clients request
Supply Ability: 250000 Ton/Tons per Year
Contact Now

Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway

Description
Product Name: Z Post Of Guardrail Material: Q235(SJ235R)
Application: Roadway Safety Usage: Outdoor Security
Surface Treatment: Hot Dippe Galvanized Type: Z Post
Feature: High Durable Keyword: Highway Guardrail Post
Certificate: ISO9001:2000 Standard: AASHTO M-180
Highlight:

z post w beam guardrail

,

coated w beam guardrail

,

w beam guardrail m-180

Products Description

Z guardrail post is is commonly used in Australia

Introducing Z guardrail post, a member of the highway guardrail family, the next generation steel guardrail barrier providing superior motorist safety and more metres of barrier for your dollar.
Z guardrail post is crash tested to the latest performance standard distinguishing it from the existing Australian public domain guardrail barriers. The Z-post profile shields post edges from vulnerable road users and provides sectional strength when driving through difficult conditions.
An Ezy-Carriage is used to secure the w-beam rails to the posts eliminating the requirement for blocking pieces and rail
stiffening plates. This unique connection provides a soft ride-down for the occupants and smooth vehicle containment and redirection.
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 0
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 1
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 2
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 3
Ezy-Guard Smart rails and Z-posts are manufactured from hot-rolled steel flat products in accordance with AS/NZS 1594. These items are hot dip galvanized in accordance with AS/NZS 4680 after fabrication leaving no surface untreated.
Vulnerable road users include motorcyclists, pedestrians, cyclists and other road users. Ezy-Guard Smart has been designed to provide consideration to vulnerable road users as follows:
Rounded Post Corners. The Z-post contains smooth, rounded post edges and corners mitigating the risk and severity of fractures and/ or contusions. Energy Absorbing, Ductile Z-Posts. Unlike traditional guardrail posts, the Z-posts are designed to yield by bending near ground level. This bending action absorbs impact energy reducing the potential for post fracturing. A fractured or split guardrail post presents a significant laceration hazard to vulnerable road users. The Ezy-Guard Smart design does not contain any elements that become projectiles and there are no aggressive edges. Shielded Posts.
The revolutionary design of Ezy-Guard Smart shields the top of the supporting Z-posts by positioning the top of the rail above the posts. This eliminates dangerous snag points, reducing the potential for the barrier to dismount motorcyclists or cyclists. This is a significant safety benefit compared to all guardrail and cable barrier designs currently used within Australia.
Details Images
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 4
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 5
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 6
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 7
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 8
Manufacturing Technique
EzyGuard Smart is the next generation of steel guardrail barriers featuring a smart design, rapid installation and driver
confidence. EzyGuard Smart has been fully crash tested and evaluated according to the specifications for Test Level 3 (TL-3) of the AASHTO Manual for Assessing Safety Hardware (MASH). Using up to 40% less steel than conventional guardrail barriers, the EzyGuard Smart design features specially engineered Z-posts and EzyGuard sliders.
The Z-posts are manufactured from galvanised cold rolled steel, keeping their manufacturing very simple and cost competitive with traditional barrier systems. EzyGuard sliders are used to secure the W-beam rails to the Z-posts and eliminate the requirement for blocking pieces and rail stiffening plates. This unique connection provides a soft ride-down for vehicle occupants and smooth vehicle containment and redirection.
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 9
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 10
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 11
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 12
Advantages
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 13
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 14
◆High performing, low cost system
◆Compact footprint system: only 200mm
◆Very low part count, no blockouts are required
◆ Exceptional post-impact vehicle control and behaviour
◆Light system which allows for efficient handling and transport
◆Compatible with standard guardrail components, many transitions available to Terminal Ends and other barrier systems
◆width Proprietary steel post allows for “Driven” installation without predrilling, accelerating installation and impact repair process
◆ Patented post design allows the guardrail to dynamically adjust the rail height during impact compensating for different vehicle sizes and trajectories

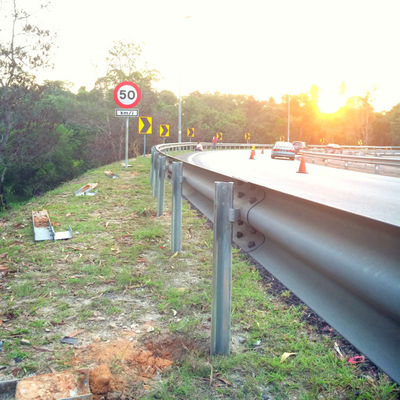

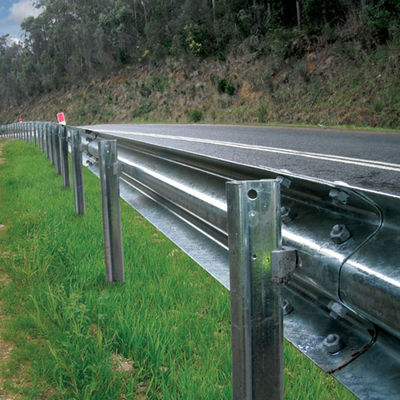

The Construction Site
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 15
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 16
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 17
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 18
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 19
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 20
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 21
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 22
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 23
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 24
Recommend Products
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 25
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 26
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 27
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 28
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 29
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 30
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 31
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 32
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 33
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 34
Z Post Corrugated Powder Coated W Beam Guardrail for AASHTO M-180 Standard Highway 35
FAQ
1.Are you a trader or factory?
Yes,our factory is in Shandong, China.

2.How can i get a sample if i want to test the quality?
Yes, we would offer the samples. If you want to test the quality,please let me know and i would arrange you the samples.

3.How long is your delivery time?
We would offer you a best delivery time.we have a big factory, and our output would be more than 8 thousand tons per month.

4.What is your payment terms?
We accept T/T, L/C at sight and Alibaba Trade Assurance.
