LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking

LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking
LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking

Large Image :  LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking

Product Details:
Place of Origin: Shandong, China
Brand Name: safebuild
Model Number: 100*20*20
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $15.00/pieces 200-1999 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 200000 Piece/Pieces per Year
Contact Now

LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking

Description
Material: Aluminum Color: White Yellow Red Blue Green
Product Name: Road Stud Application: Roadway Safety
Usage: Road Safety Road Marking Type: Road Stud Reflector
LED Color: Red Blue Yellow White Green Feature: High Reflection
Keywords: Road Safety Stud Packing: Carton
Port: Qingdao, Tianjin Port, China

SOLAR CAST ALUMINIUM ROAD STUD
LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking 0
Road studs are traffic reflectors for the highway, they are also known as raised road signs. They are a kind of traffic safety product that is mainly installed in the middle of the road marking line or the middle of the double yellow line to remind the driver to drive according to the lane through its reverse reflection performance. The specifications of the spike are generally 136mm*50mm.

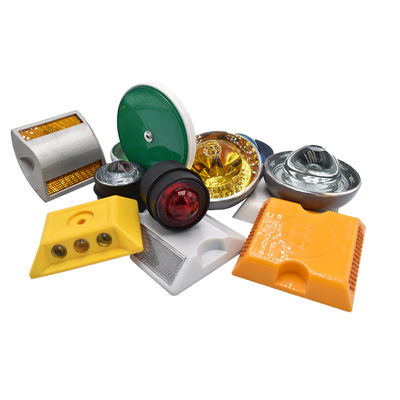

There are a variety of reflectors, studs, reflective beads, LED light, reflective film and so on.

According to the material they are made with they can be divided into:
1. Cast aluminum road studs;
2. Plastic road studs;
3. Glass road studs;
5. Solar road studs;
Solar studs are widely used for controlling traffic flow with a wide number of different applications. There are a number of well known and widely accepted colors, with lights in particular orientations to make the message to a driver clear and univocal, thereby improving the traffic flow of the road and enhancing safety aspects.

The new designed and patent solar stud could stand the pressure of 30 Tons allowing cars to drive on the solar led marker lights directly.
LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking 1
Solar road stud is a kind of stud, which is set along the road surface and used at night or in rain or fog to indicate the
direction of the road. It is composed of reverse reflection material, shell, solar panel, LED and control device. It is a visual
induction facility with active luminescence and passive reflection performance, which is usually used in combination with themarking line.

The working principle of solar energy road stud is that the solar panels absorb sunlight during the day, the solarenergy is converted into electrical energy, and it is then stored in the storage devices (batteries or capacitors). In the
evening, the electricity is automatically converted into light energy (through the photoelectric switch control), through the LEDlight path outline which induce the driver's line of sight.

This cast aluminum reflective solar road stud battery has a life span of more than 10 years. The IP68, has a larger solar panelcharging area, it has a 30% higher charging efficiency. It is more suitable to in bed it in the road stone such as vehicle
pressure does not fall.
LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking 2
Specification parameters:
Size: 136 * 50 mm

Technical parameters:
1. Energy storage element: Rechargeable battery 1.2V/ 600mAh Ni-MH high-temperature battery charge and discharge times >1000 times, the capacity is not easy to drop, the battery life is three years;

2. Solar cell: (monocrystalline silicon) 2.5V/ 120mAh

3. Working time: Under standard light intensity, it can work continuously for more than 72 hours for 8 hours at a time;

4. Display mode: flashing (default: 2Hz, customizable), or straight bright, one side or two sides;

5. Display device:Φ5 ultra bright anti-fog LED, LED lamp bead color can be customized

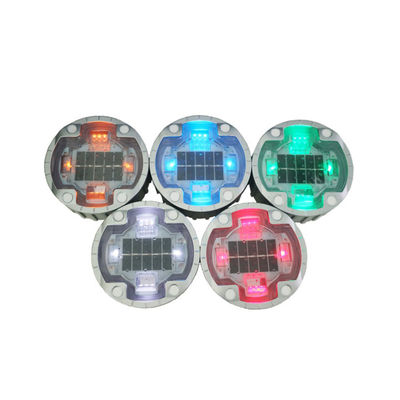

6. Display colors: red, yellow, white, blue and green, etc. Visual distance: greater than 1000M;

7. Material: cast aluminum alloy shell + bulletproof PC






8. Starting light intensity: positive light is less than 500Lux;

9. Working environment: -20℃ ~ 70℃;

10. The installation is embedded/ buried lamp.

LED road stud is an active road safety device fixed on the road for marking and depicting night visibility. It is a
separate device module with solar energy, batteries, LEDs and electronics designed to switch between dusk and flash automatically on all night to provide drivers with sufficient vision and advance warning on the road.

Unlike passive reflective cat's eyes, the effectiveness of LED cat's eyes does not depend on the intensity and range of the vehicle's headlights. Instead, free solar energy is used to operate leds that flash all night, providing remote visibility and providing guidance and warning to road users to
improve road driving safety.
Item
Data
Solar cell
(monocrystalline silicon) 2.5V/ 120mAh
Working time
72 hours for 8 hours at a time
Energy storage element
Rechargeable battery 1.2V/ 600mAh
Material
cast aluminum alloy shell + bulletproof PC
Working environment
-20℃ ~ 70℃
Starting light intensity
positive light is less than 500Lux
Display colors
red, yellow, white, blue and green
Visual distance
greater than 1000m
LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking 3
LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking 4
LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking 5
LED Color LED Solar Reflective Round Road Stud for Highway in Road Safety Road Marking 6
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.

Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.

Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
