Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000

Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000

Large Image :  Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $5.00/pieces 200-1999 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 50000 Piece/Pieces per Year
Contact Now

Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000

Description
Product Name: Highway Guardrail Material: Q235 Q345
Color: Customized Surface Treatment: Galvanized + Powder Coated
Application: Roadway Safety Usage: Outdoor Security
Type: W-beam Keyword: Safety Barrier Guard Rail
Certificate: ISO9001:2000 Name: Galvanized Highway Guardrail
Port: Qingdao, Tianjin Port, China
Highlight:

hot dip road barriers

,

bullnose road barriers

,

galvanized road barriers

Products Description
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 0

Guardrail Terminal End —— The Best Protection Against Impact

The end of the highway guardrail is the end of the road guardrail or joint part, which is composed of an end, because the road conditions are different, so the road guardrail end is divided into a variety of styles, according to the guardrail design
situation, the guardrail end is generally divided into the following types: Fishtail End, Buffer End, Round End(bullnose end),
Ground anchor end, Bridge End, Extruded guardrail end, etc.
The roadway guardrail terminal end are installed at the end of each part of crash barrier system with the aim to prevent damage and harm to pedestrians and vehicles when vehicles become errant and crash at the end of guardrails. Generally speaking, every 1000 meters will need two pieces of guardrail end terminals.

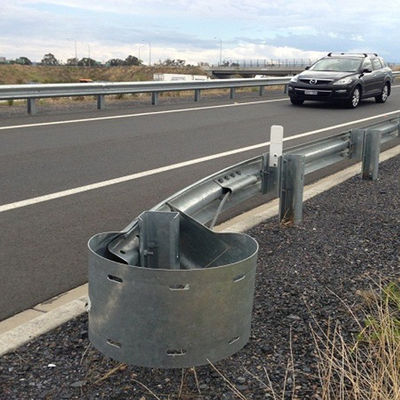

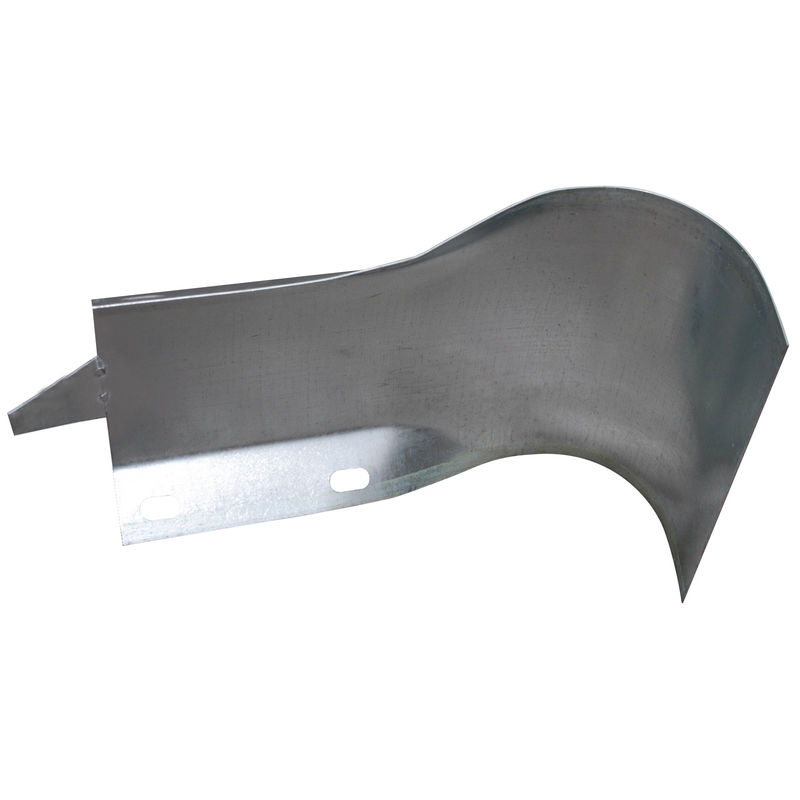

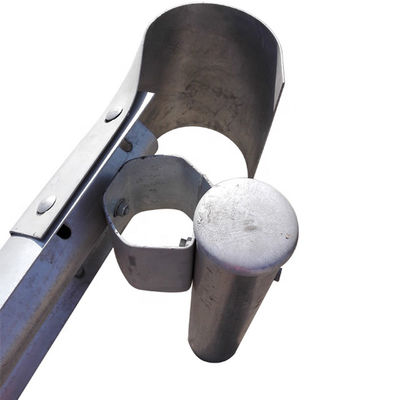

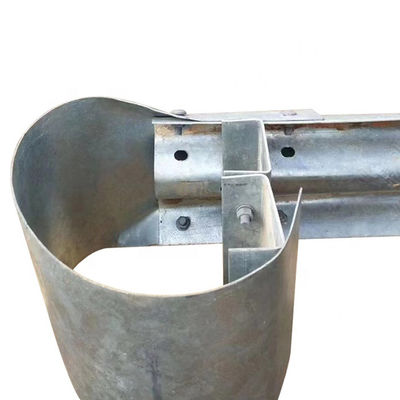

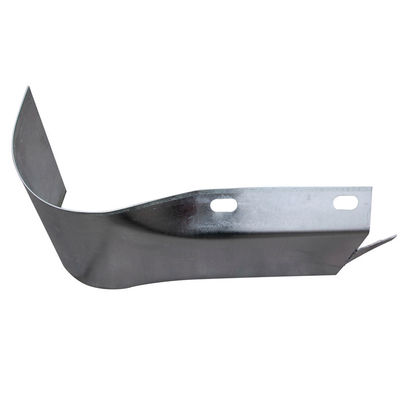

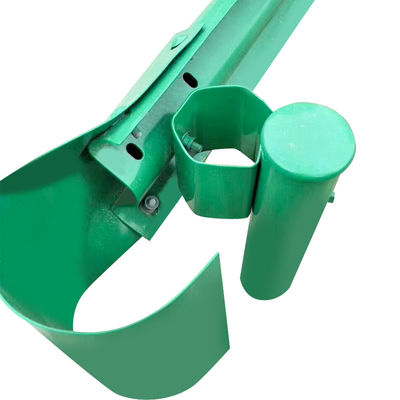

Rounded guardrail end, known as the bullnose end, this kind of guardrail end looks like a "?", generally used at the end of the road, play the role of guidance and impact prevention, it is made of strip steel stamping, after hot dip galvanized or hot spray treatment, the surface corrosion resistance is strong, as the end of the fish tail, installation is simple, construction is convenient.
The bullnose end is widely used because it is easy to manufacture and install, and has better guiding function in the case of small collision Angle.
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 1
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 2
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 3
Details Images
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 4
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 5
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 6
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 7
Product Paramenters
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 8
Title goes here.
Item: RoundedTerminal End/Bullnose End
Size: R160(320)
Wave Width: 310, 506,460mm
Wave Height: 83,85mm
Thickness: 2.75mm,2.85mm,3.85mm,4mm
Zinc coating: 550g/m2 (80µ)Surface
Surface treatment:
Hot dip galvanized or powder coated.
Standard:
AASHTO M180, EN ISO 1461, Chinese National Standard
Purpose:
For the end of the section of the road, and for the protection and aesthetic effect of the end of the fence panels guardrail fish tail end
Can tailor-make according to customer's requirements
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 9
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 10
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 11
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 12
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 13
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 14
Company Profile
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 15
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 16
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 17
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 18
Recommend Products
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 19
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 20
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 21
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 22
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 23
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 24
Product packaging
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 25
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 26
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 27
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 28
Highway Safety Barrier Guard Rail with Hot Dip Galvanized Bullnose End ISO9001 2000 29
FAQ
Q1: What's your MOQ (minimum order quantity) for guardrails?
A: 4 km or Two full containers of guardrails.

Q2: Are you trade company or guardrail factory?
A: We are guardrail factory, self making and self marketing.

Q3: What's your payment terms for guardrail order?
A: We supply our guardrail by below payment terms:
1) 30% in advance by T/T ,70% by L/C; or
2) 100% by L/C; or
3) Negotiate according to the order status.

Q4: Which delivery terms do you do for guardrails?
A: FOB China port is recommended for guardrails,but CNF/CIF destination port is also acceptable.

Q5: What is the delivery time for guardrails?
A: Normal production time for guardrail sets will be about 35 days, and the final delivery time will be confirmed according to the
guardrail order items and quantities.

Q6: Can you do the official test for the guardrail order, which authoritative organization is recommend?
A: Yes, the test for guardrail order can be arranged as per requirement, SGS test is recommended, and we could even do the test
report in the name of customers' company.

Q7: Can you provide guardrail samples?
A: Yes, we could provide guardrail samples for free, and you just need to pay the postage fee.
