Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products

Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products

Large Image :  Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Model Number: 100*50
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $1.50/pieces 200-1999 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 12000 Ton/Tons per Month
Contact Now

Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products

Description
Color: Customized Material: Glass
Name: Road Reflector Cat Eyes Size: Customized Size
Type: Road Safety Reflector Product Name: Glass Road Stud
Reflective Tape: 10 Cm-25 Cm Application: Roadway Safety
Feature: High Reflection Height: 50cm

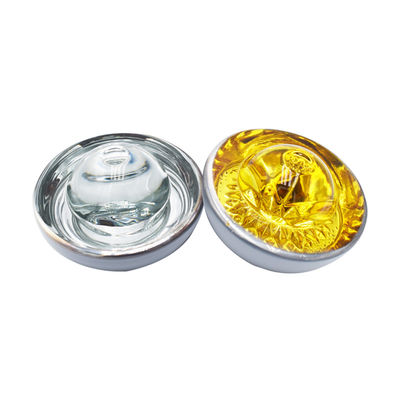

GLASS ROAD STUD
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products 0
Road studs are traffic reflectors for the highway, they are also known as raised road signs. They are a kind of traffic safety product that is mainly installed in the middle of the road marking line or the middle of the double yellow line to remind the driver to drive according to the lane through its reverse reflection performance. The specifications of the spike are generally 136mm*50mm.

There are a variety of reflectors, studs, reflective beads, LED light, reflective film and so on.

According to the material they are made with they can be divided into:
1. Cast aluminum road studs;
2. Plastic road studs;
3. Glass road studs;
5. Solar road studs;
Solar studs are widely used for controlling traffic flow with a wide number of different applications. There are a number of well known and widely accepted colors, with lights in particular orientations to make the message to a driver clear and univocal, thereby improving the traffic flow of the road and enhancing safety aspects.

The new designed and patent solar stud could stand the pressure of 30 Tons allowing cars to drive on the solar led marker lights directly.
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products 1
Cast aluminum alloy shell refers to the internal filling material which the shell it is made of. The cost of such a spike is lower
than all cast aluminum, but at the same time the
1. It's compressive strength is not so high. It is generally known as cast aluminum spike or cast aluminum filled road stud.

2. The stud formed has a carrying capacity of more than 20 tons.

3. When charged continuous flicker for 200H or constant brightness for 40H.

4. It has strong waterproof ability, solar panels, electronic components and LED through special technology sealed in the shell,

5. long-term water road can be used normally.

6. Service life: 3-5 years.
7. Efficient import of monocrystalline silicon solar panels, the conversion rate can be as high as 17%.

8. It is easy to install by embedding.

Size: 136 * 50 mm
Technical parameters:
1. Energy storage element: Rechargeable battery 1.2V/ 600mAh Ni-MH high-temperature battery charge and discharge times >1000 times, the capacity is not easy to drop, the battery life is three years;

2. Solar cell: (monocrystalline silicon) 2.5V/ 120mAh

3. Working time: Under standard light intensity, it can work continuously for more than 72 hours for 8 hours at a time;

4. Display mode: flashing (default: 2Hz, customizable), or straight bright, one side or two sides;
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products 2
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products 3
5. Display device:Φ5 ultra bright anti-fog LED, LED lamp bead color can be customized

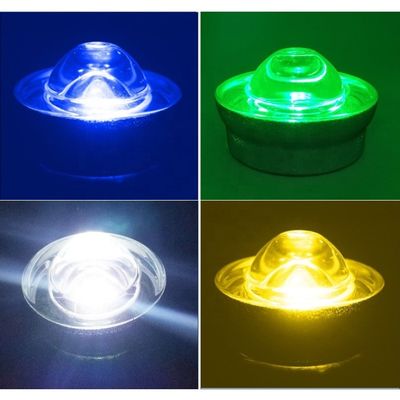

6. Display colors: red, yellow, white, blue and green, etc. Visual distance: greater than 1000M;

7. Material: cast aluminum alloy shell + bulletproof PC

8. Starting light intensity: positive light is less than 500Lux;

9. Working environment: -20℃~ 70℃;

10. The installation is embedded/ buried lamp..
Item
Data
Solar cell
(monocrystalline silicon) 2.5V/ 120mAh
Working time
72 hours for 8 hours at a time
Energy storage element
Rechargeable battery 1.2V/ 600mAh
Material
cast aluminum alloy shell + bulletproof PC
Working environment
-20℃ ~ 70℃
Starting light intensity
positive light is less than 500Lux
Display colors
red, yellow, white, blue and green
Visual distance
greater than 1000m
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products 4
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products 5
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products 6
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products 7
Shandong Safebuild Traffic Facilities Co.,Ltd was established in 2015. It is located in Liaocheng City, Shandong Province, China. We specialise in manufacturing and exporting Highway Guardrail and other accessories such as traffic safety products.

Our company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the
different construction environment, and corresponding surface treatments can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance. We also specialise in the production of guardrail accessories like reflectors and other road safety products such as road suds.

Our aim is to Safebuild people, with our professional, wholehearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients!
RECOMMENDED PRODUCTS
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products 8
Hot Dip Galvanised Highway Guardrail
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products 9
Solar aluminium Road Stud
Reflective Tape Tempered Glass Road Stud for High Reflection Traffic Safety Products 10
Guardrail Post and Spacer

FAQ

1.Q:Are you a factory or trading company?
A:We are factory which has been in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples. Please send a sample inquiry and leave us your email address, then we will send you more information about the samples for your reference.

4.Q:How does your factory do regarding quality control?
A:Quality is priority. All our staff members always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO 9001 and SGS authentication.
