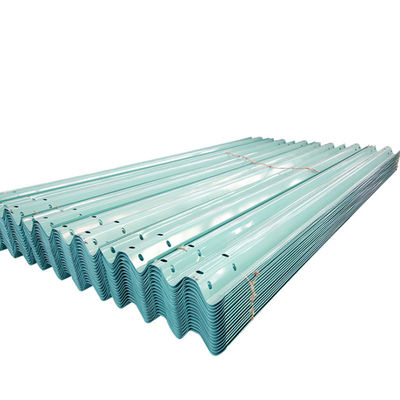

Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating

Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating

Large Image :  Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 20 tons
Price: $700.00/tons 20-199 tons
Contact Now

Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating

Description
Color: Customized Product Name: Highway Guardrail
Material: Q235 Q345 Standard: AASHTO M-180
Zinc Coating: 550-600g/㎡,Customized Application: Roadway Safety
Technology: Hot Galvanized+cold Rolled Surface Treatment: Galvanized ,Powder Coated
Certificate: CE/BV/ISO 9001/ISO14001/ISO 18001 Usage: Outdoor Security
Highlight:

hot dipped galvanized w beam guardrail

,

sale galvanized w beam guardrail

,

safety galvanized w beam guardrail

Products Description
Steel beam guardrail is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.
There are mainly two specifications of steel guardrail: W-Beam guardrail and Thrie-Beam guardrail, They are manufactured from Q235B or Q345B grade steel in 2.5-4mm base metal thickness as supplied by China Steel Limited. All products are hot dipped galvanized or powder coated after fabrication to meet the requirements of Chinese National Standards, AASHTO M180 Standard, SANA 1350 Standard and etc.
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 0
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 1
Product Paramenters
American  AASHTO-M180 Technical Standard W-beam highway guardrail
TYPE
Overall Length
(mm)
Effection Length
 (mm)
Norminal Uncoated Thickness
 (mm)
TYPE Ⅰ
4130
3810
2.67
TYPE Ⅱ
4320
4000
2.67

MECHANICAL PROPERTIES
◆Material grade: S355JR
◆Yield Point, minimum, 345Mpa (50000psi);
◆Tensile Strength, minimum 483Mpa (70000psi); and
◆Elongation, in 50mm (2 in.),minimum, 12 percent.

NOTES
●Thickness of Zinc coating: 550g/㎡ or1100g/㎡;
●The beams may galvantzed before or after fabrication;
●We can customize the length and thickness according to customer requirements.


Manufacturing Technique
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 2
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 3
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 4
Details Images
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 5
C POST+BOX SPACER
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 6
CHANNEL POST+CHANNEL SAPCER
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 7
C POST+C SPACER
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 8
U POST+U SPACER
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 9
H POST+ BRACKET
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 10
C POST+TRAPEZOIDAL SPACER
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 11
SIGMA POST+ BRACKET
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 12
H POST+H SPACER
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 13
Z POST+STEEL CLIP
Company Profile
Established in 2015, Shandong Safebuild Traffic Facilities Co., Ltd. is located in Economic Development Zone of guan County, Liaocheng City, Shandong Province, China, which is near by jiguan Highway. specialized in manufacturing and exporting Highway Guardrail and accessories. Safebuild Traffic Facilities Co., Ltd. covers an area about 7,000 square meters, has 120 employees and 8 senior engineers. With an annual production capacity of 200,000 tons, Safebuild company has continuously invested in two Hot-dip galvanizing lines, two hot-dip aluminum production lines,two electrostatic spray production lines and one hot-dip coated production line.
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 14
GUARDRAIL FORMING MACHINE
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 15

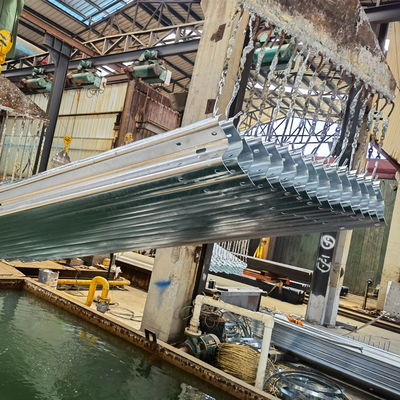

HOT DIP GALVANIZING PRODUCTION LINE
The company has advanced guardrail plate forming machine, which can realize the strip head removal, smoothing, punching, cutting, forming, leveling and other working procedure, so that the guardrail has good consistency, high processingaccuracy, low production cost, which is widely recognized by the market.
The company has an advanced production line of plastic spraying and hot-dip galvanizing for guardrail . According to the differentconstruction environment, corresponding surface treatment can be adopted to achieve good corrosion resistance, moisture resistance and weather resistance.
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 16
BENDING MACHINE
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 17
DECOILER
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 18
PUNCHING MACHINE
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 19
We are spreaded to 8,000 km since it is established around China and successfully exported to other countries, like Russia and Malaysia, Algeria, Singapore, South Africa, Mozambique, Ghana, Brazil, etc. We have been holding a scientific, rigorous, normative and standardized pragmatic style , and developing impeccable inspection organization to to make sure all of our products quality are in line with national standards, industry standards and enterprise standards. Safebuild people, with our professional, whole-hearted and devoting spirits as well as our remarkable products quality and favorable service system , sincerely hope to work together with the vast number of clients, create brilliant!
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 20
RAW MATERIAL WAREHOUSE
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 21
PRODUCTS WAREHOUSE
Recommend Products
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 22
C POST FOR GUARDRAIL
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 23
H POST FOR GUARDRAIL
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 24
U POST FOR GUARDRAIL
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 25
Z POST FOR GUARDRAIL
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 26
BOX SPACER FOR GUARDRAIL
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 27
FISHTAIL END FOR GUARDRAIL
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 28
TERMINAL CONNECTOR
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 29
BEND GUARDRAIL
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 30
RADIAN GUARDRAIL
Product packaging
Focusing on the export business of transportation facilities, the company has rich packing and packing experience for container loading. Among them, the guardrail plate is packed with steel wire rope, the post is transported by pallet, and the spacer and other guardrail accessories are shipped in ton package. This assembly method ensures that the products arrive at the destination port and is convenient for loading and unloading.
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 31
The packing of guardrail adopts bundling method, which is convenient for loading and unloading. It can also keep the balance of containers and facilitate transportation.
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 32
The packing of guardrail post adopts the well shaped binding method, which has strong firmness and is easy to be loaded and unloaded by forklift.
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 33
We use ton bags or simple wooden cases for packing accessories of guardrail, which is convenient for loading and unloading, and installation after arrival.
Our Advantages
Powder Coated W Beam Guardrail Traffic Safety Barrier with and Customized Zinc Coating 34
◆Professional manufacturers and suppliers of safety protection products;
◆The company has many years of export experience, the export share is about 50%; ◆According to customer requirements, design, research and development, customized products; ◆Provide one-to-one online installation guidance and 24-hour service hotline : + 86-635-7070701;
