Roller Barrels EVA Barrier Road Roller Barrier for Highway Safety from Top

Large Image : Roller Barrels EVA Barrier Road Roller Barrier for Highway Safety from Top

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Safebuild

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$150.00/pieces 100-999 pieces
Packaging Details:	Export standard bundle or as clients request
Supply Ability:	200000 Piece/Pieces per Year

Contact Now

Roller Barrels EVA Barrier Road Roller Barrier for Highway Safety from Top

Description

Material:	Q235 Q345 EVAl	Product Name:	Safety Roller Crash Barrier
Color:	Yellow	Surface Treatment:	Hot Dipped Galvanized
Application:	Roadway Safety	Keyword:	Roller Barrels
Usage:	Road Traffic Safety	Advantage:	Save Volume
Certificate:	ISO	Name:	Roller Barrier

Products Description

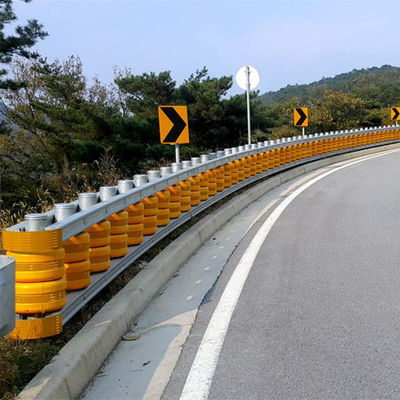

Safety roller barrier is a fixture that prevents drivers and passengers from fatal accidents by not only absorbing shock energy but also converting shock energy into rotational energy. It is designed to effectively absorb shock and lead vehicle to the road direction to prevent large accidents.

It is also known as a roller barrier, rolling barrier, roller type barrier, drum barrier or highway roller, and widely used on sharp carve road or bend road zone. The safety roller will effectively function for drivers to properly control vehicles with its noticeable color and self-luminescence.

The safety roller barrier is a new product. It is assembled with PU / EVA rollers and galvanized steel post and beams. The roller barrier differs from the w beam guardrail in the way it functions because It can absorb shock and lead vehicle to the road direction by roller, to prevent large accidents, whilst the W beam does not. The roller barrier is as well lighter and easier to install than w beam guardrail and it would be easier for recovery after attachment and easier to repair.

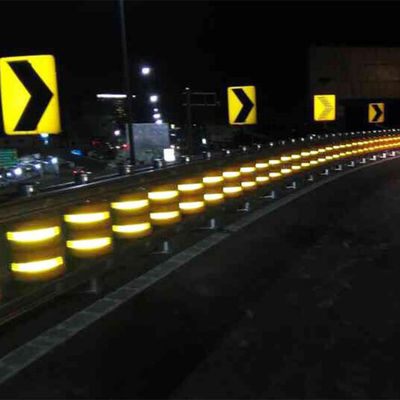

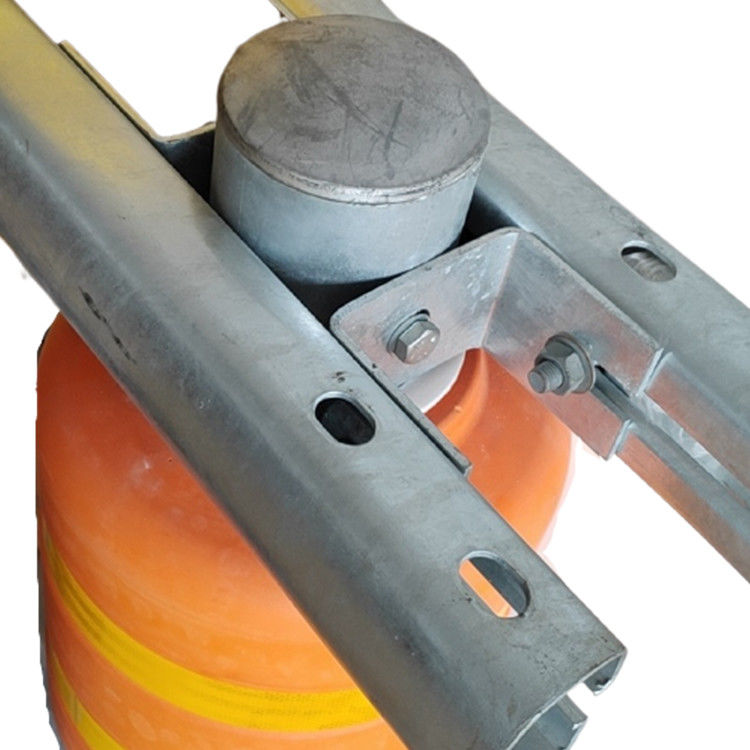

The guardrail is composed of columns, rotating cylinder, u-beam and connecting parts. All steel components are treated with hot-dip galvanized anti-rust treatment.The vertical column is separated by 1m or 0.7m, and two rotating cylinders are installed on each vertical column. This rotating cylinder takes EVA as the main material, and 17 auxiliary materials such as PE and related chemical additives are added.Continuous working temperature is between 60 ° and 70 °.These kinds of guardrails are usually installed on the ramp, continuous downhill and curved road of the expressway. When a vehicle hits a guardrail, the rotation function of the rotating cylinder itself and the good resilience of the cylinder body can greatly reduce the injury degree of the vehicle and the driver, and play a good protective role.There is a reflective strip on the rotating cylinder, and the evening star stone can reflect the outline of the route better through the light irradiation, which can play a good line of sight induction effect on the vehicle and further guarantee the safety of the vehicle.

Product Paramenters

Roller	H250xφ350mm,H500xφ350,request
Post	φ140x2150x4.5
Cross Beam	100x80x4.0x5000/5600/6000/7000
Turning Circle	φ182xφ145x2.0mm
Casing	φ167x480x8.0
Terminal	5603104.0
Square buckle	46x64x4.0mm
Bolts&Nuts	M20x60/120/140mm
Post spacing	700 mm or 1000 mm or custom
Material	EVA/Polyurethane for barrel,and Q235/Q345 for guardrail
Operating temperature	-60℃~70℃(-76℉~158℉)

RG-SB-1 Safety Roller Crash Barrier

RG-SA Safety Roller Crash Barrier

RG-SB-2 Safety Roller Crash Barrier

RG-SB-3 Safety Roller Crash Barrier

RG-SBm-1 Safety Roller Crash Barrier

RG-SAm Safety Roller Crash Barrier

RG-SBm-2 Safety Roller Crash Barrier

End rotation Safety Roller Crash Barrier

Details Images

Features of Safety Roller Barrier

1. Reduce speed by stopper board
2. Guide reflective leads a driver to drive safely
3. Recyclable material (eco-friendly)
4. Help a vehicle turn back to the road by its spinning when the car crashed the rollers laterally
5. Minimize fatal damage of people and vehicles by absorbing collision shock
6. Reduce costs in repairing and maintenance due to Roller’s resilience.
7. Stopper boards help prevent larger accidents by slowing down Roller’s spin
8. Can be used for many years, less cost.

Manufacturing Technique

The rotary anti-collision guardrail is a kind of road guardrail which USES the rotary barrel as the main medium. The rotary barrel can rotate under the impact force, and then drive the vehicle to complete the turning recovery. The rotary anti-collision guardrail is a semi-rigid guardrail

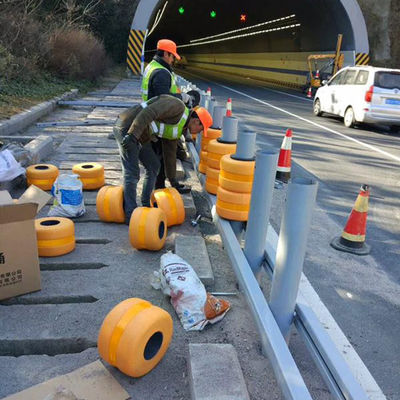

Installation Instructions

●Curved Median Strip
●Curved Ramp
●Diverging Point
●Curved Tunnel
●Curved Downhill
●Passge Intersection

●School Zone
●Danzer Zone etc.

Product packaging

Company Profile

Traffic safety highway guardrail road barrier

The material of the rotating cylinder is the blend of EVA and polyethylene. The color can be selected as yellow, orange, orange and so on. The color of the rotating cylinder is uniform, and the edges are smooth without burr and no flying edge. The surface has no dissection, no crack, no bubble, no sand eye and other defects, the whole shape is complete, no obvious slanting .
