Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End

Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End

Large Image :  Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Payment & Shipping Terms:
Minimum Order Quantity: 20 pieces
Price: $50.00/pieces 20-199 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 50000 Piece/Pieces per Year
Contact Now

Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End

Description
Product Name: Highway Guardrail Material: Q235 Q345
Color: Customized Surface Treatment: Galvanized + Powder Coated
Application: Roadway Safety Usage: Outdoor Security
Type: W-beam Keyword: Safety Barrier Guard Rail
Certificate: ISO9001:2000 Name: Galvanized Highway Guardrail
Port: Qingdao, Tianjin Port, China

Products Description
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 0

Guardrail Terminal End —— The Best Protection Against Impact

The end of the highway guardrail is the end of the road guardrail or joint part, which is composed of an end, because the road conditions are different, so the road guardrail end is divided into a variety of styles, according to the guardrail design
situation, the guardrail end is generally divided into the following types: Fishtail End, Buffer End, Round End(bullnose end),
Ground anchor end, Bridge End, Extruded guardrail end, etc.
The roadway guardrail terminal end are installed at the end of each part of crash barrier system with the aim to prevent damage and harm to pedestrians and vehicles when vehicles become errant and crash at the end of guardrails. Generally speaking, every 1000 meters will need two pieces of guardrail end terminals.

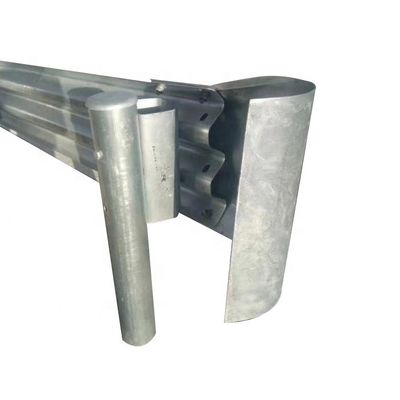

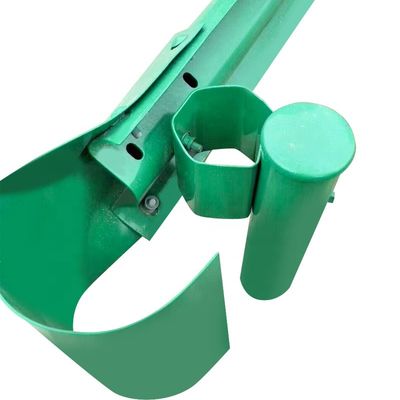

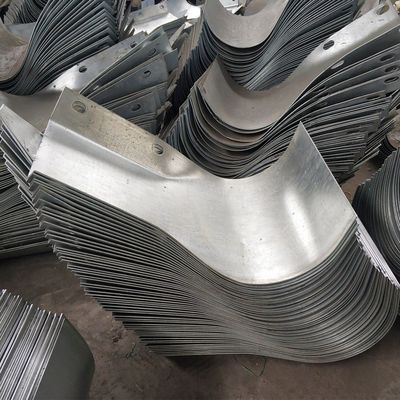

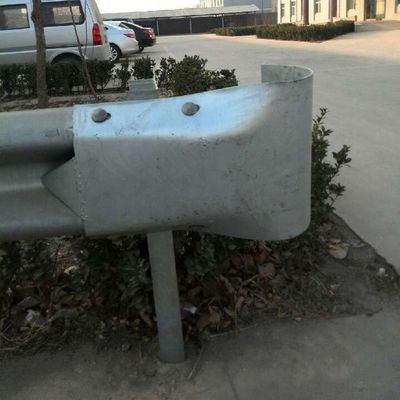

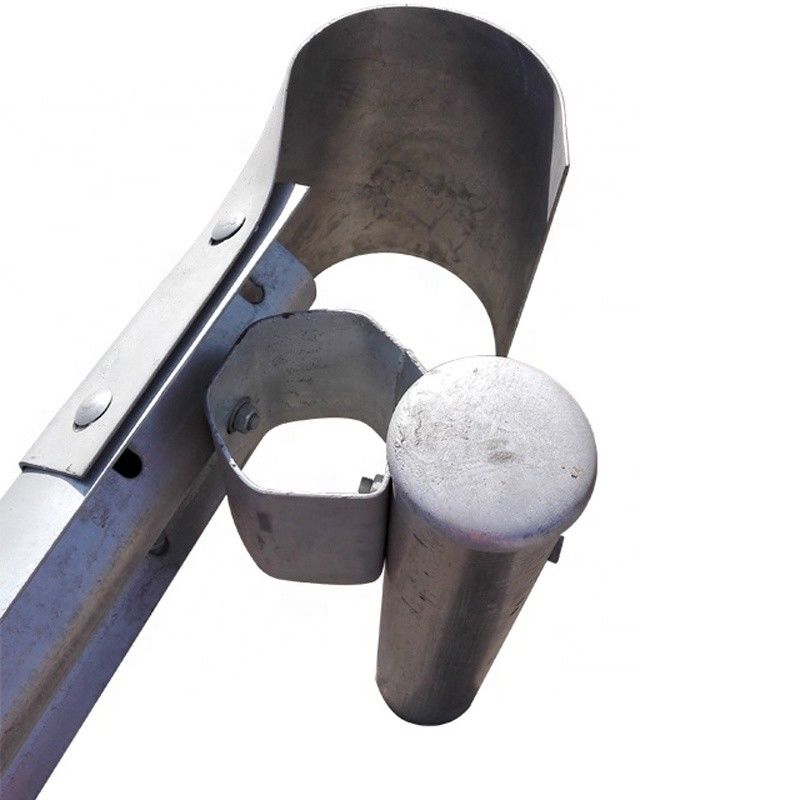

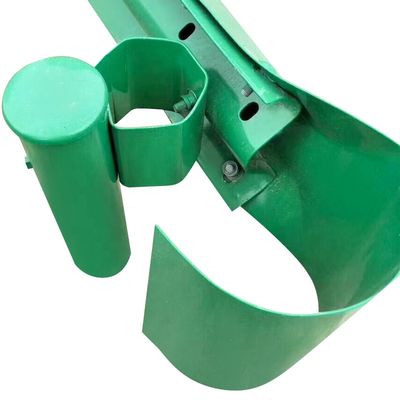

Rounded guardrail end, known as the bullnose end, this kind of guardrail end looks like a "?", generally used at the end of the road, play the role of guidance and impact prevention, it is made of strip steel stamping, after hot dip galvanized or hot spray treatment, the surface corrosion resistance is strong, as the end of the fish tail, installation is simple, construction is convenient.
The bullnose end is widely used because it is easy to manufacture and install, and has better guiding function in the case of small collision Angle.
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 1
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 2
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 3
Details Images
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 4
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 5
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 6
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 7
Product Paramenters
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 8
Title goes here.
Item: RoundedTerminal End/Bullnose End
Size: R160(320)
Wave Width: 310, 506,460mm
Wave Height: 83,85mm
Thickness: 2.75mm,2.85mm,3.85mm,4mm
Zinc coating: 550g/m2 (80µ)Surface
Surface treatment:
Hot dip galvanized or powder coated.
Standard:
AASHTO M180, EN ISO 1461, Chinese National Standard
Purpose:
For the end of the section of the road, and for the protection and aesthetic effect of the end of the fence panels guardrail fish tail end
Can tailor-make according to customer's requirements
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 9
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 10
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 11
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 12
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 13
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 14
Company Profile
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 15
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 16
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 17
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 18
Recommend Products
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 19
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 20
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 21
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 22
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 23
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 24
Product packaging
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 25
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 26
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 27
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 28
Hot Galvanized Safety Barrier Guard Rail with Customized and High Speed Bullnose End 29
FAQ
Q1: What's your MOQ (minimum order quantity) for guardrails?
A: 4 km or Two full containers of guardrails.

Q2: Are you trade company or guardrail factory?
A: We are guardrail factory, self making and self marketing.

Q3: What's your payment terms for guardrail order?
A: We supply our guardrail by below payment terms:
1) 30% in advance by T/T ,70% by L/C; or
2) 100% by L/C; or
3) Negotiate according to the order status.

Q4: Which delivery terms do you do for guardrails?
A: FOB China port is recommended for guardrails,but CNF/CIF destination port is also acceptable.

Q5: What is the delivery time for guardrails?
A: Normal production time for guardrail sets will be about 35 days, and the final delivery time will be confirmed according to the
guardrail order items and quantities.

Q6: Can you do the official test for the guardrail order, which authoritative organization is recommend?
A: Yes, the test for guardrail order can be arranged as per requirement, SGS test is recommended, and we could even do the test
report in the name of customers' company.

Q7: Can you provide guardrail samples?
A: Yes, we could provide guardrail samples for free, and you just need to pay the postage fee.
