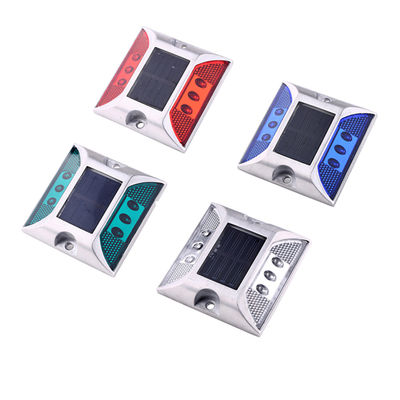

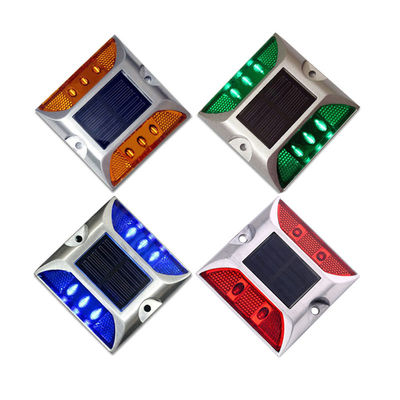

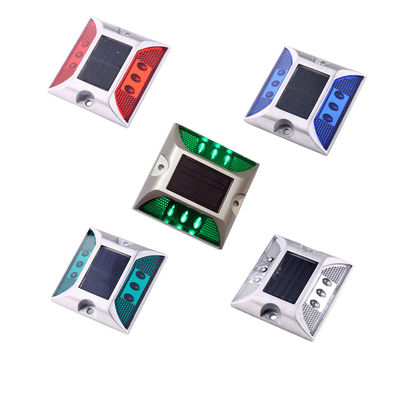

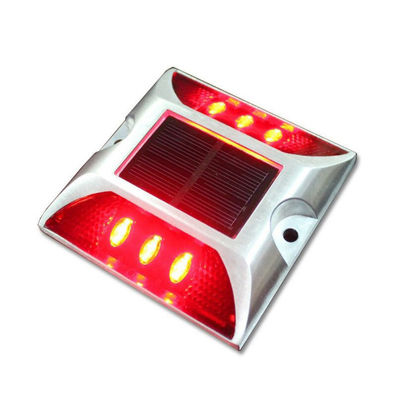

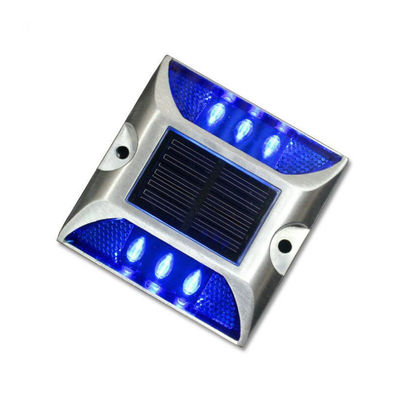

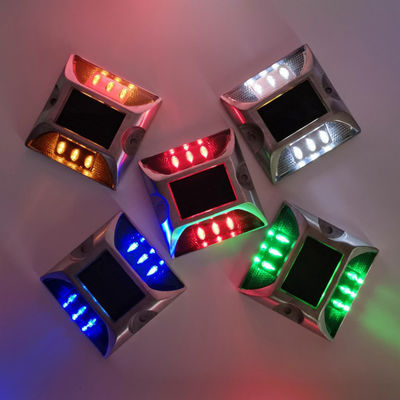

Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway

Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway

Large Image :  Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Model Number: 104*124*23
Payment & Shipping Terms:
Minimum Order Quantity: 200 pieces
Price: $6.00/pieces 200-1999 pieces
Packaging Details: Export standard bundle or as clients request
Supply Ability: 200000 Piece/Pieces per Year
Contact Now

Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway

Description
Material: Aluminium+PC Color: Red
Product Name: LED Solar Road Stud Application: Road Warning
Type: Road Cone Sign Feature: High Reflection
Name: LED Road Stud Size: 104*123*23mm
Keywords: Road Safety Stud LED Color: Red Blue Yelow Write Green

Products Description
When we say road studs, we mean the studs for the highway. Also known as raised road signs.
It is a kind of traffic safety facilities. It is mainly installed in the middle of the road marking line or the middle of the
double yellow line to remind the driver to drive according to the lane through its reverse reflection performance. The
specifications of the spike are generally 100mm*100mm*20mm, and the maximum height is not more than 25mm.
There are a variety of reflectors, reflectors, reflective beads, LED light, reflective film and so on.
According to the material can be divided into:
1, Cast aluminum road studs;
2, Plastic road studs;
3, Glass road studs;
5. Solar road studs;
Solar studs are now widely used for controlling traffic flow with a wide number of applications. In practice, such systems operate well above the road surface with a number of well known and widely accepted colors, with lights in particular orientations to make the message to a driver clear and univocal, thereby improving the traffic flow of the road and enhancing safety aspects. The new designed and patent solar stud could stand the pressure of 30 Tons so that cars can drive on the solar led marker lights directly.
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 0
Solar road stud is a kind of spike, which is set along the road surface and used at night or in rain or fog to indicate the direction of the road. It is composed of reverse reflection material, shell, solar panel, LED and control device. It is a visual induction facility with active luminescence and passive reflection performance, which is usually used in combination with the marking line. The working principle of solar energy road stud, solar panels absorb sunlight during the day, the solar energy into electrical energy stored in the storage devices (batteries or capacitors), in the evening, the electricity automatically converted into light energy storage device (through the photoelectric switch control), through the LED light path outline, induce the driver line of sight.
This cast aluminum reflective solar road stud battery, life of more than 10 years, IP68, the solar panel area is larger, charging efficiency increased by 30%, more suitable to press in the road stone such as vehicle pressure does not fall.
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 1
Details Images
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 2
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 3
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 4
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 5
Product Paramenters
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 6
Specification parameters:
Size: 104 * 124 * 23 mm
Technical parameters:
 1. Energy storage element: lithium iron phosphate battery 3.2v | polymer lithium battery 3.7v (customizable) --500MAH, charge and discharge times >1000 times, the capacity is not easy to drop, the battery life is three years;
2. Solar cell: monocrystalline silicon 5V 60MA;
3. Working time: Under standard light intensity, it can work continuously for more than 72 hours for 8 hours at a time;
4. Display mode: flashing (default: 2Hz, customizable), or straight bright, one side or two sides;
5. Display device: ultra-bright LED, luminous intensity & GT; 3000MCD (yellow, red) & GT; 5000 MCD (white);
6. Display colors: red, yellow, white, blue and green, etc. Visual distance: greater than 500M;
7. Material: cast aluminum shell + epoxy resin filling;
8. Starting light intensity: positive light is less than 500Lux;
9. Working environment: -20℃ ~ 70℃;
10. The installation is fixed with epoxy resin glue to ensure the stability.
Led road stud is an active road safety device fixed on the road surface for marking and depicting night visibility. It is a
separate device module with solar energy, batteries, leds and electronics designed to switch between dusk and flash automatically on all night to provide drivers with sufficient vision and advance warning on the road. Unlike passive reflective cat's eyes, the effectiveness of Led cat's eyes does not depend on the intensity and range of the vehicle's headlights. Instead, free solar energy is used to operate leds that flash all night, providing remote visibility and providing guidance and warning to road users to improve road driving safety.
Why Choose Us
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 7
Product Features:
Mould is formed at one time with a carrying capacity of more than 20 tons.
Charged continuous flicker for 200H or constant brightness for 40H
Strong waterproof ability, solar panels, electronic components and LED through special technology sealed in the shell, long-term water road can be used normally.
Efficient import of monocrystalline silicon solar panels, the conversion rate can be as high as 17%.
Service life: 3-5 years.
It is easy to install and can be fixed with epoxy glue or screws
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 8
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 9
Company Profile
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 10
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 11
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 12
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 13
Installation Instructions
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 14
Road Cone Sign Aluminum LED 30T Resistance Led Solar Reflective Road Stud for Highway 15
FAQ
1.Q:Are you a factory or trading company?
A:We are factory which in this field for more than 10 years.

2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liaocheng City, Shandong Province, China. All our clients, from home or abroad, are warmly welcome to visit us!

3.Q:How can I get some samples?
A: We are honored to offer you samples.Pls send sample inquiry and leave us your email ,then we will send you more information about the samples for your reference.

4.Q:How does your factory do regarding quality control?
A:Quality is priority. All staffs always attach great importance to quality controlling from the very beginning to the very end.
Our factory has gained ISO 9001 and SGS authentication.
