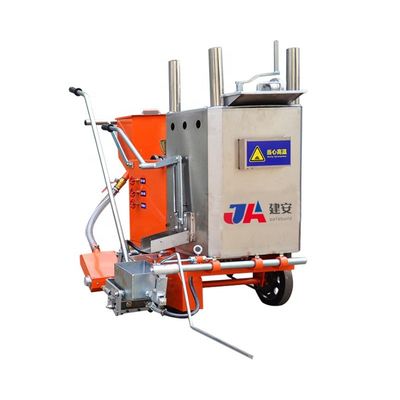

Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components

All Products

Steel Highway Guardrail

(1514)

Cat Eye Road Stud

(380)

Bridge Guardrail Barrier

(24)

Safety Roller Barrier

(168)

Safety Crash Barrier

(42)

Safety Road Barriers

(14)

Road Safety Cones

(9)

Road Traffic Signs

(47)

Pile Driver Machine

(5)

Barbed Wire Fence

(32)

Reflective Safety Vest

(7)

Plastic Road Barrier

(12)

Collision Protection Barriers

(5)

Road Marking Machine

(5)
Certification
China Shandong Safebuild Traffic Facilities Co., Ltd. certification
China Shandong Safebuild Traffic Facilities Co., Ltd. certification
I'm Online Chat Now

Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components

Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components

Large Image :  Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components

Product Details:
Place of Origin: Shandong, China
Brand Name: Safebuild
Certification: ISO900
Payment & Shipping Terms:
Price: $1,500.00/sets 1-9 sets
Packaging Details: Export standard bundle or as clients request
Supply Ability: 600 Set/Sets per Year
Contact Now

Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components

Description
Features: Long Lifetime Applicable Industries: Machinery Repair Shops, Printing Shops, Construction Works
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year Core Components: Engine, Pressure Vessel, Gear
Condition: New Power: 5.5HP/ 15HP
Dimension(L*W*H): 1200*1200*1200mm Weight: 200kg
Warranty: 1 Year UNIQUE SELLING POINT: Long Lifetime
Application: City Road Edge Line Product Name: Manual Airless Paint Spraying Machine
Line Types: Thermoplastic Line Usage: Making Marks
Name: Airless Road Line Marker Marking Mode: Traffic Safety Paint
Road Marking Machine: Hand PushThermoplastic Paint Road Line Keyword: Road Marker Machine
Type: Themoplastic Paint Material: Thermoplastic Paint Material
After Warranty Service: Video Technical Support, Online Support Local Service Location: None
After-sales Service Provided: Video Technical Support Port: Qingdao Tianjin Ningbo Shanghai Port, China
Highlight:

hot melt road marking machine

,

thermoplastic paint road marking machine

,

thermoplastic line road marking machine

Products Description
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 0
Road Marking machine is a road construction machine widely used in roads, high roads, parking lots, squares and runways to mark out different restrictions, guidelines and warnings on the level ground. The marking machine plays a great role in urban planning and highway construction with its advantages of speed, efficiency and accuracy, and saves the time limit and economic investment of road construction to the greatest extent
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 1
Details Images
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 2
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 3

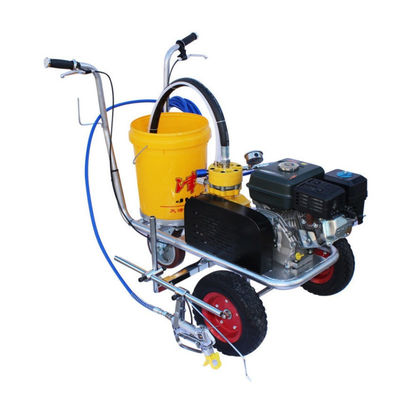

Room temperature hand push road marking machine
This machine is hydraulic plunger variable pump marking machine, hydraulic cylinder is mechanical control automatic reversing device, its working frequency is automatically controlled according to the flow rate of the spray gun. Adopt double section variable pump, the pressure is more stable than gear pump, line painting is more neat, with high efficiency, simple operation, smooth walking characteristics.
Technical parameters:
Engine: Honda 5.5-HP gasoline engine
Oil pump: plunger variable pump
Hydraulic cylinder: Mechanical controlled automatic reversing device
Paint pump: piston type high pressure paint pump
Maximum flow: 8L/min
Maximum pressure: 20Mpa
Working pressure: 15Mpa
Spraying line width: spraying width is 8-45mm
Airbrush: double airbrush, both fixed and hand
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 4

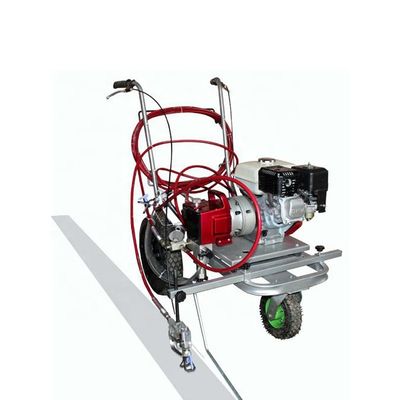

Room temperature on-board road marking machine
Microcomputer automatic control, simple operation, dotted line, solid line arbitrary regulation, hydraulic spray gun, quick opening and closing, neat line line, column rotary nozzle, marking speed 6-10km/h, durable equipment, high working efficiency.
Technical parameters:
Engine: Honda 13HP gasoline engine
Hydraulic cylinder: Mechanical controlled automatic reversing device
Paint pump: piston type high pressure paint pump
Maximum flow: 15L/min
Maximum pressure: 25Mpa
Working pressure: 15Mpa
Oil pump: Gear pump
Nozzle: column rotary nozzle, spraying width 8-45mm
Stainless steel drum capacity: 150KG*2
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 5

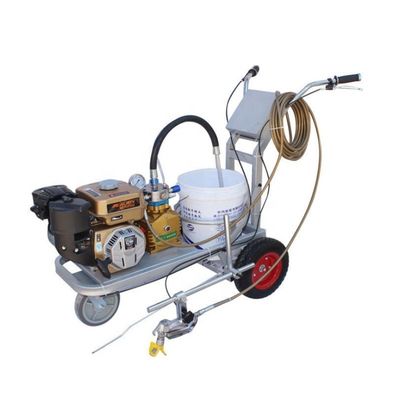

Two-component hand push road marking machine
The machine is A road marking machine with external mixture of A and B components. The two sets of hydraulic cylinders are mechanically controlled automatic reversing devices, whose working frequency is automatically adjusted according to the flow rate of the spray gun. Adopting imported variable pump, the pressure is more stable than gear pump, the line is more neat, with the characteristics of flexible operation, even mixing, smooth walking.
Technical parameters:
Engine: Honda 5.5-HP gasoline engine
Hydraulic drive: Plunger variable pump
Maximum flow: 8L/min
Maximum pressure: 20Mpa
Working pressure: 15Mpa
Double paint bucket: A, B two components are independent, to avoid mixing and solidification in the bucket
Nozzle: Column rotary nozzle
Spraying width: 8-45cm
Airbrush: Double airbrush (two components A and B)
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 6
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 7

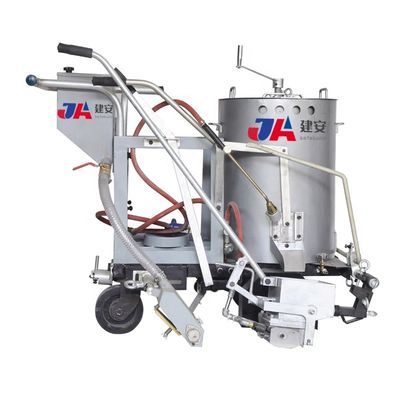

Hot melt push road marking machine
Luxury type, double layer stainless steel insulated bucket, save fuel;
Cemented carbide floor knife can prolong service life and the coating thickness can be adjusted freely.
High temperature resistant soft rubber wheel, durable, smooth walking;
The machine has the characteristics of simple structure, flexible operation, free closing, even coating and neat marking
High construction quality, durable equipment, saving maintenance costs.
Technical parameters:
Paint bucket capacity: 125KG
Heating method: LPG
Line width: 100, 150, 200, 300, 400, 450mm
Coating thickness: 1.5-4mm adjustable
Edge knife material: hard alloy
Bead spreader: automatic glass bead spreader
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 8
Hydraulic double cylinder hot melt kettle
The equipment can meet the yellow and white paint construction, with high efficiency, good heat preservation, fuel saving, easy to operate, save maintenance costs and other characteristics
Technical parameters:
Engine: 15HP diesel engine
Motor: Hydraulic motor
Hydraulic oil tank capacity: 90L
Stirring: stepless speed regulation, positive and negative rotation
Paint bucket capacity: 600KG*2
Burner: Direct injection burner with high efficiency
Fuel: LPG/diesel
Bottom of kettle: Thickened flat bottom
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 9
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 10

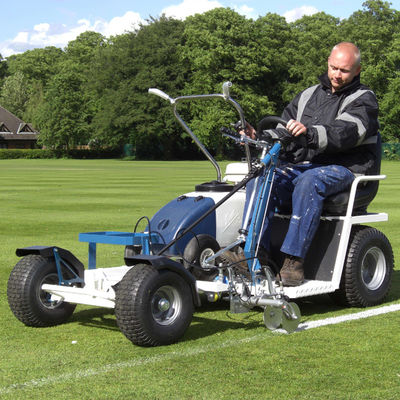

Self-propelled oscillating road marking machine
Microcomputer automatic control, easy to operate The drive adopts American hydraulic system, which can travel forward and backward with infinitely variable speed Hopper specifications optional, flexible construction
Simple operation, free closing, neat marking, uniform coating, low labor intensity
Technical parameters:
Engine: Honda 5.5-HP gasoline engine
Walking system: Imported hydraulic system
Linewidth: 150/200/300/400/450mm
Coating thickness: 1.5-4mm adjustable
Raised height: 0-7mm adjustable
Stainless steel drum: 125kg
Heating method: LPG
Edge knife material: hard alloy
Company Profile
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 11
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 12
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 13
Thermoplastic Paint Material Hot Melt Road Marking Machine With Gear Core Components 14
FAQ
Q:Can i get a sample before bulk order ? how can i get it ?
A:Sample is free ,but freight collect. You may tell us your express account No. Also you could prepay the freight cost by Western union, we will send out sample asap once getting your payment.

Q:Can you do customers’ styles?
A:Yes ,just send us the drawing ,then we could open a new mould for you to produce it as your request.

Q:Is this retail product?
A:sorry , it is wholesale product .

Q:Can we visit your factory ?
A:Certainly.welcome your visit.

Q: How to ensure the cargo quality?
A:We will supply bulk sample before shipping.They can represent the cargo quality.
